Page 83
724-746-5500 | blackbox.com
Chapter 4: Configuration
NOTE: If the “Enable CPU Selection” option is activated in the Configuration
menu, the list of computers that can be selected will be opened. To skip
this list, press <F7>.
Leaving OSD
• Press the <Esc> key in the main menu, or simultaneously press <Left-Shift> +
<Esc> anywhere within the OSD. The OSD will close without any further
changes and the currently active CPU connection will display.
Menu Structure

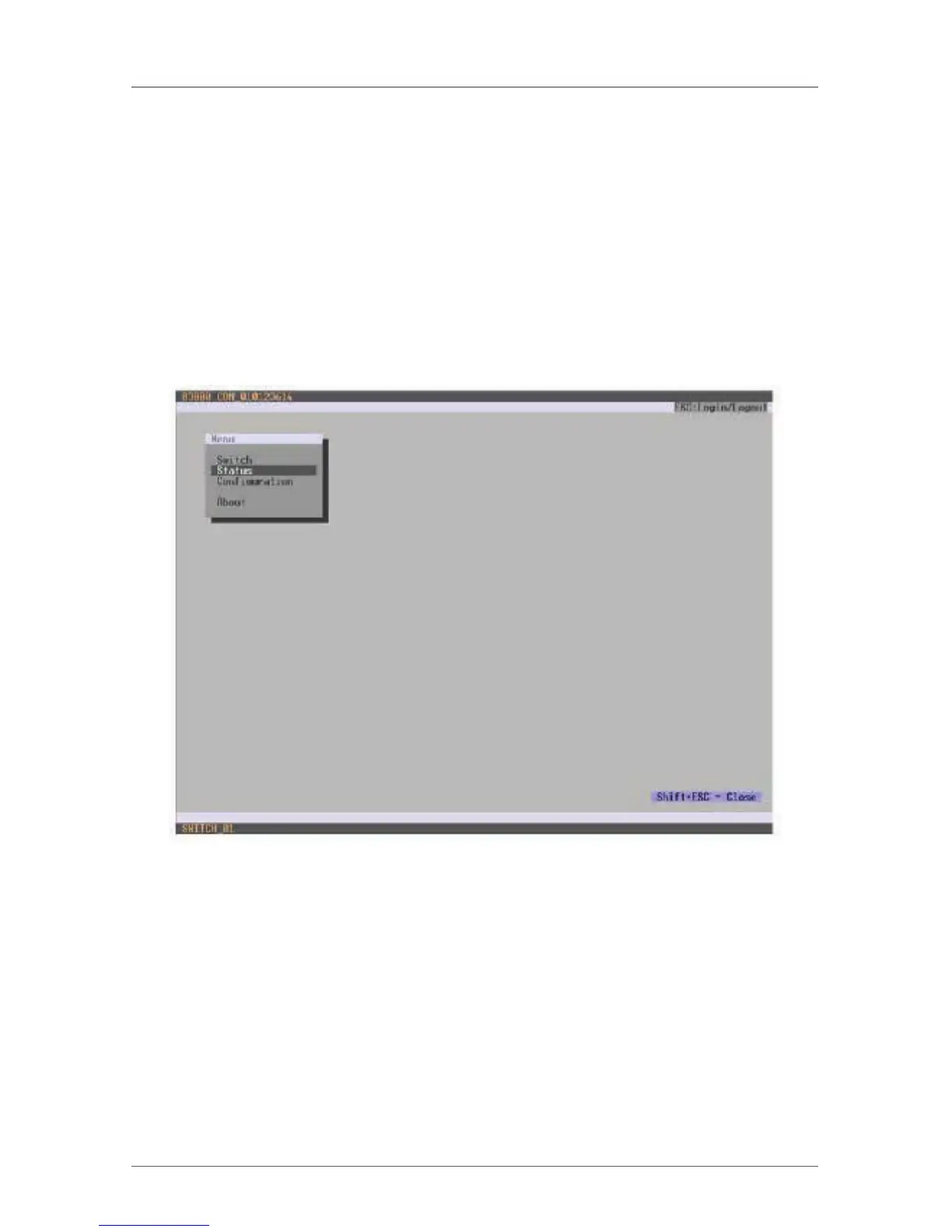

Figure 4-2. Menu structure.
The general layout of the OSD is structured into three areas:
• Upper status area (top-most two text lines)
• Working area
• Lower status area (lowest two text lines)
