Blackmagicdesign Blackmagic Studio Camera Operation Manual

Getting Started
6
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU

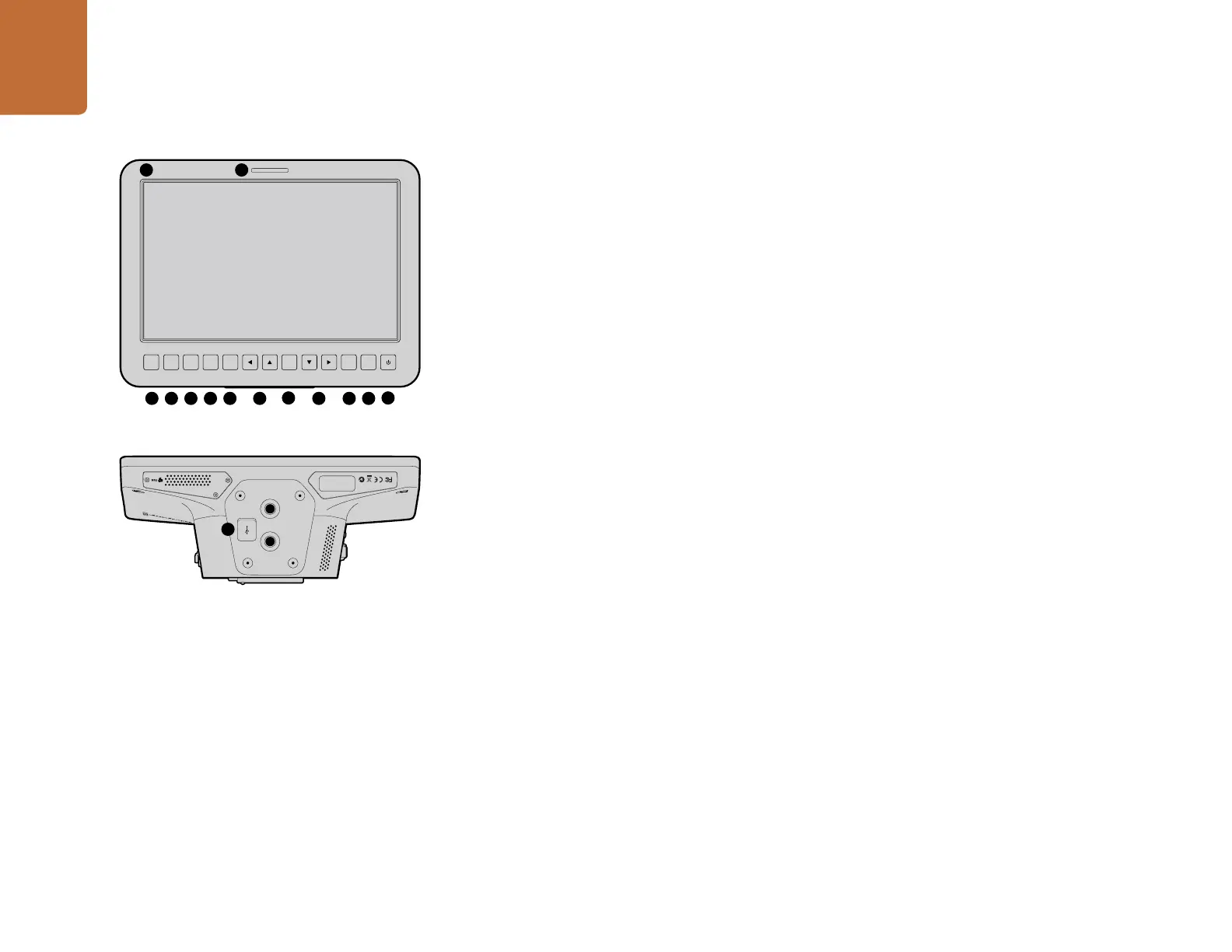

11. 10" LCD
Monitor live camera output or program output, or view the menu. See page 12.
12. REAR TALLY LIGHT
When lit it indicates to the camera operator that their camera is currently "live".
13. FOCUS BUTTON
Press once to auto focus or twice to display focus peaking on the LCD. See page 14.
14. IRIS BUTTON
Press once for auto exposure. See page 14.
15. PUSH TO TALK BUTTON (PTT)
Press and HOLD to talk. Press twice in quick succession for hands free communication. Press again to
revert to the default behavior. See page 15.
16. PROGRAM (PGM) BUTTON
Press to toggle between live camera output and program output from a switcher control room. See page 15.
17. LOOK UP TABLE (LUT) BUTTON
Currently not implemented.
18. MENU NAVIGATION BUTTONS
Navigate the menu on the LCD. See page 15.
19. SET BUTTON
Use this button to confirm your menu selections. See page 15.
20. DISPLAY BUTTON
Press this button to toggle overlays on and off. See page 15.
21. MENU BUTTON
Access the menu on the LCD. See page 15.
22. POWER BUTTON
Press the power button to turn on the Blackmagic Studio Camera. Press and hold the button to turn the
camera off. See pages 7 and 15.
23. USB CONNECTOR
USB Mini-B port for camera firmware updates. See page 17.
11 12
13 14 15 16 17 18
19
212018
22
23
