Blackmagicdesign Blackmagic Studio Camera Operation Manual

Getting Started
5
Introducing Blackmagic Studio Camera

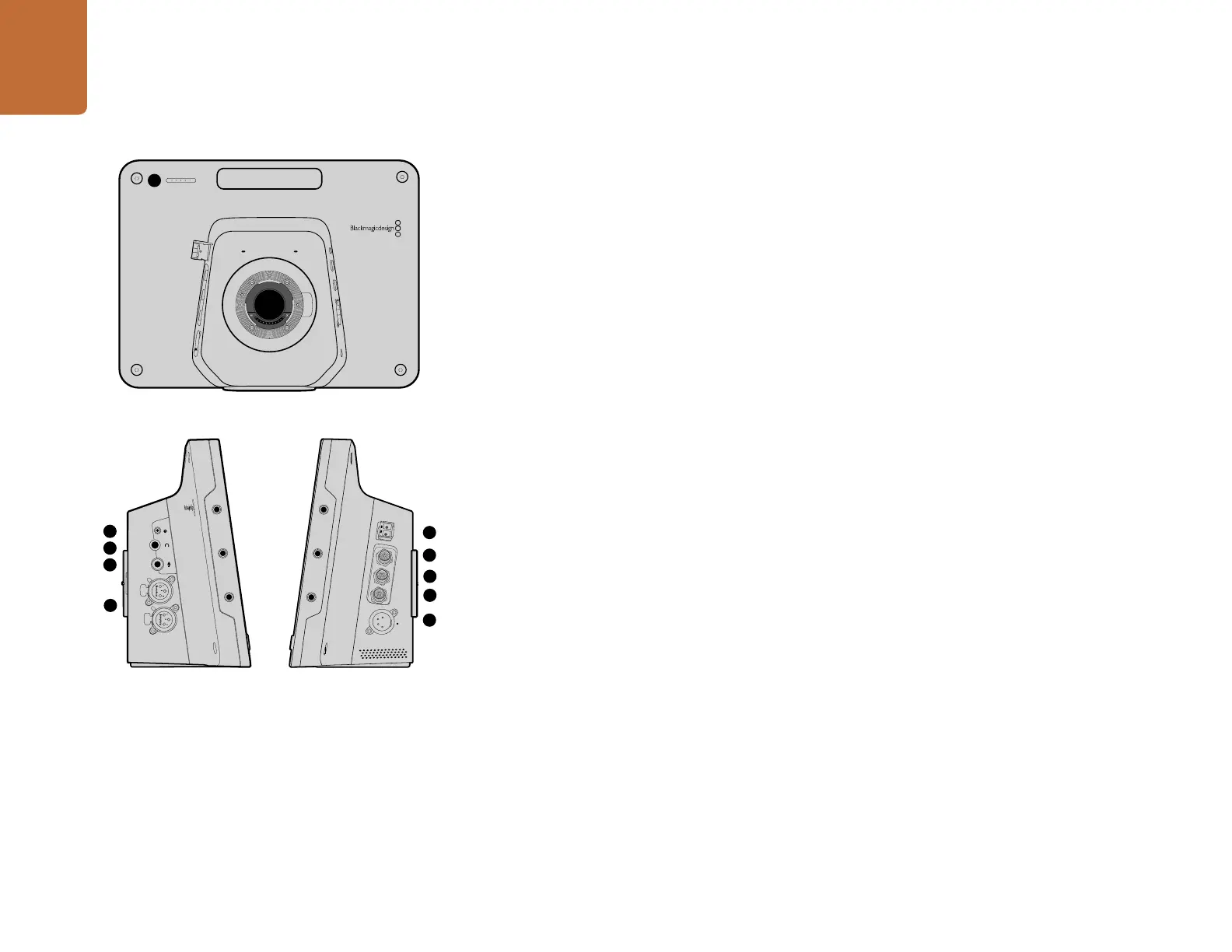

Features
1. FRONT TALLY LIGHT
Indicates to the on-air talent which camera is currently "live". See page 12.
2. LANC REMOTE
2.5mm stereo jack for LANC remote control supports iris, zoom and focus control. See page 8.
3. AVIATION HEADPHONES
0.25" TRS connector for monitoring PGM and control room audio with aviation style headsets. See page 8.
4. HEADPHONES MICROPHONE INPUT
0.206" TRS connector for talking to the control room with aviation style headsets. See page 8.
5. AUDIO INPUTS
2 x 1/4" balanced XLR connectors for audio input. See page 8.
6. OPTICAL INPUT/OUTPUT
Optical input and output allows cable runs of up to 28 miles. See page 9.
7. SDI OUT
SDI output for connecting to a switcher or other device. See page 9.
8. SDI IN
SDI input allows the camera operator to view the Program (PGM) output. See page 9.
9. REFERENCE INPUT
Allows multiple cameras to be genlocked to a blackburst or tri-level reference signal. See page 9.
10. POWER
12 – 24V power input for power supply and battery charging. See page 9.
Getting Started
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
1
2
4
5
6
7
8
10
9
3
1
PUSH
2
PUSH
FOCUS
SDI OUT
OPTICA
L OUT
OPTICAL IN
SDI IN
REF
12V
IRIS PTT PGM LUT SET DISPLAY MENU
