Blade 550X - Frame Assembly Continuation; Step F3: Main Shaft and Canopy Mounts; Step F4: Landing Gear Attachment

8
EN

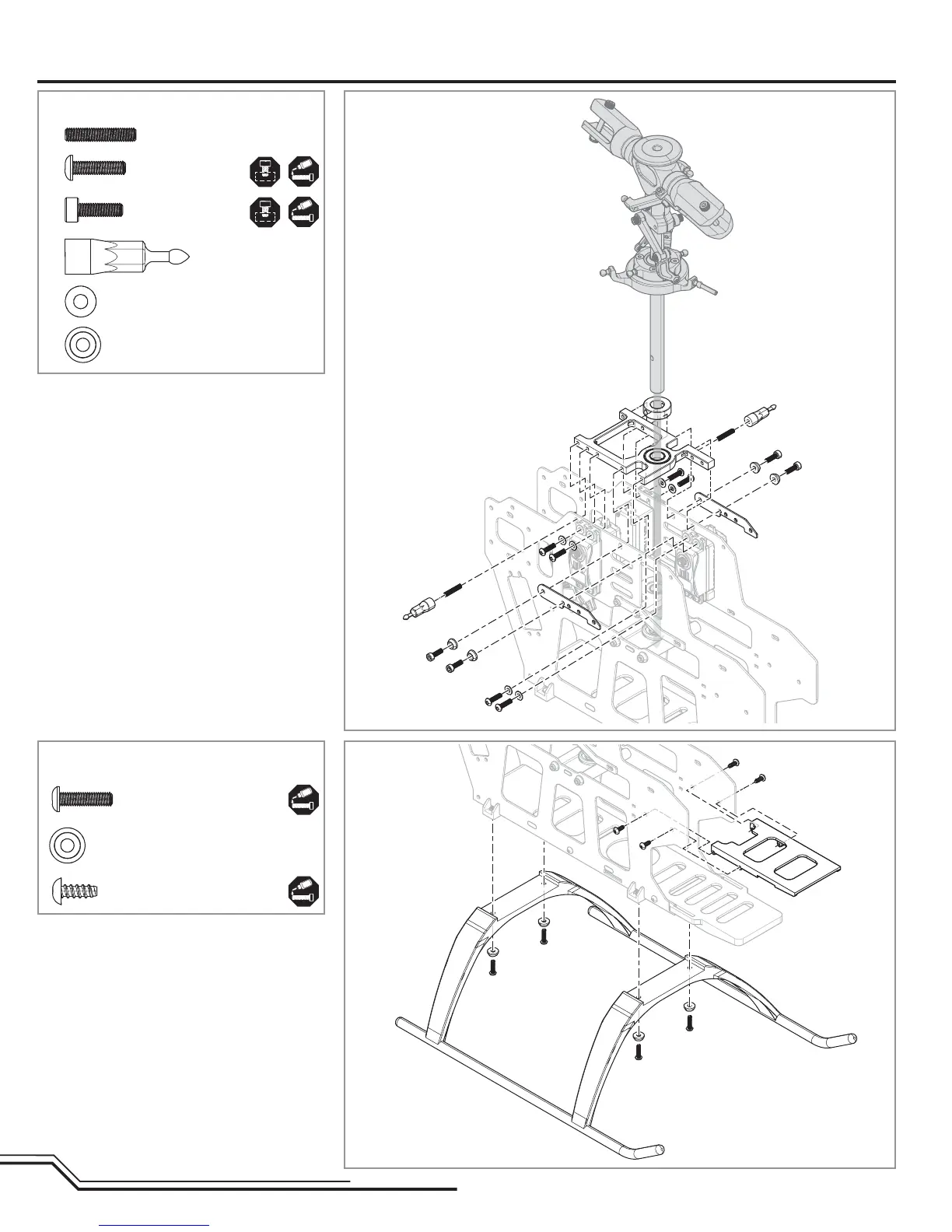

Frame Assembly cont’d
Step F3
Step F4
• Slide the mainshaft into position, then tighten all the
frame and servo screws.
Step F3 parts (bags F3 and F5)
Step F4 parts (bag F3)
Setscrew
M3 X 11 (x2)
Button head screw
M3 X 12 (x6)
Cap head bolt
M3 X 10 (x4)
Canopy
mounting post (x2)
M3 Washer (x6)
M3 Recessed
washer (x4)
Button head screw
M3 X 12 (x4)
M3 Recessed washer (x6)
Self tapping screw
M3 X 8 (x4)
A
A
A
A
B
B
B
