Blade 550X - Frame Assembly Continuation; Step F5: Main Rotor Hub and Hub Assembly; Step F6: Pinion Gear Mounting

9
EN

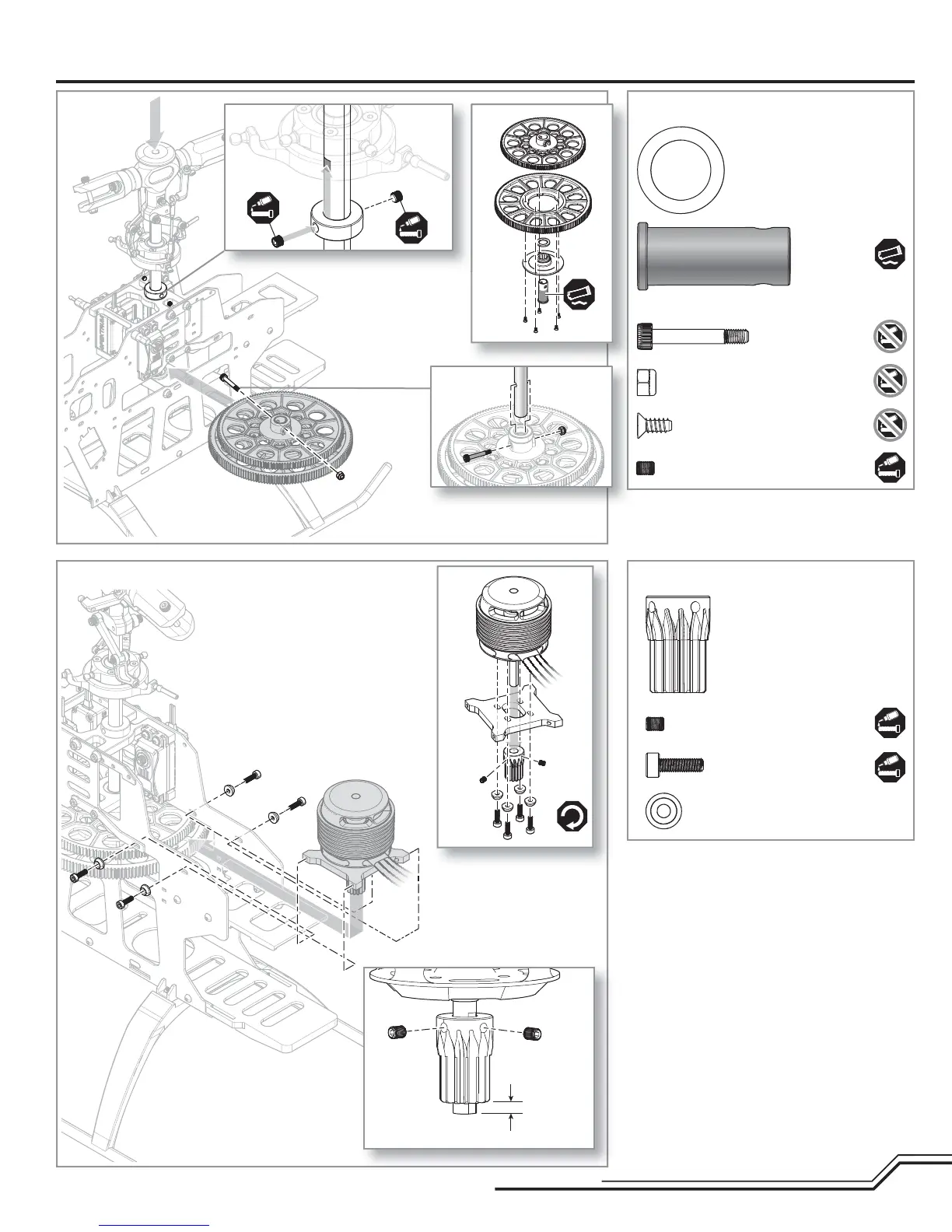

Frame Assembly cont’d
Step F6 parts (bag F6)
Step F5 parts (bag M1)
6mm, 14 tooth pinion gear
Setscrew M3 X 4 (x2)
Cap head bolt M3 X 10 (x8)
M3 Recessed washer (x8)
Washer (x1)
One way sleeve (x1)
Shoulder cap head bolt
M4 X 22
M4 Lock nut
Counter sunk self tapping
screw M3 X 8 (x5)
Setscrew M3 X 4 (x2)
Step F5
Step F6
3mm
