Web-GUI - Menu Overview

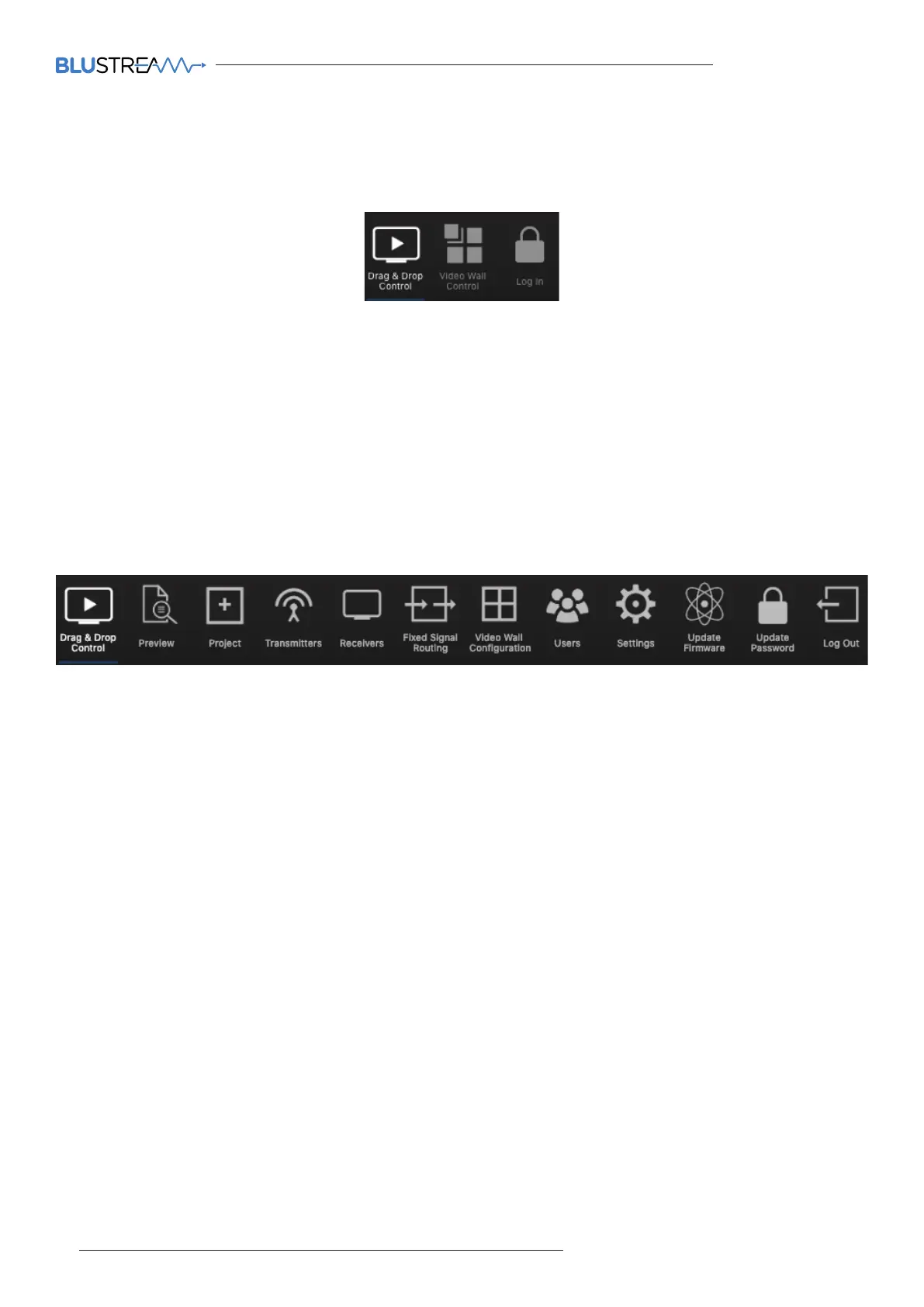

The 'User Interface' menu gives an end user the ability to switch and preview the Multicast system without
allowing access to any settings that can change the overall infrastructure of the system.
1. Drag & Drop Control - used for ‘Drag & Drop’ control of source selection for each Multicast Receiver including
image preview of source devices.
2. Video Wall Control - used for ‘Drag & Drop’ control of source selection for each video wall array within the
system, including image preview of source devices.
3. Preview - used to show the active video stream from any connected Multicast Transmitter or Receiver
4. Project - used to configure a new or existing Blustream Multicast system.
5. Transmitters - shows a summary of all Multicast Transmitters installed, with options for EDID management,
checking FW version, updating settings, adding new TX’s, replacing or rebooting devices.
6. Receivers - shows a summary of all Multicast Receivers installed, with options for resolution output (HDR
/ scaling), function (video wall mode / matrix), updating settings, adding new RX’s, replacing or rebooting
devices.
7. Fixed Signal Routing - used for signal routing allowing independent routing of IR, RS-232, USB / KVM, CEC,
Audio and Video signals.
8. Video Wall Configuration - used for the set-up and configuration of Multicast receivers to create a video wall
array of up to a size of 9x9, including: bezel / gap compensation, stretch / fit, and rotation.
9. Users - used to set-up or manage users of the system.
10. Settings - access to various system settings including: network and resetting devices.
11. Update Devices - used for applying the latest firmware updates to the ACM200 and connected Blustream
Multicast Transmiters and Receivers.
12. Update Password - used to update the Administrator password for access to the ACM200 web-GUI.
13. Log Out - log out the current User / Administrator.
1. Drag & Drop Control - used for ‘Drag & Drop’ control of source selection for each Multicast Receiver including
image preview of source devices throughout.
2. Video Wall Control - used for ‘Drag & Drop’ control of source selection for each video wall array within the
system, including image preview of source devices throughout. This icon will only display if there are video
walls configured in the project.
3. Log In - used to log into the system as a User or Administrator
The Administrator menu is accessed from a single password (see page 08 to log in). This menu allows to the
Multicast system to be completely configured with access to all settings and features of the system.
Please note: it is not recommended to leave Administrator access or the Administrator password with an end user.
