ACM200 USER MANUAL
05contact support@blustream.co.uk / support@blustream.com.au

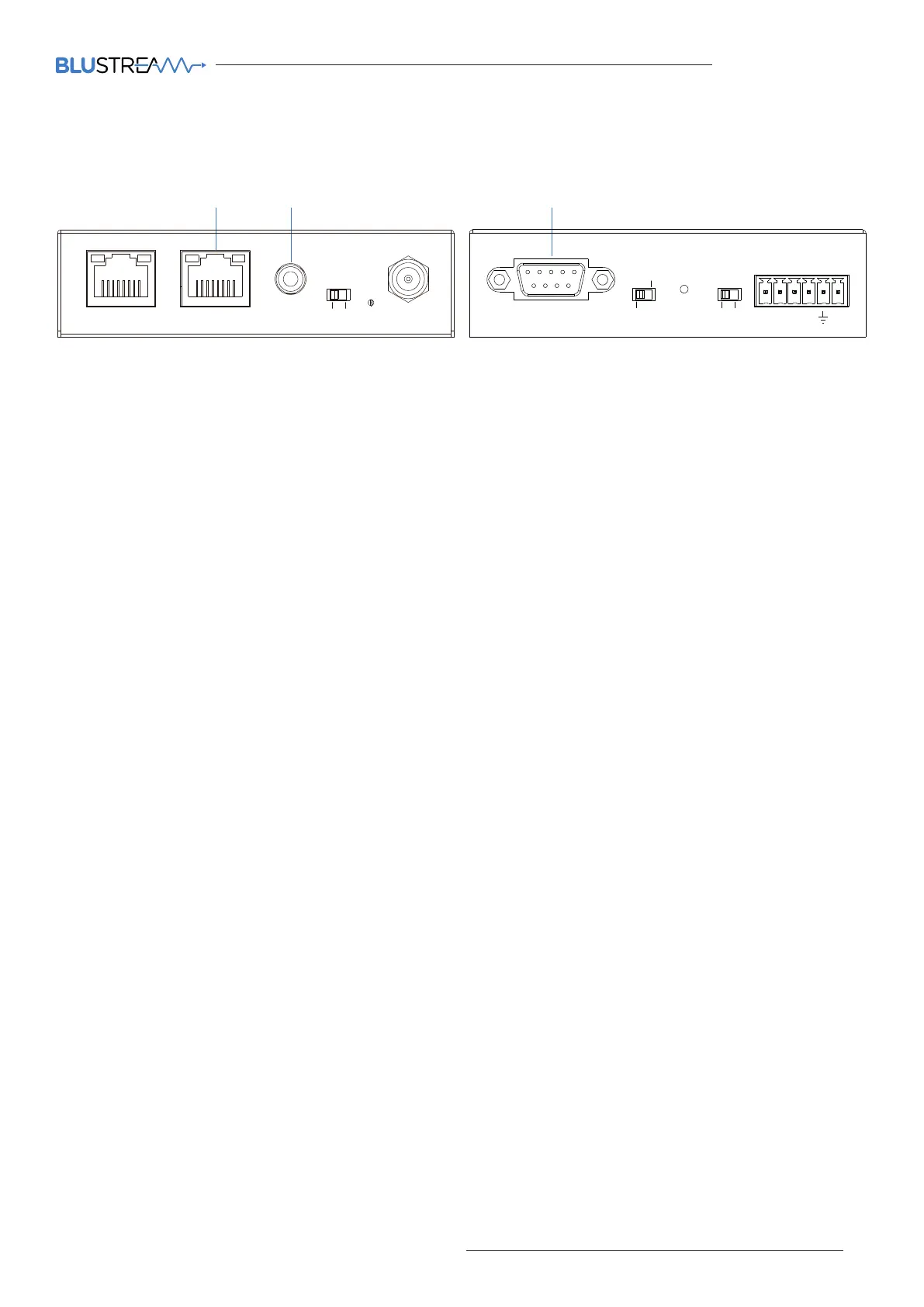

The ACM200 communication ports are located on both end panels and include the following connections:
Connections:
A. TCP/IP – for full Multicast system control (RJ45 Connector)
B. Infrared (IR) Input* - for Multicast switching control only (3.5mm stereo jack)
C. RS-232 – for full Multicast system control / RS-232 guest mode (DB9)
* Please note: the ACM200 can be used with both 5V and 12V IR systems. Please ensure that the IR switch (adjacent
to the IR port) is correctly selected to the specification of the IR input voltage required.
TCP/IP:
The Blustream ACM200 can be controlled via TCP/IP.
For the full list of protocols please see ‘RS-232 & Telnet Commands’ located at the rear of this manual.
A ‘straight-through’ RJ45 patch lead should be used when connected to a network switch.
Control Port: 23
Default IP: 192.168.0.225
Default Username: admin
Default Password: 1 2 3 4
RS-232:
The Blustream ACM200 can be controlled via serial using the serial DB9 connector. Default settings below:
For the full list of command protocols please see ‘RS-232 & Telnet Commands’ located at towards rear of this
manual.
Baud Rate: 57600
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
The Baudrate for the ACM200 can be adjusted using the ACM200 built-in web-GUI, or by issuing the following
command via RS-232 or Telnet:
RSB x : Set RS-232 Baud Rate to X bps
Where X = 0 : 115200
1 : 57600
2 : 38400
3 : 19200
4 : 9600
