ACM200 USER MANUAL
37contact support@blustream.co.uk / support@blustream.com.au
Web-GUI - Settings - continued...

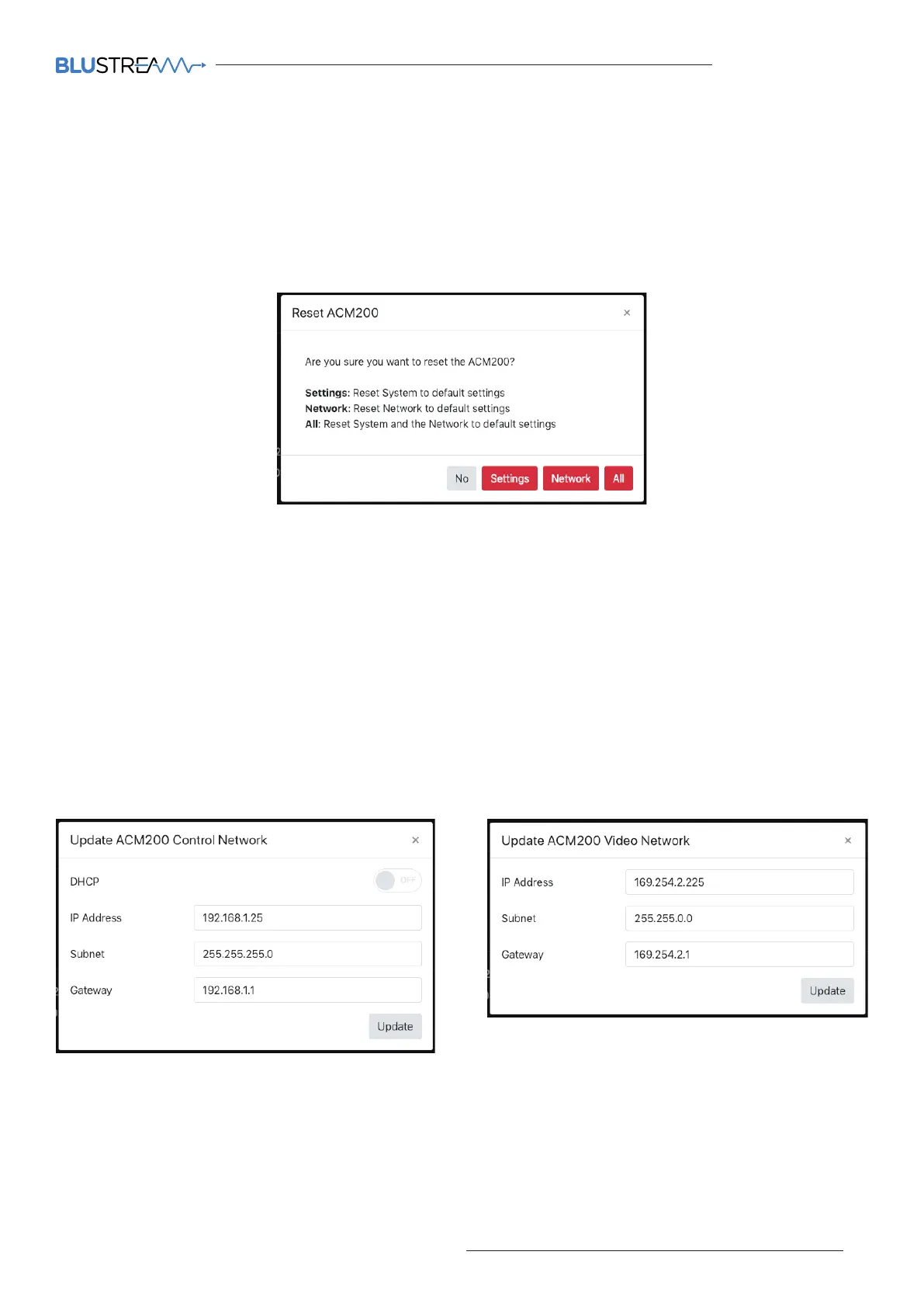

The 'Reset ACM200' option allows for the following:
1. Reset System to factory default (excludes Network settings)
2. Reset Network to default settings (excludes System settings)
3. Reset ALL System and Network settings back to factory default
Under general settings, the 'Update' option allows for the following:
1. Turn On / O IR control to enable / disable the IR input of the ACM200 from accepting IR commands from a third
party control solution.
2. Update the Telnet port number that the Control port of the ACM200 communicates through. The default port
number used is port 23 which will be used for all oicial Blustream third party control drivers.
3. Update the RS-232 Baud Rate of the DB9 connection of the ACM200 to suit a third party control processor. The
default Baud Rate used is: 57600.
The IP addresses of the two RJ45 ports on the ACM200 can be updated with individual IP, Subnet and Gateway
addresses. Use the 'Update' button for either the Control Network or Video Network to update the information for
the ports required. The Control Port can be set to DHCP by selecting 'On':
IMPORTANT: Amending the Video Network IP Address out of the 169.254.x.x range will stop communication
between the ACM200 and the Multicast Transmitters and Receivers that have been pre-configured.
