ACM200 USER MANUAL
19contact support@blustream.co.uk / support@blustream.com.au

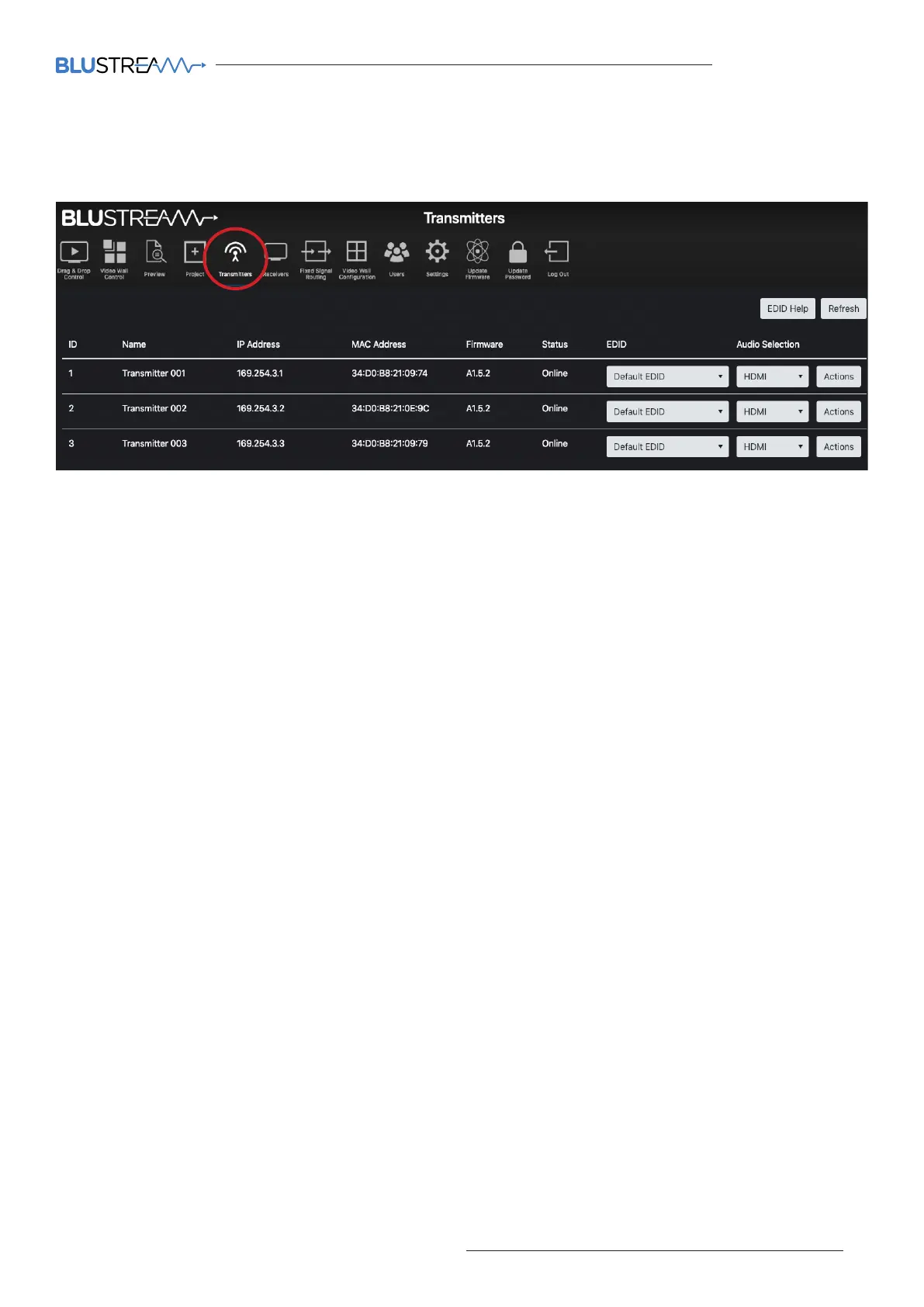

Web-GUI - Transmitters
The Transmitter summary page is an overview of all Transmitter devices that have been configured within the
system, with the ability to update the system as required.
Features of the Transmitter summary page include:
1. ID / Input - the ID / Input number is used for control of the Multicast system when using third party drivers.
2. Name - the name of the Transmitter (typically the device attached to the Transmitter).
3. IP Address - the IP address assigned to the Transmitter during configuration.
4. MAC Address - shows the unique MAC address of the Transmitter.
5. Firmware - displays the firmware version currently loaded onto the Transmitter. For more information on
firmware updating, please see 'Update Devices' on page 37.
6. Status - shows the online / oline status of each Transmitter. Should a device show as 'Oline', check the units
connectivity to the network switch.
7. EDID - fix the EDID value for each Transmitter (source). This is used to request specific video and audio
resolutions for the source device to output. Basic help can be obtained on EDID selection by clicking the button
at the top of the page marked 'EDID Help'. For further help on EDID settings, see page 21. EDID selections as
follows:
- Default EDID - the default EDID is for the Transmitter to request a 1080p / 2ch signal from the source device
- 1080i @ 60Hz 2ch - 4K2K 4:2:0 2ch
- 1080i @ 60Hz 5.1ch - 4K2K 4:2:0 5.1ch
- 1080i @ 60Hz 7.1ch - 4K2K 4:2:0 7.1ch
- 1080p @ 60Hz 2ch - 4K2K 4:4:4 2ch
- 1080p @ 60Hz 5.1ch - 4K2K 4:4:4 5.1ch
- 1080p @ 60Hz 7.1ch - 4K2K 4:4:4 7.1ch
- 1080p @ 60Hz / 3D 2ch - DVI 1280 x 1024 @ 60Hz (no audio)
- 1080p @ 60Hz / 3D 5.1ch - DVI 1920 x 1080 @ 60Hz (no audio)
- 1080p @ 60Hz / 3D 7.1ch - DVI 1920 x 1200 @ 60Hz (no audio)
8. Audio Selection - selects either original HDMI audio, or replaces the embedded audio with a local analogue
audio input on the Transmitter. Default setting will be ‘Auto’. Please note: in 'Auto' mode the audio will be
switched to the local analogue audio input of the Transmitter when the 3.5mm audio jack is inserted. This will
only revert back to HDMI audio when the 3.5mm audio jack is removed.
9. Actions - opens a pop-up window with advanced configuration settings. See following page for further
information.
10. Refresh - refresh all current information on the devices within the system.
