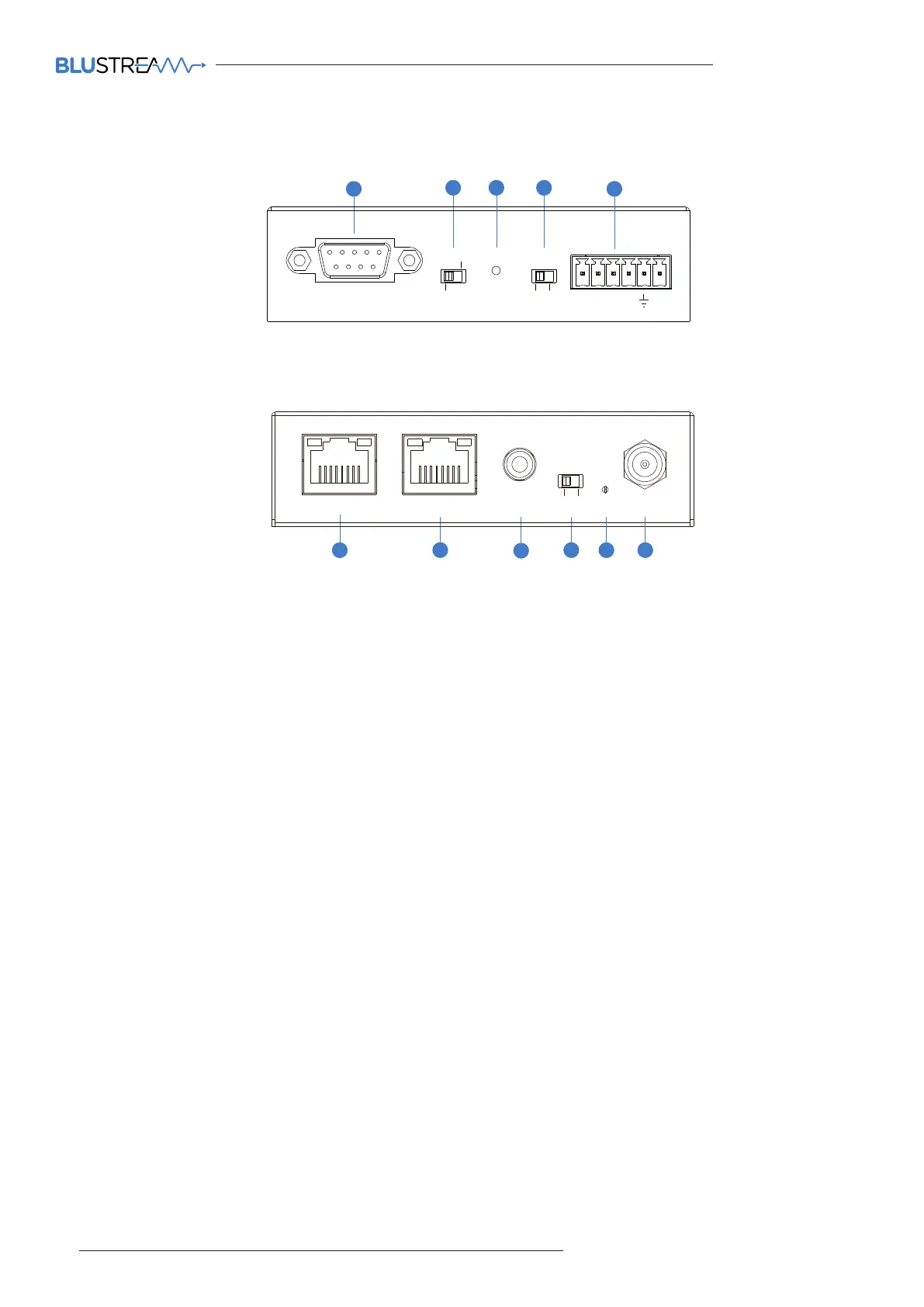

ACM200 - Front Panel
2
1
4
9
8
7
6
1 RS-232 Control Port – connect to a third party
control device for control of the Multicast system
using RS-232.
2 MCU Upgrade Switch - use when upgrading MCU
firmware only. Leave in normal position for
standard operation.
3 Reset Switch - short press resets the ACM200, long
press (10 seconds) factory defaults the ACM200.
4 IO Level Switch - reserved for future use.
5 IO Level Phoenix Connector - reserved for future
use.
6 Video LAN (PoE) Port - connect to the network
switch that the Blustream Multicast components
are connected to.
7 Control LAN Port - connect to existing network
that a third party control system resides on. The
Control LAN port is used for Telnet/IP control of the
Multicast system. Not PoE.
8 IR Ctrl (IR Input) – 3.5mm stereo jack. Connect to
third party control system if using IR as the chosen
method of controlling the Multicast system. When
using the included 3.5mm stereo to mono cable,
ensure the cable direction is correct.
9 IR Switch - adjust IR input voltage level between 5V
or 12V input for IR Ctrl.
q Power LED Indicator - LED is on when the device is
powered on.
w Power Port – use 12V 1A DC adaptor (sold
separately) if not using a PoE network switch.
ACM200 - Rear Panel
Panel Descriptions - ACM200
Video LAN(PoE)
Control LAN
IR Ctrl
IR
5V
12V
DC 12V
Power
Link Link
PoE
IO Level
Reset
VOut
IO4
IO3
IO2
IO1
5V Normal
RS-232
MCU
12V
ACM200
Yellow Green Yellow Green
5
Video LAN(PoE)
Control LAN
IR Ctrl
IR
5V
12V
DC 12V
Power
Link Link
PoE
IO Level
Reset
VOut
IO4
IO3
IO2
IO1
5V Normal
RS-232
MCU
12V
ACM200
Yellow Green Yellow Green
11
3
10
