4. Denote where all the cables are plugged into the logic board. Gently unplug the cables from
logic board.

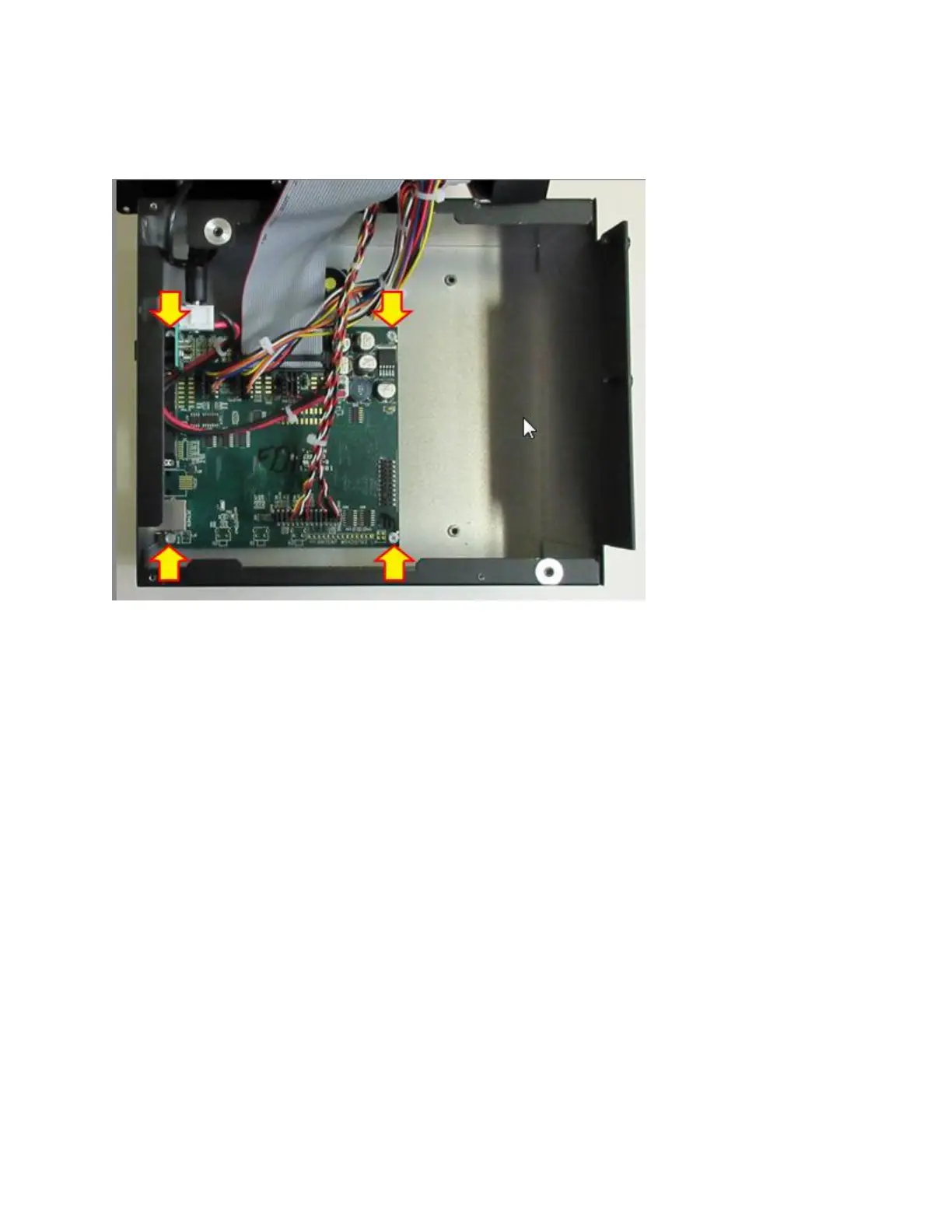

5. Remove four 3/16 hex head screws shown in the below photo.
6. Gently remove logic board from cabinet.
7. Install the board by reversing the above steps.
