3.1 General notes
If you are not yet familiar with the control and dis-
play elements on this machine you should read
this section thoroughly before starting any opera-
tion on the machine. Here all functions are de-
scribed in detail.
Section 4 "Operation" contains only brief descrip-
tions of the individual control steps.
3.2 Description of indicators
and control elements

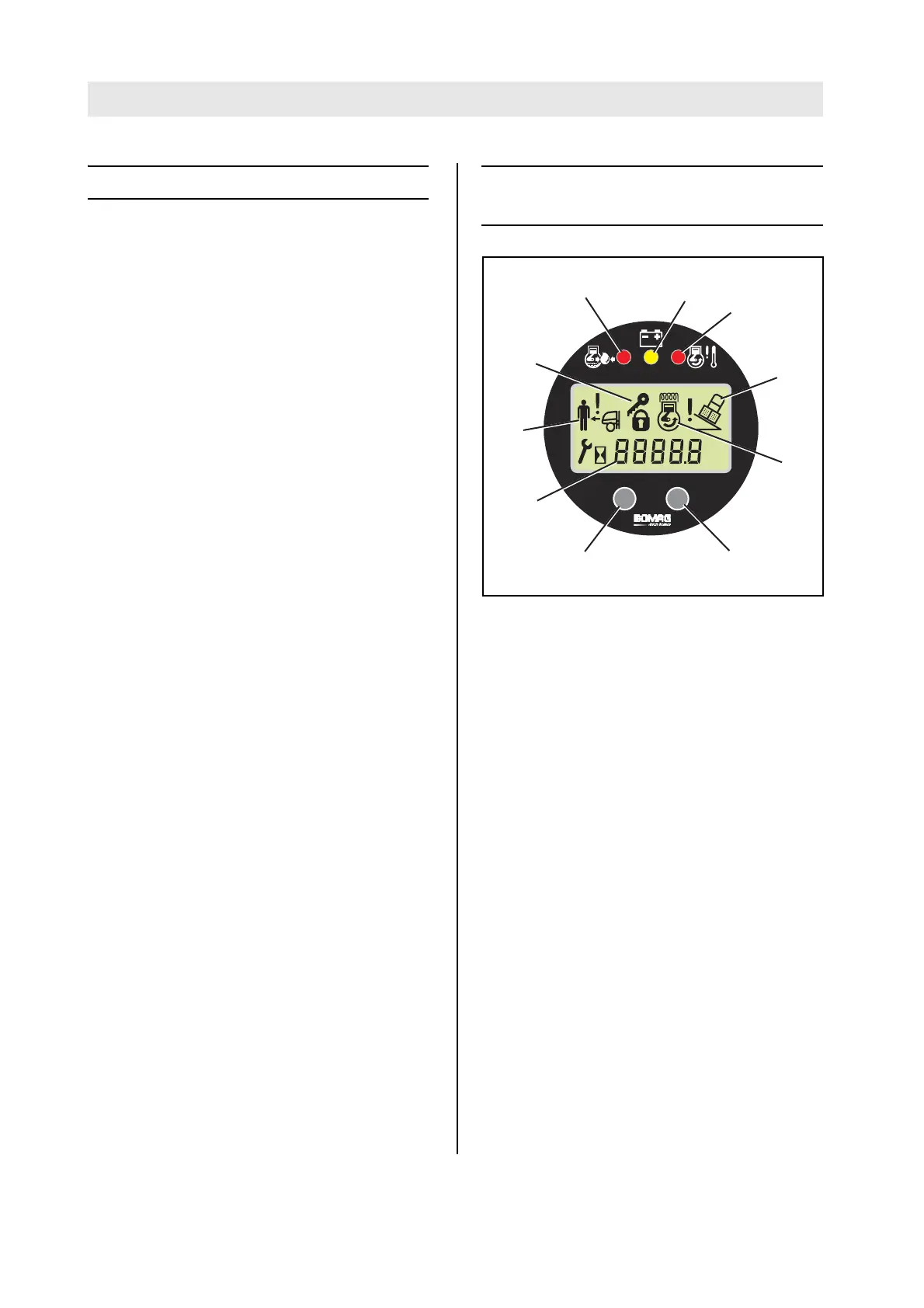

Fig. 11
No. 1 = Display module
a red = Engine oil pressure warning lamp
Lights if the engine oil pressure is too
low
Check engine oil level, repair the en-
gine if necessary.
b yellow = Charge control lamp
Lights if the battery is not being
charged.
Check the V-belt, if necessary repair
the generator.
c red = Coolant temperature warning light
Lights red if the temperature of the
engine coolant is too high
d = Tipping angle warning indicator
Lights when the tipping angle of the
machine has reached > 45° in lateral
direction or > 60° in travel direction.
The machine will stop, vibration is
shut down.
Restart the machine and move it
carefully out of the danger area.
e = Preheating control
Preheating for starting at low temper-
atures.
