4.17 Assembling/removing the
drum extension
Assembly

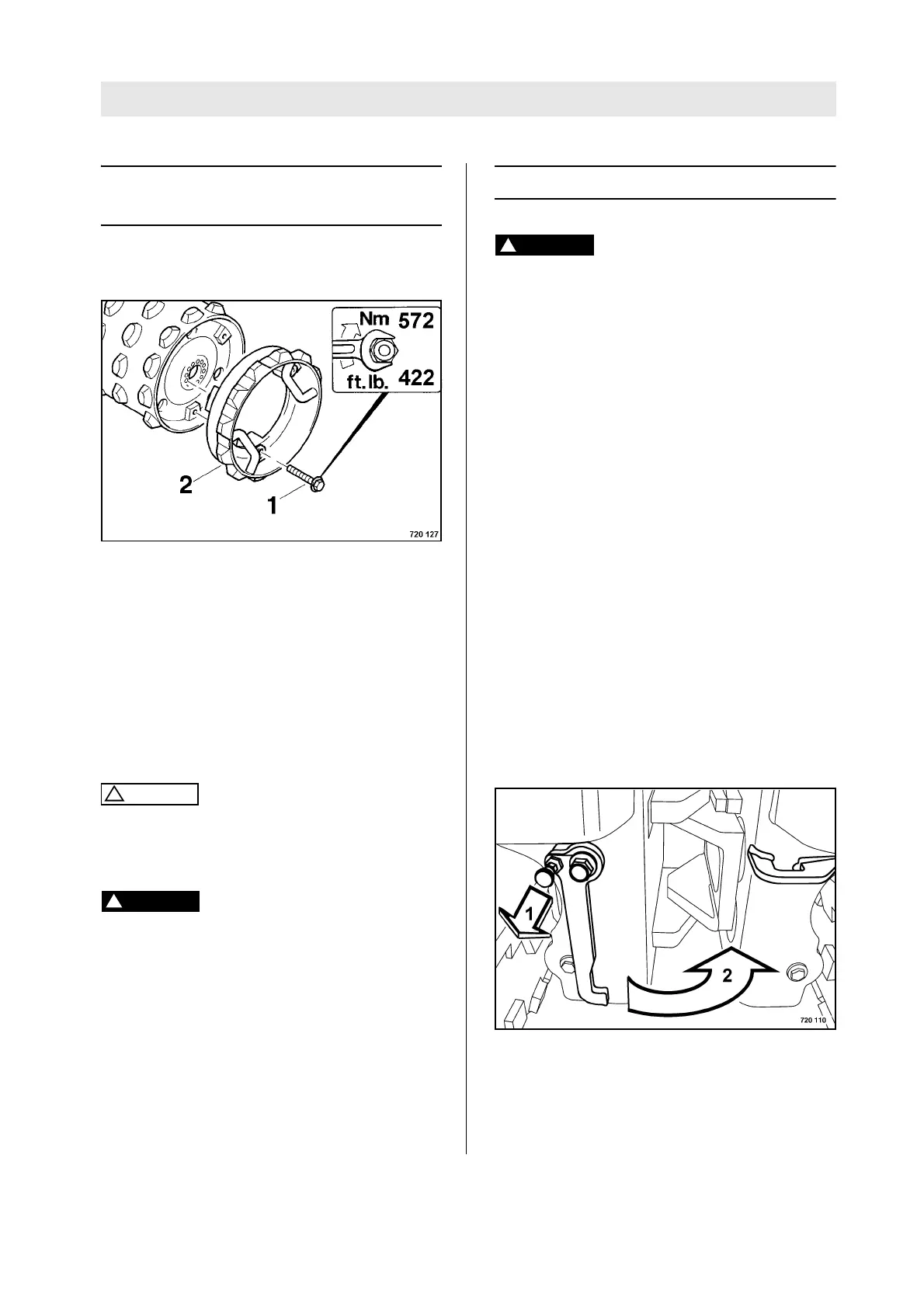

Fig. 84
l Attach drum extensions 2 (Fig. 84) to the
drums, turn three fastening screws (1) into
each drum and tighten.
Removal
l Unscrew the fastening screws and take off the
drum extensions.
l Turn the fastening screws back into the drum
and fasten.
In order to protect the threads turn the fasten-
ing screws into the drums, even after removing
the drum extensions.
Danger of turning over!
When using drums with a working width of 610
mm the second speed range must not be
switched on.
4.18 Loading and transport
Danger of accident! Life hazard!
Use only stable loading ramps of sufficient
load bearing capacity. The ramp inclination
must be less than the gradability of the ma-
chine.
Make sure that persons are not endangered by
the machine tipping or sliding off.
Always engage the articulation lock before
loading, lifting and transporting the machine.
Use only safe lifting gear of sufficient load
bearing capacity Minimum lifting capacity of
lifting gear: see operating weight in chapter
"Technical Data".
For lifting the machine attach the lifting gear
only to the lifting eye provided for this pur-
pose.
Check lifting eye for damage before use. Do
not use a damaged or in any other way im-
paired lifting eye.
The machine must not swing about when be-
ing lifted.
Do not step or stand under suspended loads.
Lash the machine down, so that it is secured
against rolling, sliding and turning over.
Fig. 85
l After driving the machine on the transport ve-
hicle pull out the locking bolt (1) (Fig. 85) and
engage the articulation lock in the locking eye
(2). Let the locking bolt click into place.
