BOMAG92 BMP 8500
5.30 Adjust the scrapers
If the scrapers (2 per drum) are worn, they must be
adjusted or replaced.

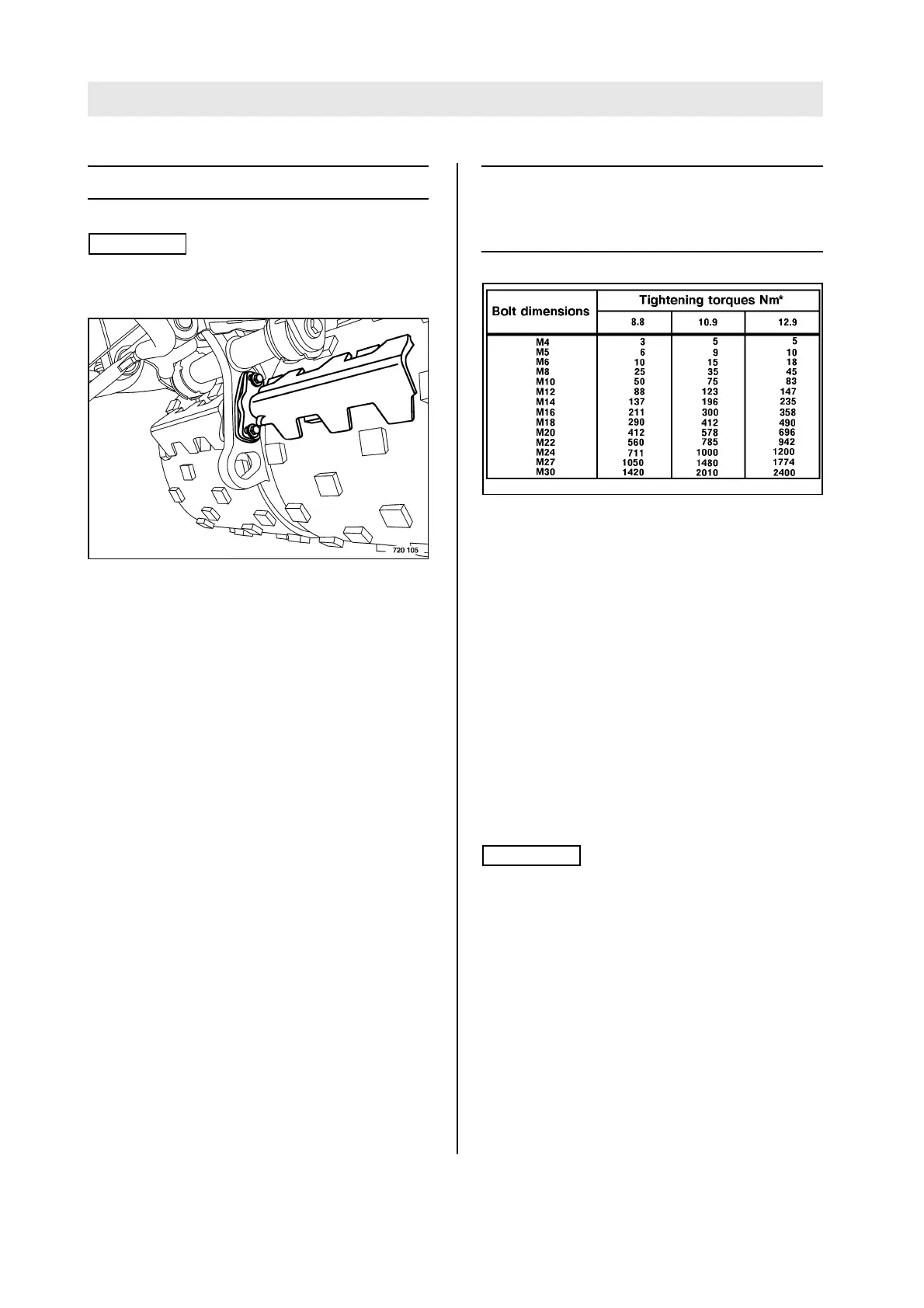

Fig. 140
l Loosen the fastening screws (Fig. 140) on
both sides of the machine.
l Adjust the scrapers to a distance of approx. 5
mm to the drum.
l Tighten the fastening screws.
5.31 Tightening torques for
screws with metric unified
thread
Fig. 141
* Strength classes for screws with untreated, non-
lubricated surface. Screw quality designations are
stamped on the screw heads.
8.8 = 8G
10.9 = 10K
12.9 = 12K
l Drum extension - drum
= 652 Nm
The values result in a 90% utilization of the
screw’s yield point at a coefficient of friction total =
0,14.Compliance with the specified tightening tor-
ques is checked with torque wrenches. When us-
ing MoS
2
lubricants the specified tightening
torques do not apply.
Self-locking nuts must always be replaced once
they have been unscrewed.
