Front panel
14 of 29
JUD408312 Rev.B JSE410920 22/07/08

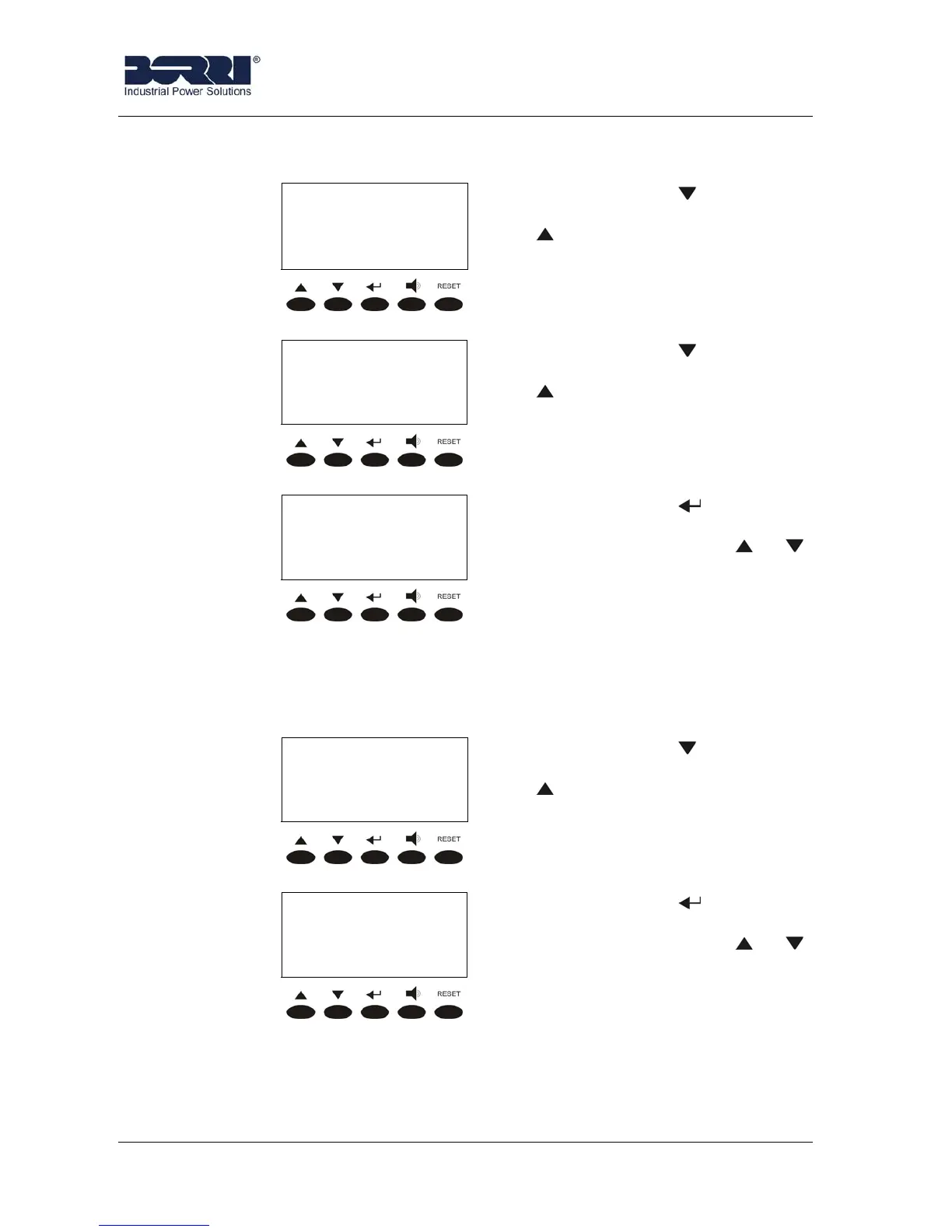

3.3.4 Inverter
INVERTER VOLT/CURR
XXX YYY ZZZ V
xx.x yy.y zz.z A
Pressing the key the following
parameter is shown, while the key
leads to the previous screen.
INVERTER FREQUENCY
XX.X Hz
Pressing the key the following
parameter is shown, while the key
leads to the previous screen.
< INVERTER >
EXIT
Pressing the key leads to the
MEASURES menu screen (see
3.3), pressing the keys or
the measures are shown again.
3.3.5 AC/DC
This menu is active only when the battery is not discharging. If the battery is in
discharge mode the menu BATTERY is automatically shown.
AC/DC VOLTAGE
POS. XXX V
NEG. YYY V
Pressing the key the following
parameter is shown, while the key
leads to the previous screen.
< AC/DC >
EXIT
Pressing the key leads to the
MEASURES menu screen (see
3.3), pressing the keys
or
the measures are shown again.
