Interfaces, Ports & Connectors
6–2
1070 073 822-104 (02.06) GB
. Mouse and keyboard may be connected only if there is neither mouse
nor keyboard connected to the BF2xxT/BF3xxT control panel.

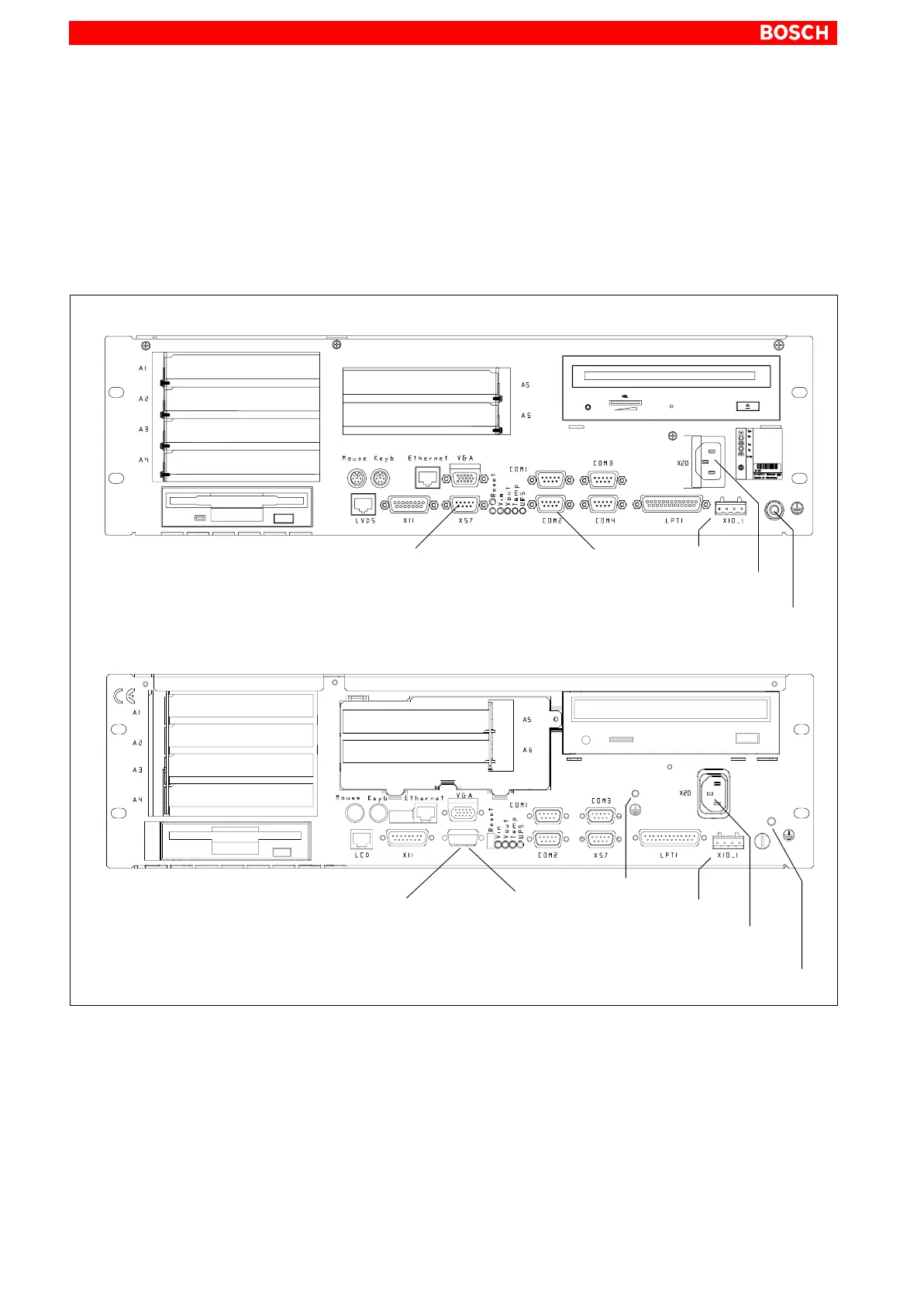

Port and connector layout
All externally accessed connectors are located on the front panel. All con-
nectors are clearly labelled.
In addition, in the IPC300 DIP switches S1 and S3 provide external access.
24 VDC
IPC
IPC300
X57 (COM2 RS-485/422) COM2 (RS-232)
PE lug
S1 S3
230/115 VAC
(on 230/115 V version)
DIP switch for
display resolution
(see page 6–14)
COM1 / X57 switch-
over, and connecting
COM3 with X11
(see page 6–18)
24 VDC
PE lug (M6)
230/115 VAC
(on 230/115 V version)
PE lug (M5)
