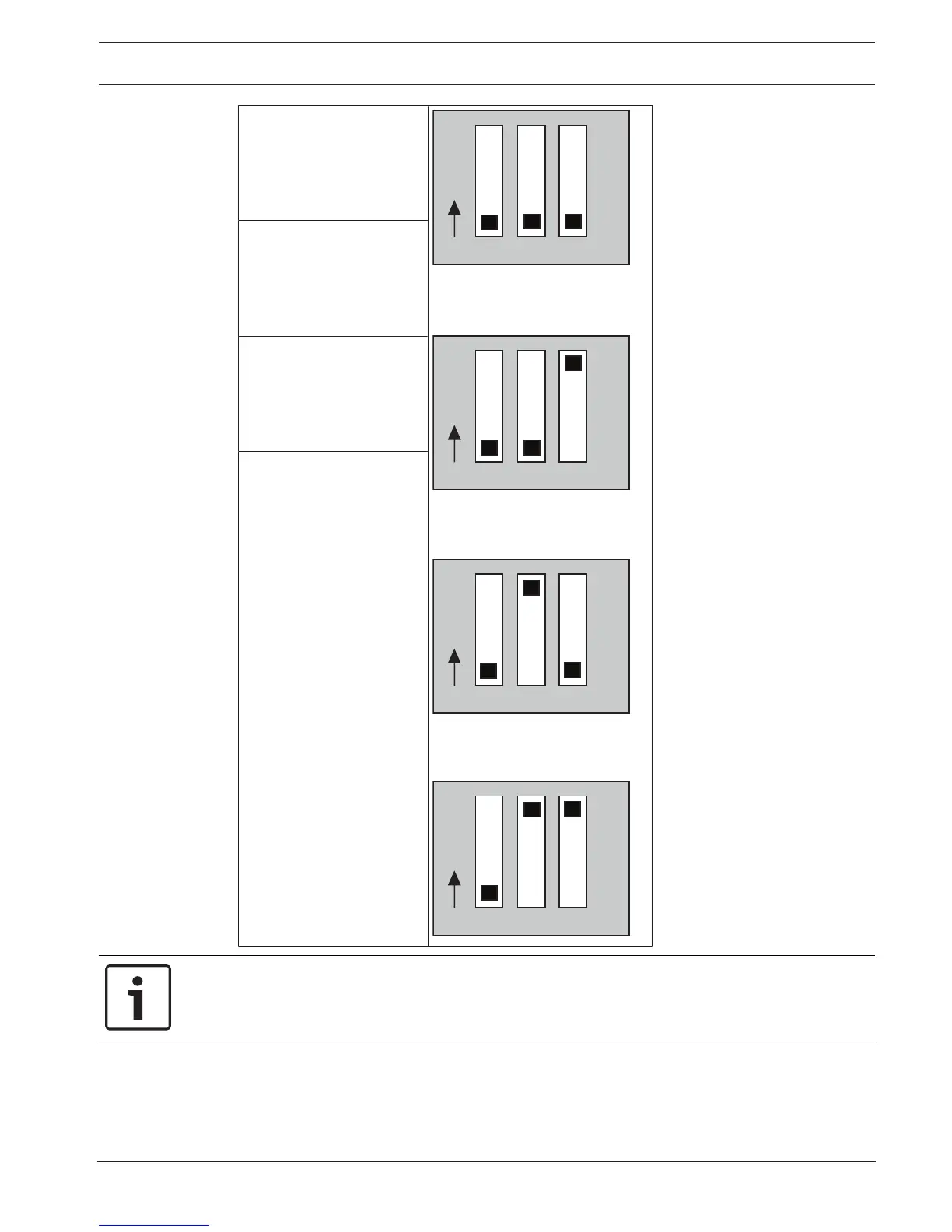

Address setting using SW1
for the 1
st
and 5
th
8-IO
board in AEC2.1 system.
1
2 3
ON
1
2 3
ON
1
2 3
ON
1
2 3
ON
Address setting using SW1
for the 2
nd
and 6
th
8-IO
board in AEC2.1 system.
Address setting using SW1
for the 3
rd
and 7
th
8-IO
board in AEC2.1 system.
Address setting using SW1
for the 4
th
and 8
th
8-IO
board in AEC2.1 system.
Notice!
The boards are addressed in binary sequence. AEC2.1 can support up to 16 interface boards,
eight 4-Reader and eight 8-IO boards. The address pin ‘1’ is reserved for future development,
to expand the capability of AEC2.1.
