Access Easy Controller 2.1 How to Install the Access Easy Controller 2.1 | en 59
Robert Bosch (SEA) Pte Ltd Hardware Installation Manual 2018.11 | 1.0.6 | F.01U.122.796
– Use a marker to mark out the exact position of the mounting holes from the panel.
Make sure that the panel is held firmly in place before marking out is done.
2. Drill on the marked out position on the wall.
– Use a concrete drill bit with a hammer drill for drilling on a concrete wall.
– Ensure drill bit is placed perpendicular to the wall surface before commencing
drilling. Drilled hole should be perpendicular to the wall surface.
– Drilled hole should be such that a stainless steel sleeve anchor bolt can be fully
inserted into the hole.
3. Insert the stainless steel sleeve anchor bolt into the drilled hole and tighten the nuts to
mount the panel in place.
– Use a hammer to lightly hammer the bolt in.
– Place the panel over the bolts, place a flat washer follow by a spring washer before
tightening each nut to fix the panel in place.
Warning!
The bolt should fit snugly in the drilled hole. Do not mount the panel on a bolt that is loose in
the drilled hole.

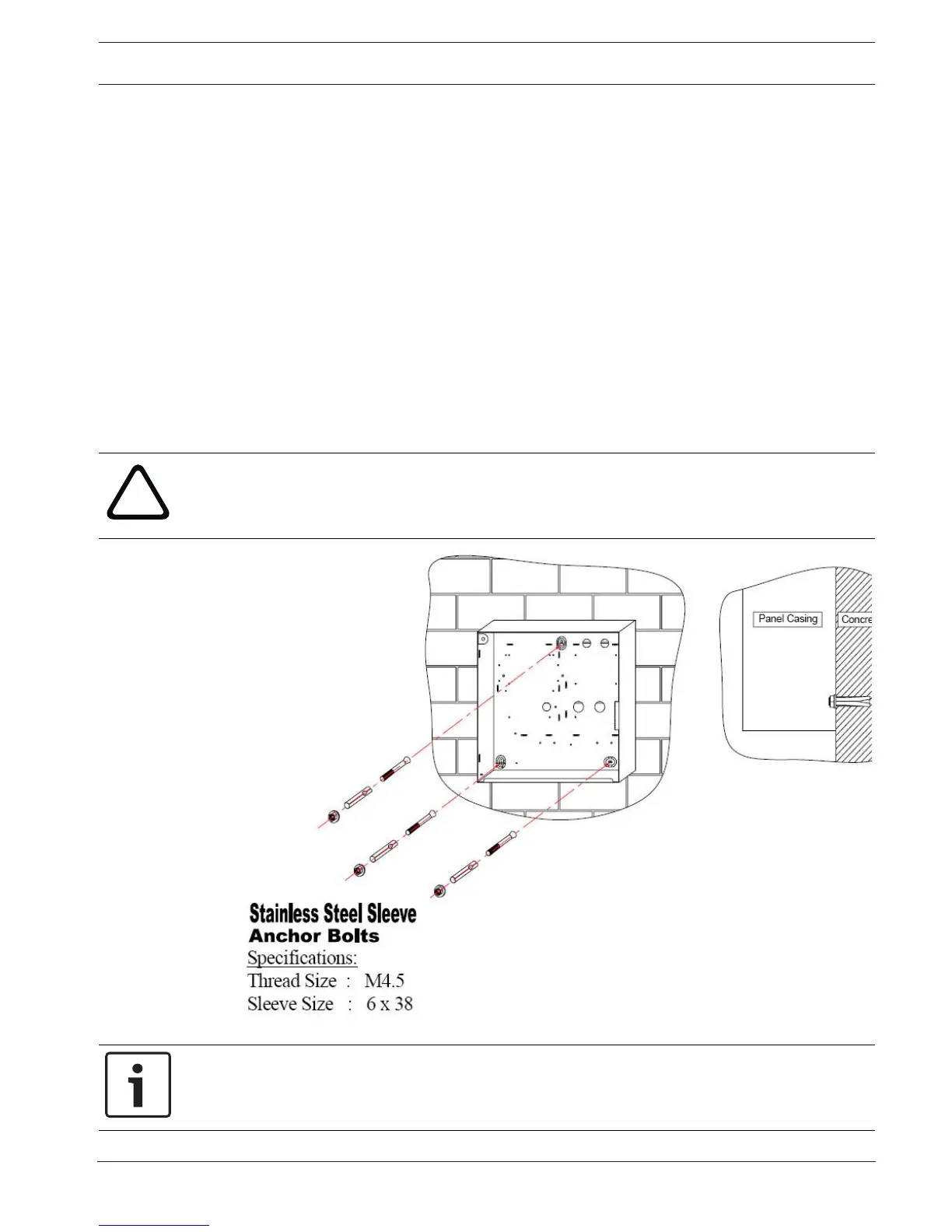

Figure11.1: AEC fixing procedure
Notice!
The Dimensions of the Stainless Steel Sleeve Anchor Bolt:Sleeve Size: 6 x 38mmMin. Hole
Depth: 35mmFixing Hole Dia.: 6mmThread Size: M4.5
