Flexible Automation
Power supply modules
3-9
1070 072 143-101
3.3 NT1 and NT2
NT1
230/115 V

5/12 V
ISO 12 V
L1
N
230 / 115 V
M 1,6 A
Netz
I
O
Batterieausfall
Rücksetzen

Bereit
1 2 3 4 5
6 7 8 9
24V-/2A
LED green 5/12 V present
LED green ISO 12 V present
LED red Battery failure
Reset key, to confirm the battery failure
and for the load test of the buffer battery
Buffer battery
Failure contact
Strainrelief for the failure contact
Mains switch
Mains fuse
Mains connection
Strainrelief for the mains connection
NT2
230/115 V

5/12 V
ISO 12 V
L1
N
230 / 115 V
M6.3 A
Netz
I
O
Batterieausfall
Rücksetzen

Bereit
1 2 3 4 5
6 7 8 9
24V-/2A

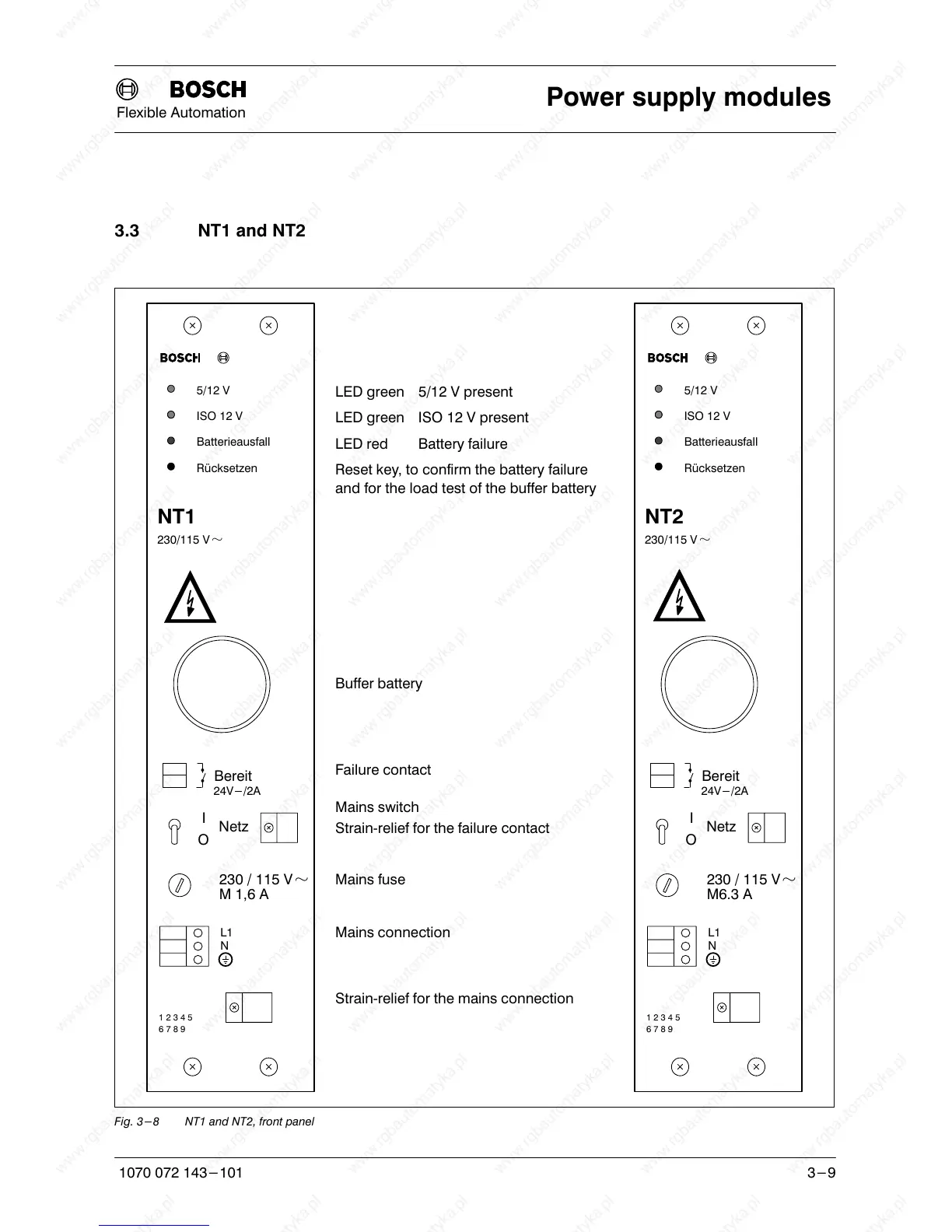

Fig. 3-8 NT1 and NT2, front panel
