FHP560 Controller Applications Manual
Bosch Thermotechnology Corp.
Data subject to change Page____ of ____
3 Specifi cation
Product Specifi cations
Power 24VAC ± 10%, 50-60Hz, 20VA power consumption; Single Class II source only; 100VA or less
Physical Rugged plastic housing protects circuitry
Environmental Operating Range 0° to 130°F (-17.8° to 54.4°C); 10 to 90% relative humidity, non-condensing
Digital Outputs Five (5) binary outputs: Form A relay contacts rated at 1A resistive @ 24VAC; confi gured as dry contact, normally open
Universal Inputs
Six (6) universal inputs. All six inputs are confi gurable for pulse, 10kohm @ 77°F (25°C) thermistor, or dry contact. In addition,
inputs 1 and 2 are confi gurable for 0-5Vdc.
Standard Communication
3-pin port confi gurable for ARC156 (BACnet-over-ARC156) or EIA-485 communications (BACnet MS/TP, Modbus RTU, Lon, or
N2)
Ports
Rnet Port: 4-pin port for interface with remote mounted BACview6 or ZS sensors
Local Access Port: For local communication with a laptop computer running WebCTRL, Virtual BACview, or for communication
with a BACview6.
BACnet Support Advanced Application Controller (B-AAC), as defi ned in BACnet 135-2001 Annex L Communication Ports
Status Indication Visual (LED) status of network communication, run status, errors, power, and all digital outputs
Battery
Lithium 3V coin cell battery, CR2032, provides a minimum of 10,000 hours of data retention (based on installation in
conditioned space) during power outages.
Protection Surge and transient protection circuitry for power and communications
Listed by
FCC Part 15 - Subpart B - Class A. Pending listings at the time of publishing this document: UL 916 (PAZX), cUL C22.2 No. 205-
M1983 (PAZX7), CE (1997)
Weight 0.6 Lbs. (0.27 Kg).
Overall Dimensions
(W x H x D):
5-1/16” (129mm) x 5-11/16” (144mm) x 1-1/2” (38mm) (recommended panel depth)
Mounting Hole Dimensions Two mounting holes located center line of controller with 5-9/16” (141mm) vertical spacing
Table 1
4 Physical Dimensions

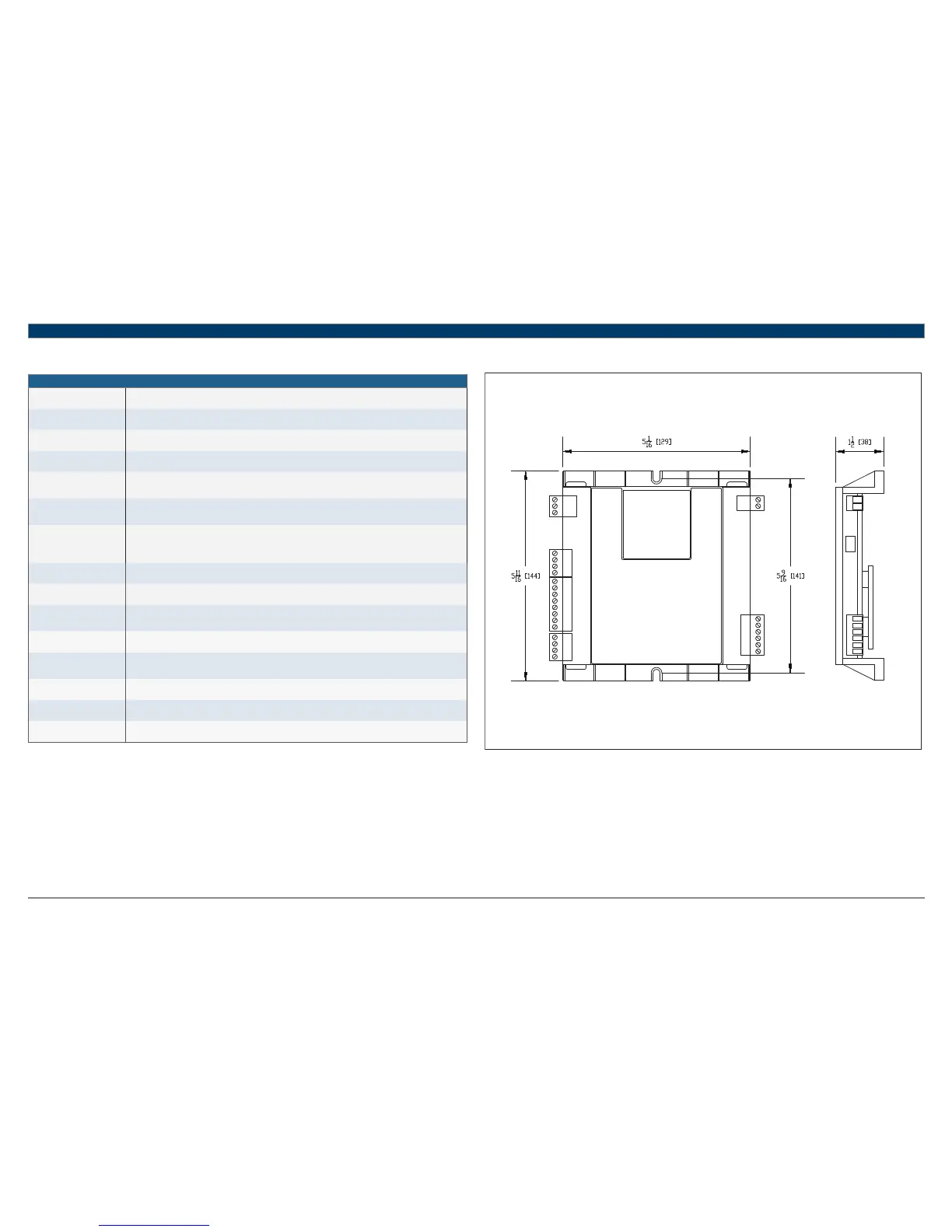

Fig. 2 FHP560 Controller Dimensions in Inches (mm)
