FHP560 Controller Applications Manual
Bosch Thermotechnology Corp.
Data subject to change Page____ of ____
14 ZS Combination Sensors
14.1 ZS Sensor Overview
The Bosch line of intelligent zone sensors provides the function and fl exibility you need to manage the conditions important to the comfort and
productivity of the zone occupants. The ZS sensors are available in a variety of zone sensing combinations to address most application needs.
These combinations include temperature, relative humidity, and indoor air quality (carbon dioxide). They are built to be fl exible, allowing for easy
customization of what the user/technician sees. Designed to work with the FHP560 controller, the ZS sensor line includes the ZS Standard, ZS
Plus, and ZS Pro.
ZS Pro ZS Plus ZS Standard

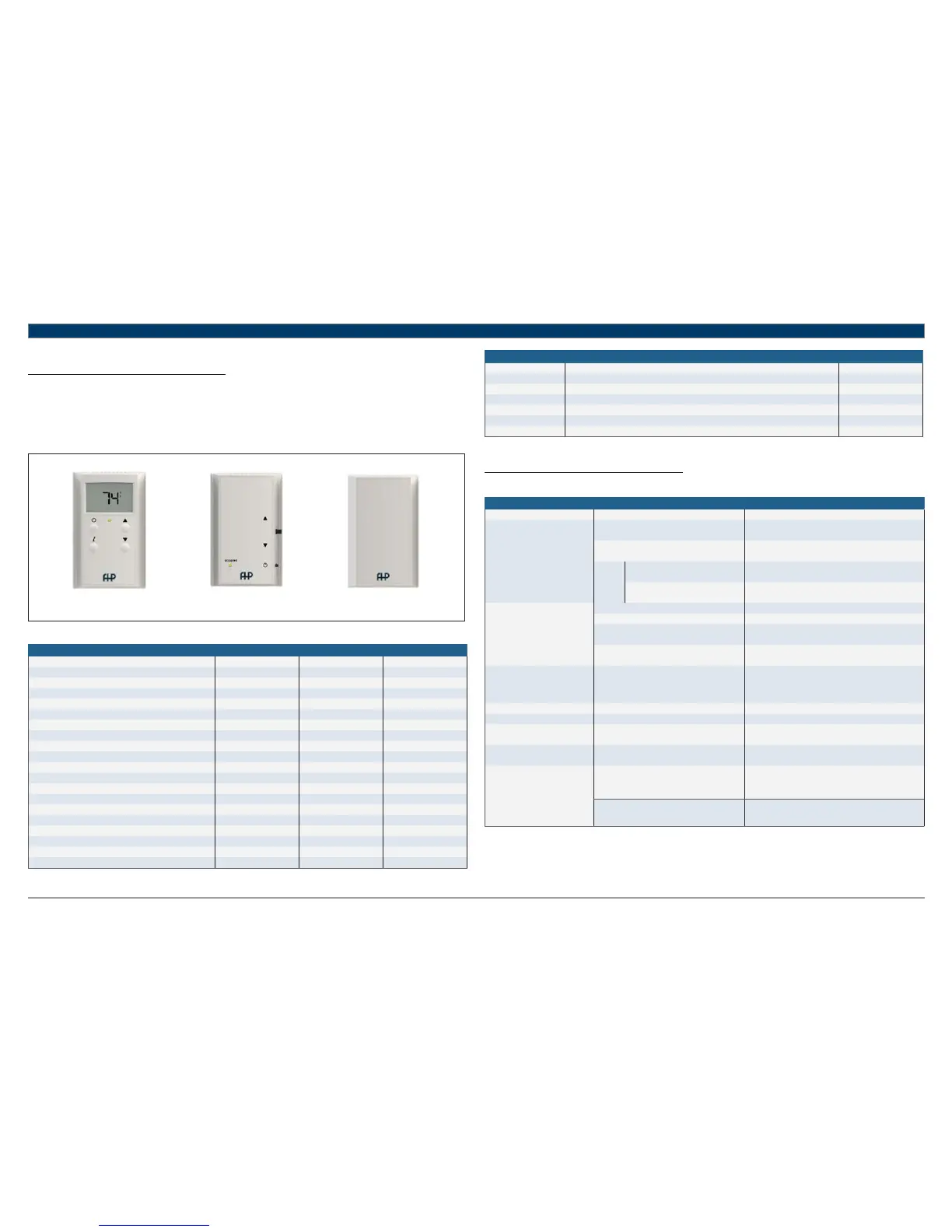

Fig. 6 ZS Sensors
Available Features
Features ZS Standard ZS Plus ZS Pro
Temperature Only
Temperature and Humidity
Temperature, CO₂, and Humidity
Neutral color
Addressable / supports daisy-chaining
DIP Switch Addressable
Hidden communication port
Mounts on a standard 2” by 4” electrical box
Occupancy status indicator
Push-button occupancy override
Temperature set-point adjustment
Humidity set-point adjustment
Large, easy- to-read LCD
Alarm indicator
Info and Mode Button Support
Indication of Energy Savings
Deg F/C Changeover at the Sensor
On/Off Button; not just TLO
Custom Unit Information on Display (Text and/or Icons)
Table 38
Models and Part Numbers
Sensor Model Description Bosch Part Number
ZS-FHP Standard Zone Sensor, no options, FHP Logo 8 733 933 902
ZS-H-FHP Standard Zone Sensor, w/ Humidity FHP Logo 8 733 933 903
ZSPL-FHP Plus Zone Sensor with override, slide pot and occupied LED no options FHP Logo 8 733 933 901
ZSP-FHP Pro Zone Sensor with LCD Display no options FHP Logo 8 733 933 898
ZSP-H-FHP Pro Zone Sensor with LCD Display w/ Humidity FHP Logo 8 733 933 899
ZSP-HC-FHP Pro Zone Sensor with LCD Display w/ Humidity and CO₂ FHP Logo 8 733 933 900
Table 39
14.2 ZS Sensor Specifi cations
Specifi cations
Description Sensor Type / Options Value
Sensing element range and accuracy
Temperature only
Range: 32 to 122°F (0 to 50°C)
Accuracy: ±0.35°F (0.2°C)
Temperature if humidity is included
Range: 50 to 104°F (10 to 40°C)
Accuracy: 0.5°F (0.3°C)
Options:
Humidity:
Range: 10 to 90%
Accuracy: 2% typical
CO₂:
Range: 0 to 2000 PPM
Accuracy: ±75 PPM typical
Power requirements
Temperature only - ZS Standard or ZS Plus: 12 Vdc @ 6 mA
Temperature with humidity - ZS Standard or ZS Plus: 12 Vdc @ 7 mA
Temperature with humidity and CO₂ - All models
12 Vdc @ 15 mA (idle) to
190 mA (CO₂ measurement cycle)
Temperature and CO₂ - All models
12 Vdc @ 14 mA (idle) to
189 mA (CO₂ measurement cycle)
Power supply ―
The 4-conductor Rnet cable from a controller supplies +12 Vdc @
210 mA. For additional power, use an external power supply. Use
the above power requirements to calculate the size of the external
power supply.
Communication ― 115 kbps
Local access port ― For local access to start up and troubleshoot the system
Environmental operating range ―
-4 to 122°F (-20 to 50°C), 10 to 90% relative humidity, non-
condensing
Mounting ―
Standard 4x2-in. electrical box using the 6-32 x 1/2” mounting
screws provided
Overall dimensions
Temperature sensor or temperature with humidity
sensor
Width: 3 in. (7.62 cm)
Height: 4-13/16 in. (12.22 cm)
Depth: 13/16 in. (2.01 cm)
Sensor with CO₂
Width: 2-7/8 in. (7.3 cm)
Height: 4-13/16 in. (12.22 cm)
Depth: 1-1/4 in. (3.18 cm)
Table 40
