Applications Manual FHP560 Controller | 45
Bosch Thermotechnology Corp.
Data subject to changePage____ of ____

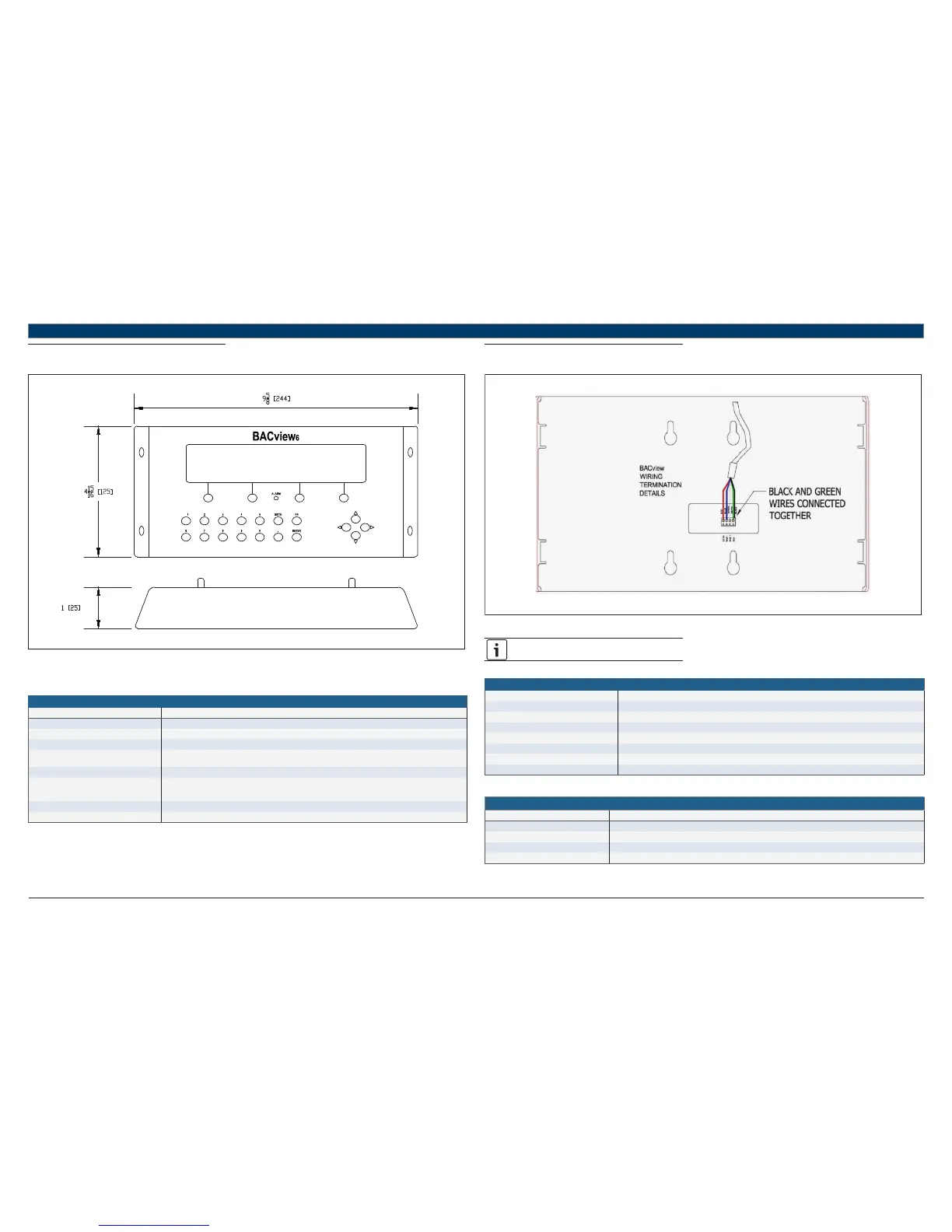

15.3 BACview Dimensions and Specifi cations
Fig. 24 Dimensions in inches (mm)
Specifi cations
Description Value
Power +12 Vdc @ 250mA supplied by the controller
Backlit LCD Display 4-line by 40-character display
Cable 6 ft. (1.8m) cable to connect to controller’s Local Access port
Protection
15KV ESD protection to the enclosure. Built-in solid-state polyswitch protection on incoming power. Polyswitch is
not replaceable; it will reset itself if the condition that caused a fault returns to normal
Environmental Operating Range 32-120 °F (0-48.9 °C), 10 - 90% relative humidity, non-condensing
Overall Dimensions inch (cm)
Width: 9 5/8 (24.5)
Height: 4 15/16 (12.5)
Depth: 1 (2.5)
Weight 1.2lbs (.054kg)
Listed by UL-916 (PAZX), cUL-916 (PAZX7), FCC Part 15 Subpart B-Class A, CE
Table 49
15.4 Rnet Wiring Specifi cations
Fig. 25 Rear View of Hand-Held Module
Use the specifi ed type of wire and cable for maximum
signal integrity.
Rnet Wiring Specifi cations
Description 4 conductor, unshielded, CMP, plenum rated cable
Conductor 18 AWG
Maximum Length 500 feet (152 meters)
Cable 6 ft. (1.8m) cable to connect to controller’s Local Access port
Recommended Coloring Jacket: White, Wiring: Black, white, green, red
UL Temperature Rating 32 - 167 °F (0 - 75 °C)
Voltage 300 Vac, power limited
Listing UL: NEC CL2P, or better
Table 50
Recommended Wiring Scheme
Connect this wire: To this terminal on the BACview:
Red +12V
Blue Rnet-
White Rnet+
Green & Black Gnd
Table 51
