4 In overview
This chapter contains information about the following elements of the panel controller:
– Operating elements, page 19
– Display elements, page 20
– Touch screen, page 21
– Display support information, page 23
1
2
0
A l a r m
Test
Transmission Device
activated
Bypassed
Transmission Device
bypassed
Signals bypassed
Power
Fault
Fault Transmission
Device
Fault System
Fault Signals
0
Bypass
Isolate
Maintenance
Switch to day mode
Search Function/
Element
Diagnostics
Configuration
Further functions
Reset
0 0 0
Fire
Control
Fault Bypass
Status
1
1
2
1
3
4

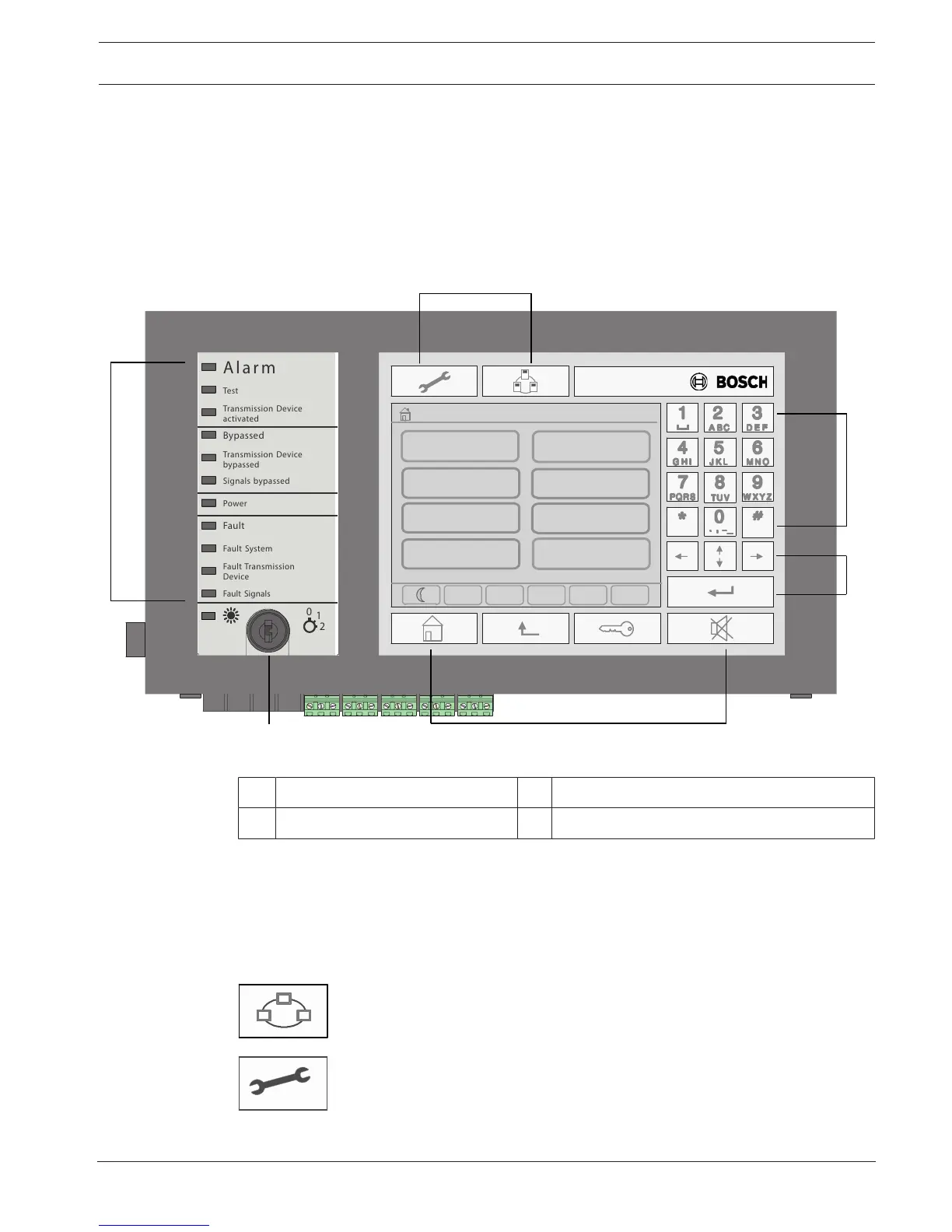

1 Function keys 3 Key switch
2 Alphanumeric keypad 4 LED display
4.1 Operating elements
The operating elements include points 1 - 3.
Function keys
To select a function, press the appropriate membrane key.
The following functions can be executed with the function keys:
Display a list of the networked panels and establish a remote
connection with a networked panel (only valid for FPA-5000) or a
remote keypad.
Display the address for technical support, if saved.
