20 en | In overview Panel Controller
2017.09 | 7.0 | F.01U.258.929 User Guide Bosch Sicherheitssysteme GmbH

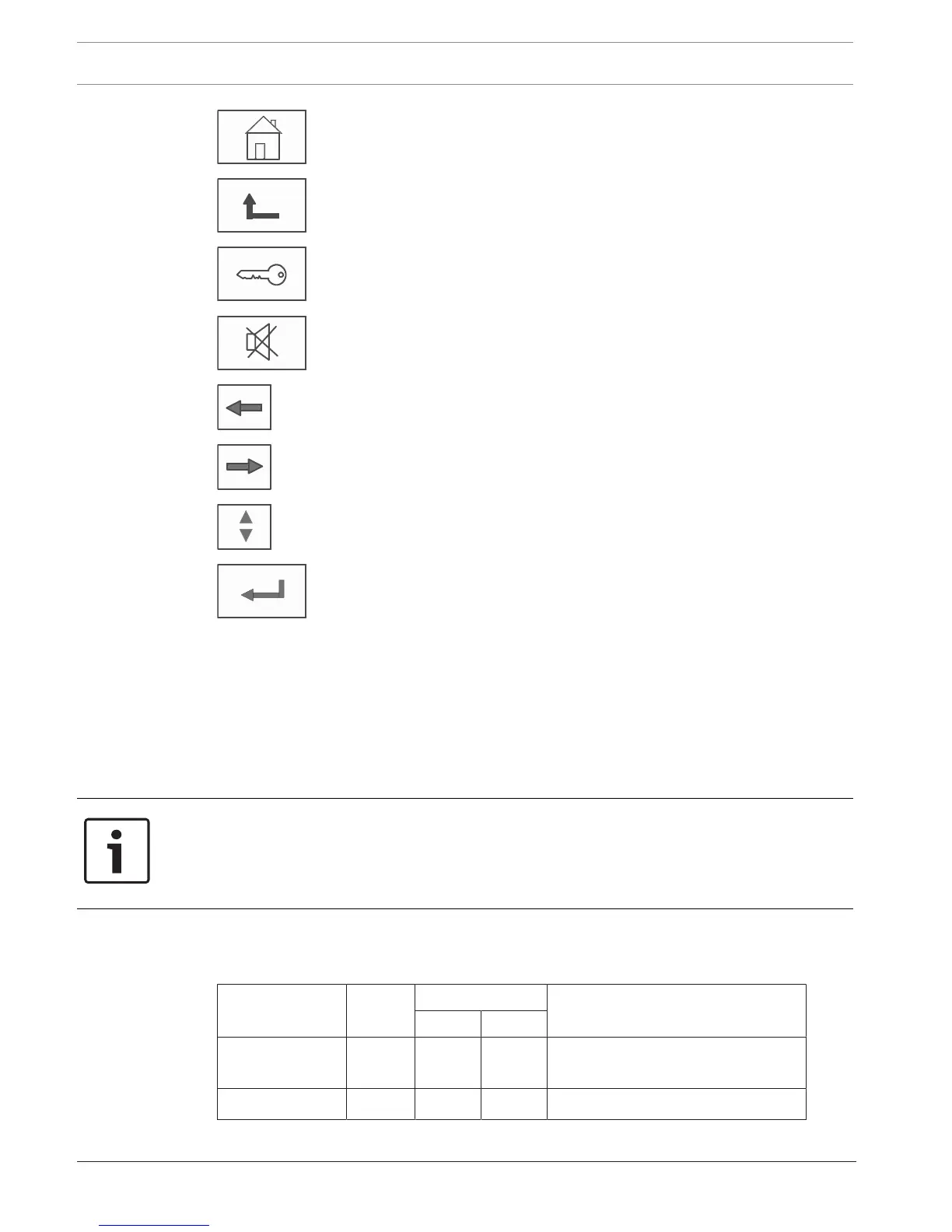

"Home" key. Call up the start menu.
Return to the previous selection.
"Key" key. Log in and out: Enter user ID and password.
Temporarily switch off the internal buzzer.
"Left arrow" key. Move the cursor one place to the left on the search
screen.
"Right arrow" key. Move the cursor one place to the right on the search
screen.
"Double arrow" key. Switch between status bars if two or more are
available. Call up the status bar to scroll rapidly through lists.
"Enter" key. Confirm an alphanumeric entry. Confirm an entry that is
not confirmed by selecting the OK field on the touch screen.
Alphanumeric keypad
Entry of letters, special characters, and numbers.
Key switch
The key switch has two programmable key positions. Depending on the configuration, it is
possible to switch between day and night operation, for example.
Notice!
Only give the key to people who have been trained to operate the panel controller and who
have knowledge in the area of fire protection. Otherwise, operation may be incorrect and
people may be injured. To prevent possible misuse, remove the key after operation and store
it in a secure location.
4.2 Display elements
LED display
Display Color Light signal Meaning
Steady Flashes
Alarm Red x Panel is in alarm state Also
continuously on in event of Fire PAS
Walktest Yellow x System is being tested
