104 en | Installation wiring PRAESENSA
2021.12.21 | V0.15b | F.01U.402.882
Underwriters Laboratories Listing Document (ULLD)
Bosch Security Systems B.V.

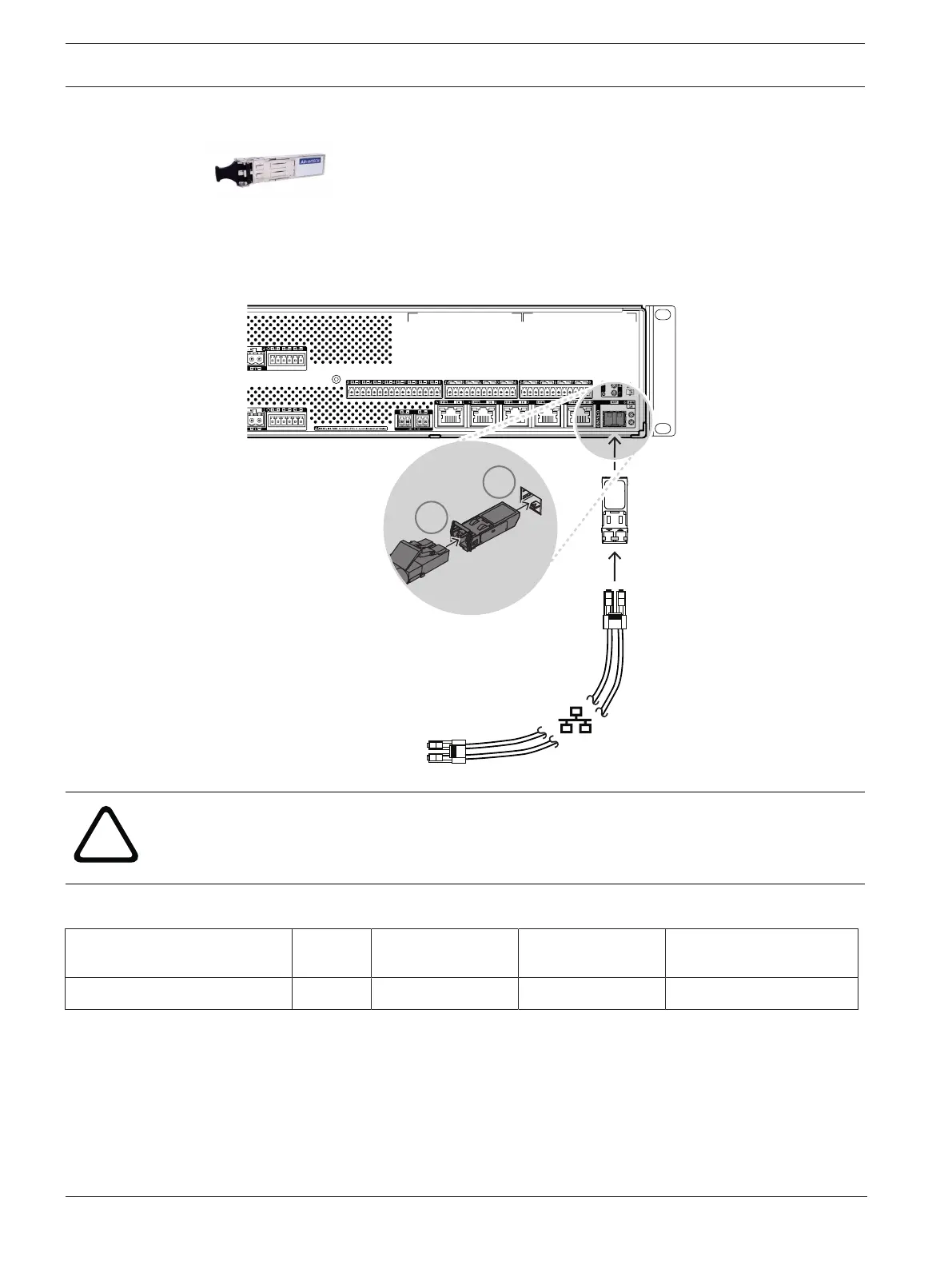

3.11 Fiber transceiver | PRA-SFPLX, PRA-SFPSX
3.11.1 Connections
The fiber transceiver fits and locks into the SFP socket of the PRA-MPSx and PRA-ES8P2S. The
transceiver receives power from the host device.
PRA-SFPSX: < 550 m
PRA-SFPLX: < 10 km
1
2
PRA-SFPxX
5.5
5.5
Caution!
Risk of eye injury. When inspecting a connector, ensure that light sources are off. The light
source in fiber optic cables may cause eye injury. SX and LX fiber connections use invisible IR
light.
Field connections
Connection Field
wiring
Circuit class /
Ilimited IMax
/ minimum AWG Remarks
Fiber Yes Wiring Class N
