3.7 Multifunction power supply, large | PRA-MPS3
3.7.1 Connections

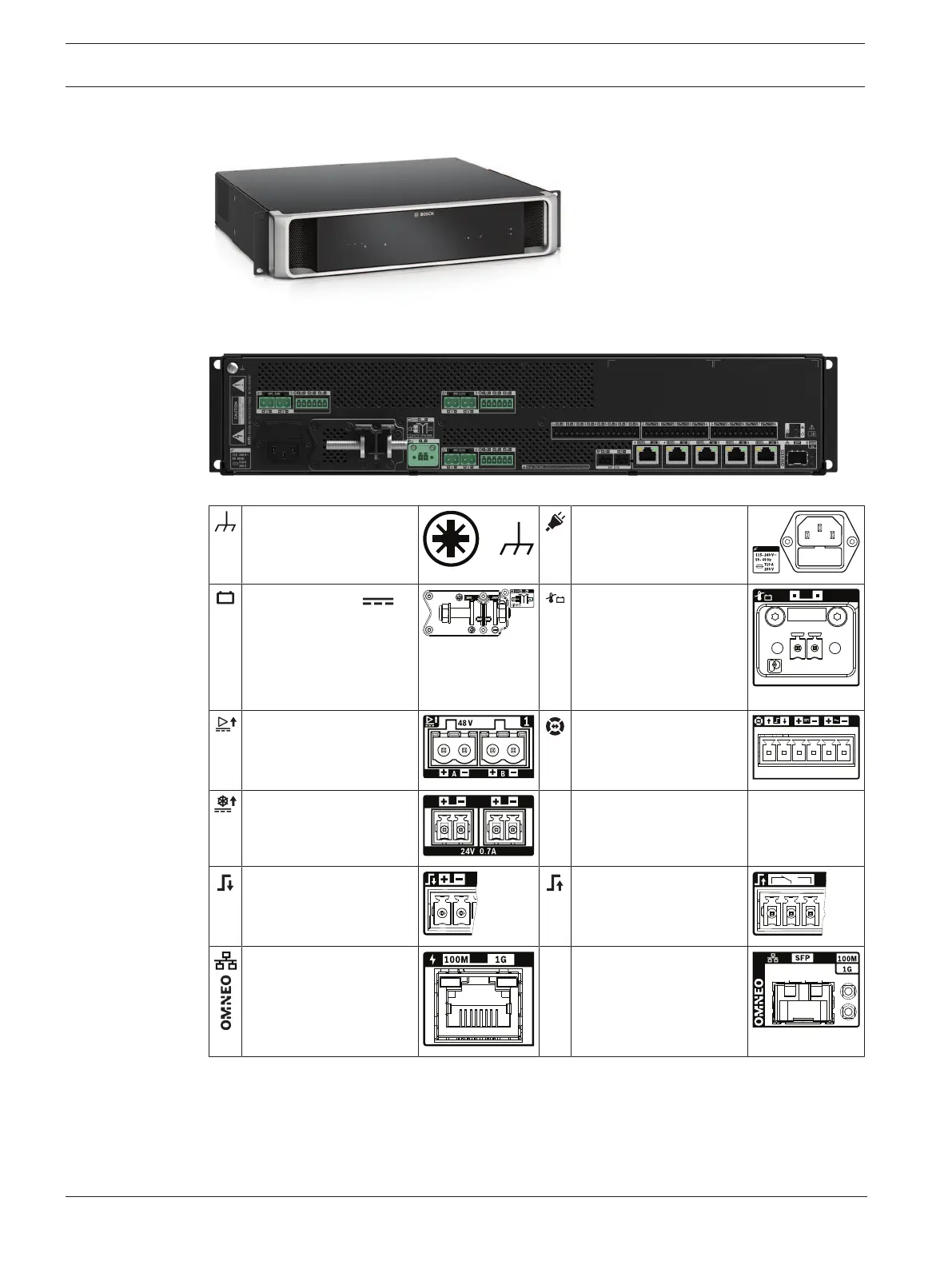

Figure3.10: Rear view connections
Chassis ground Mains input with fuse
Battery 12VDC ( )
CF8/100A
Battery temperature
sensor
48VDC output A‑B (1-3,
to amplifier 1-3)
5.5A
Lifeline control/audio/
supply interface
(1‑3, to amplifier 1‑3)
24VDC output A‑B
(to system controller)
Control input 1‑8
1
Control output 1‑8
1
Network port 1‑5
(port 1 and 2 with PoE)
1
Network port 6 (SFP)
6
