3.9 Call station extension | PRA-CSE
3.9.1 Connections

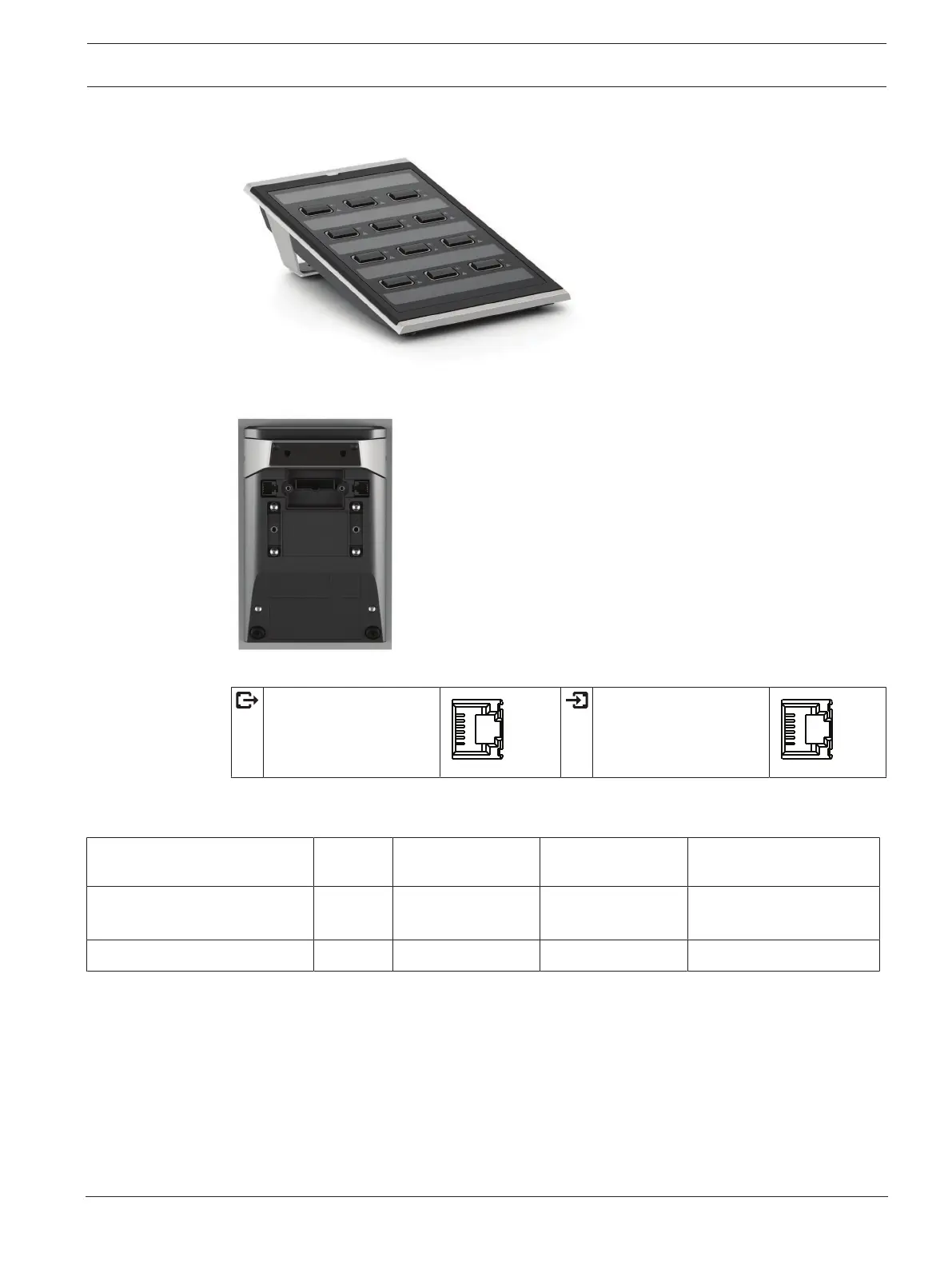

Figure3.12: Bottom view wiring connections
Connection to next
extension (RJ12)
Connection to call
station or previous
extension (RJ12)
Field connections
Connection Field
wiring
Circuit class /
Ilimited IMax
/ minimum AWG Remarks
Interconnection (RJ12) NO* Class 2
power limited
Enclosure - - -
*Must stay within same room <20ft and within metal conduit.
