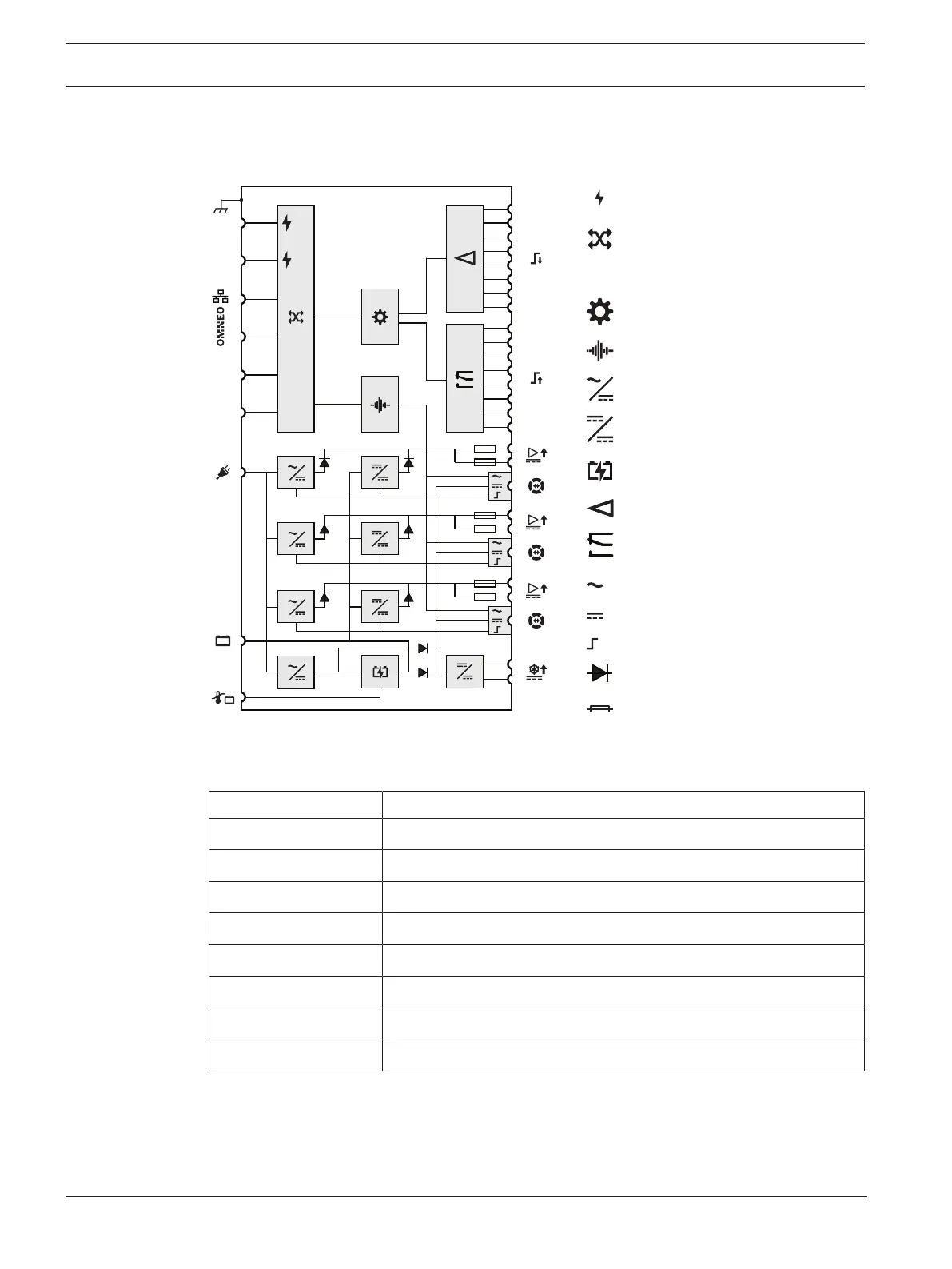

3.7.2 Functional diagram
Functional and connection diagram Internal device functions
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
A
B
2
A
B
3
A
B
A
B
2
1
4
3
6
5
PoE
SFP
Power over Ethernet power source
OMNEO network switch
SFP
Socket for SFP module
Controller
Audio processing (DSP)
Mains to DC converter
DC to DC converter
Battery charger
Control input processor
Control output relay
Lifeline audio output
Lifeline supply output
Lifeline control interface
Diode
Fuse
3.7.3 Parts included
The box contains the following parts:
Quantity Component
1 Multifunction power supply
1 Set of 19"‑rack mounting brackets (pre‑mounted)
1 Set of screw connectors
1 Battery connection set (wiring, fuse, temperature sensor)
1 EU power cord CEE7/7 to IECC13
1 US power cord NEMA 5-15 to IECC13
1 Quick Installation Guide
1 Safety information
No tools or Ethernet cables are provided with the device.
