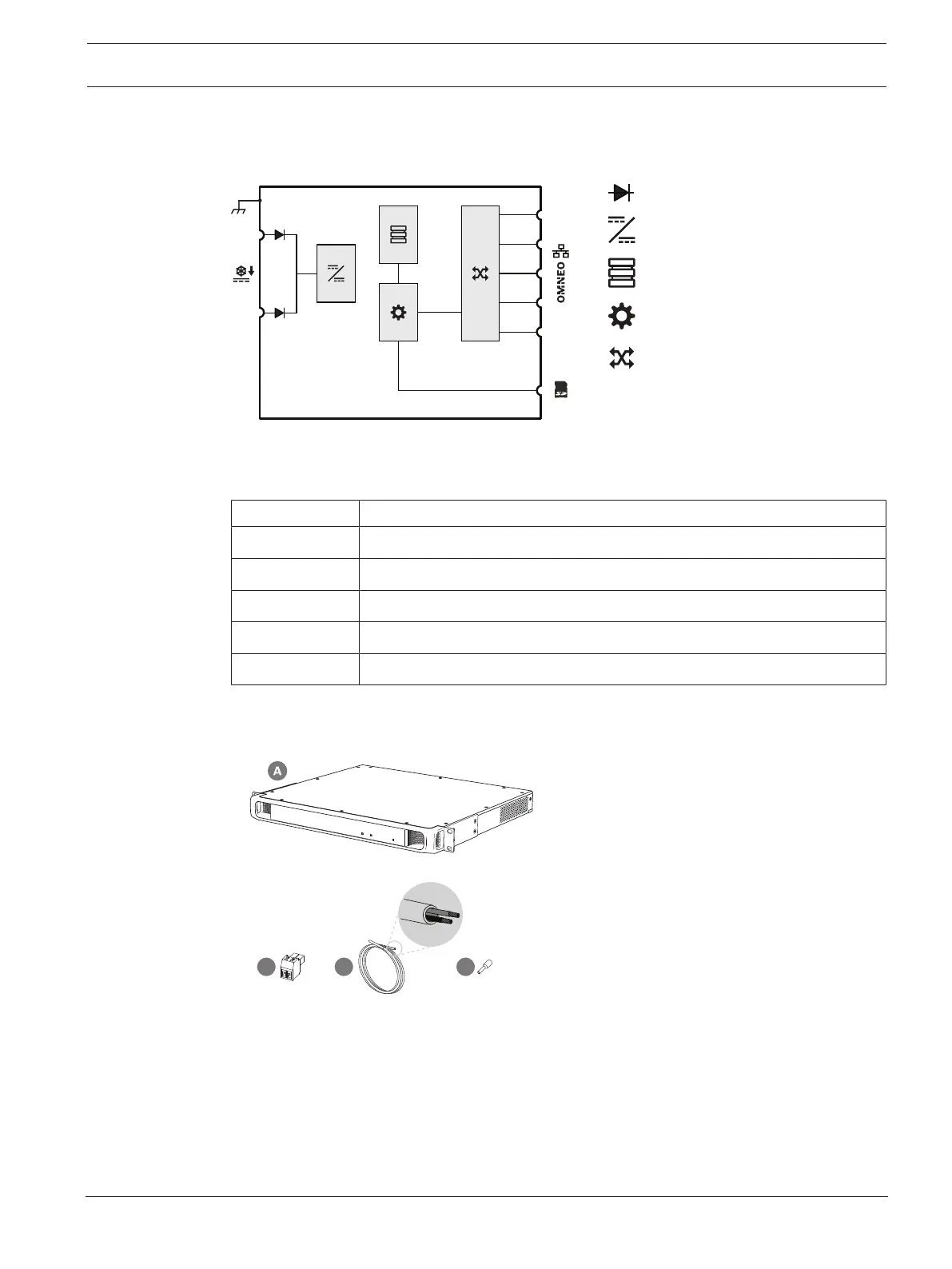

3.3.2 Functional diagram
Functional and connection diagram Internal device functions
1
2
3
4
5
A
B
Diode
DC to DC converter
Message and tone storage
Controller
OMNEO network switch
3.3.3 Parts included
The box contains the following parts:
Quantity Component
1 System controller
1 Set of 19"‑rack mounting brackets (pre‑mounted)
1 Set of screw connectors and cables
1 Quick Installation Guide
1 Safety information
No tools, SD‑card or Ethernet cables are provided with the device.
Parts check and identification
x2
x2
B C
x8
D
A System controller
B 2‑pole screw plug (x2)
C 2‑conductor cable (x2)
D Wire‑end ferrules (x8)
