3.5 Amplifier, 600W 8-channel | PRA-AD608
3.5.1 Connections

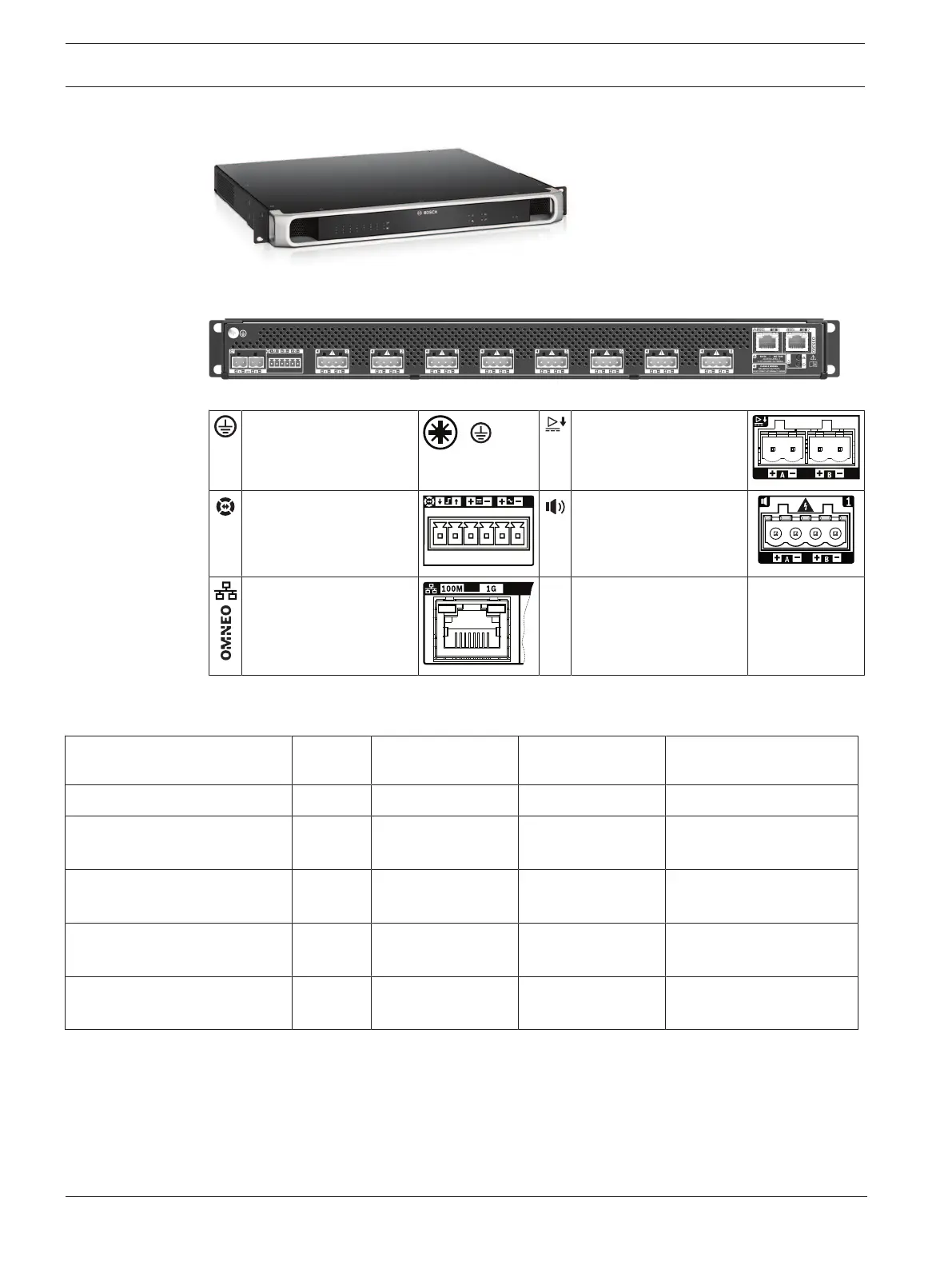

Figure3.6: Rear view connections
Safety ground 48 VDC input A‑B
48 V
Lifeline interface Loudspeaker output
A‑B (1‑8)
Network port 1‑2
1
Field connections
Connection Field
wiring
Circuit class /
Ilimited IMax
/ minimum AWG Remarks
Safety ground - - -
48VDC input A‑B (1-3) NO* Class 1
not power limited
7A Wiring max.: 28-12AWG
Lifeline control/audio/supply
interface (1‑3, to amplifier 1‑3)
NO* Class 1
not power limited
-
Loudspeaker output A‑B (1‑8) YES Class 1
not power limited
14A Wiring Class A or Class B
Wiring max.: 28-12AWG
Network port 1‑2 NO* Class 2
power limited
Wiring ClassN
*Must stay within same room <20ft and within metal conduit.
