PRAESENSA System Configuration | en 149
Bosch Security Systems B.V.
Underwriters Laboratories Listing Document (ULLD)
2021.12.21 | V0.15b | F.01U.402.882

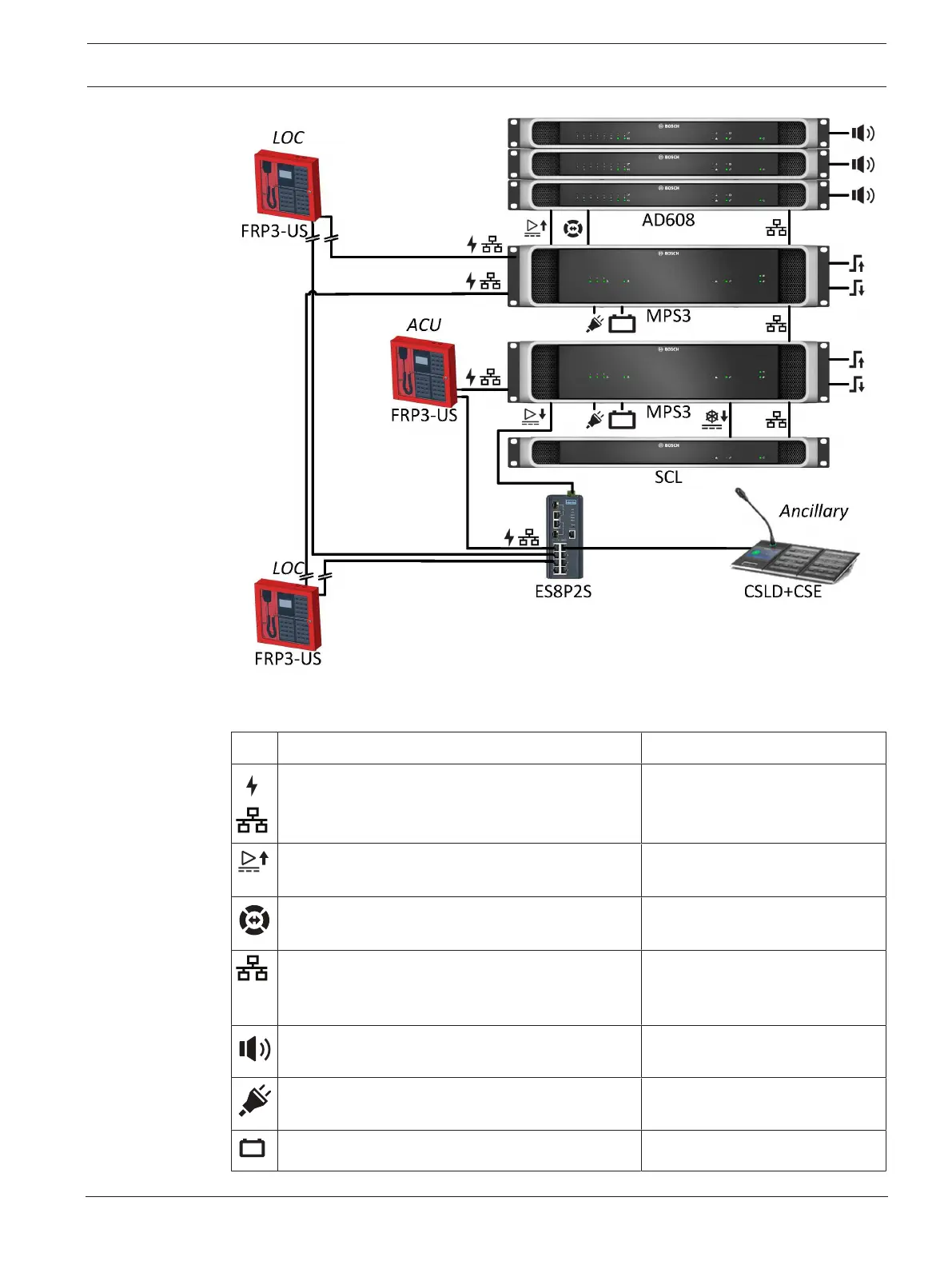

Legend device interconnections
Icon Description Link to wiring section
MPS3 Network port 1‑2 with PoE
Power over Ethernet, page 75
48VDC output A‑B (1‑3, to amplifier 1‑3)
Amplifier power supply, page 72
Power supply, page 49
Lifeline interface (1‑3, to amplifier 1‑3)
Lifeline, page 73
Lifeline, page 50
General network port
Ethernet network, page 54
Ethernet network, page 76
Ethernet network, page 31
Loudspeaker output
Amplifier outputs, page 51
Mains input
Mains power connection, page 71
Battery 12VDC
Battery and fuse, page 67
