156 en | System Configuration PRAESENSA
2021.12.21 | V0.15b | F.01U.402.882
Underwriters Laboratories Listing Document (ULLD)
Bosch Security Systems B.V.
Silence Triggers to silence MNS and Fire audio
messages.
See
Control inputs, page 78
.
10 8 input Expansion Module (B208) J Ethernet PoE (Class N) wiring
See
First responder panel | PRA-FRPx-US, PRA-FRPx-
USNY, page 108
.
11 Octo output module (B308)
13 PRAESENSA system.
See i.e.
PRAESENSA product overview, page 14
.
14 Loudspeaker / zones
See i.e.
Amplifier outputs, page 39
and
Amplifier
outputs, page 51
15 Items 16 and 17 must be mounted side by side
16 Remote Annunciator
17 LOC / ACU First responder panel (PRA-FRP3-
US )
See
First responder panel | PRA-FRPx-US, PRA-
FRPx-USNY, page 108
.
i

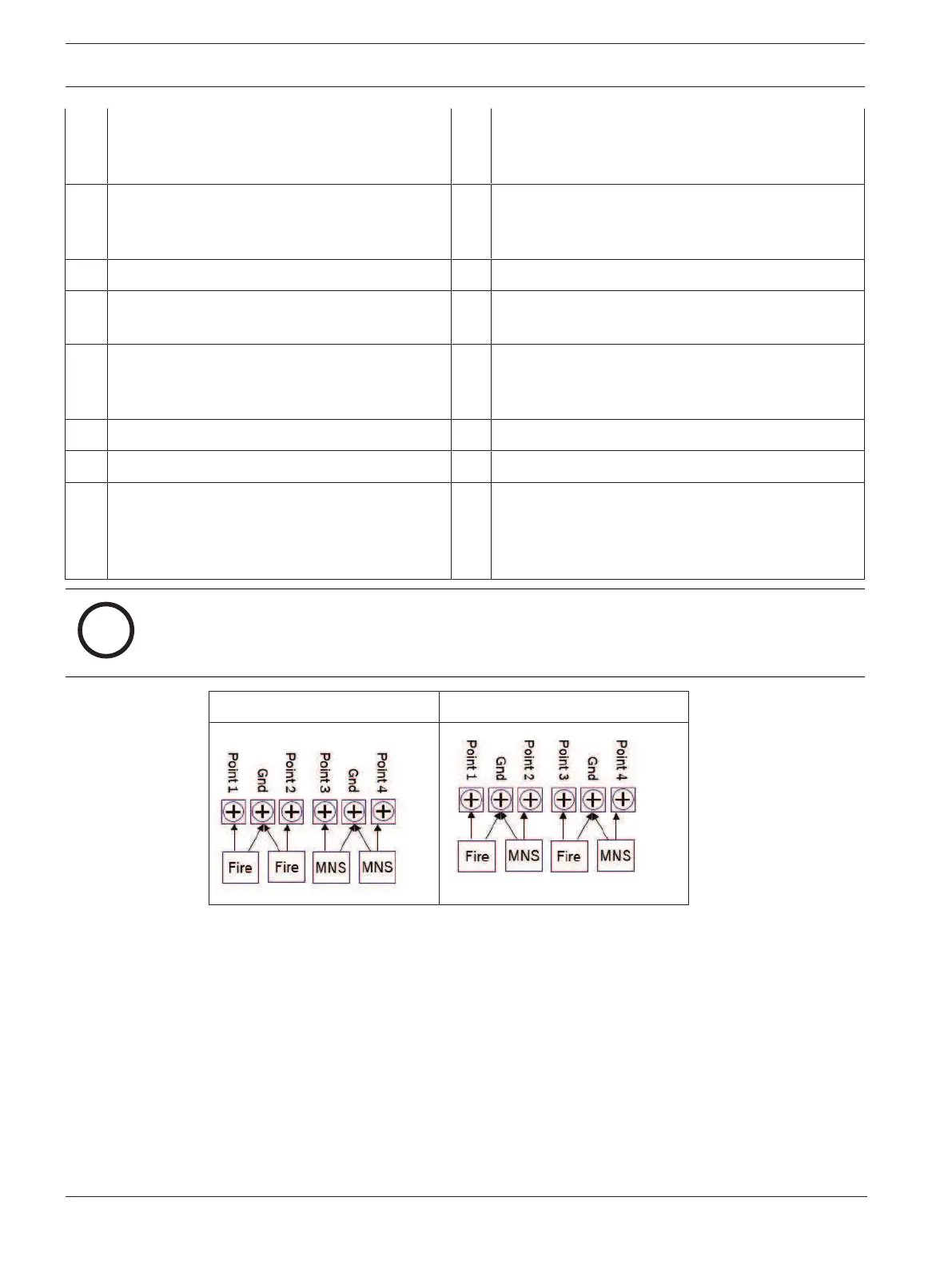

Notice!
When connecting input notification devices to the B9512G or B8512G panel, it is important
NOT to use a shared ground for different notification types, MNS versus Fire.
Correct Not correct
