To do so:

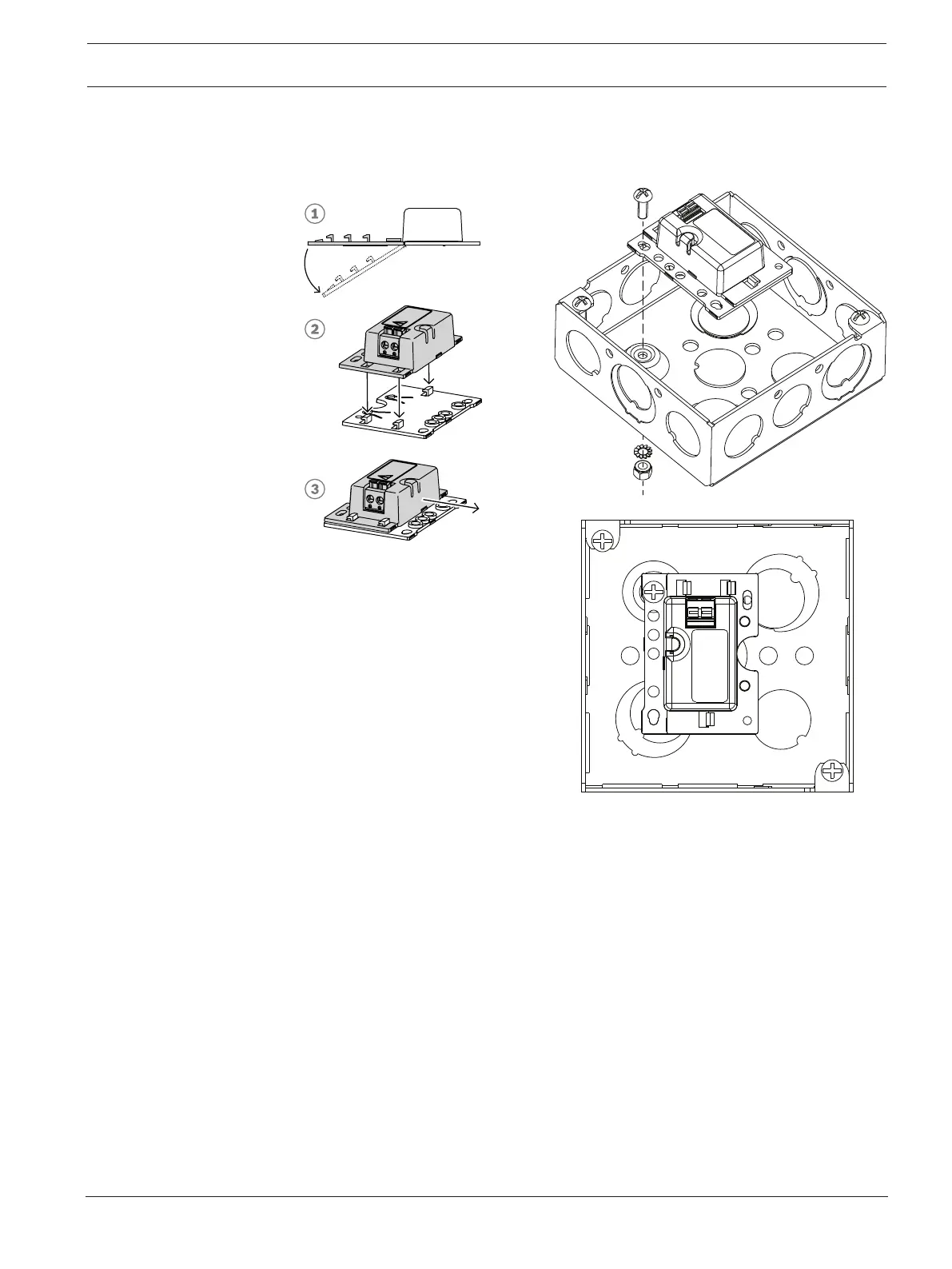

1. Part of the mounting plate of the end‑of‑line device can be broken off (1) and snapped in
place as bottom plate (2+3).
Mounting example with a TP404 ETAN
UL‑certified junctions box
2. Put the mounting screw through the EOL board and junctions box mounting hole, as
indicated.
3. Add the washer and nut to the bottom side of the screw and junctions box:
– Tighten the nut with a maximum force of 0.7Nm, until the EOL device fits correctly
in place (WARNING: tighten with too much force could damage the EOL board!).
4. Pull wiring cables into junctions box through the selected knockout location.
– Secure conduit, wiring cable, etc., to junctions box per NFPA70 codes.
5. Connect the wiring to the EOL device. See
Wiring, page 62
.
6. Mount the junctions box to the desired position and close it with the junctions box cover,
if required.
