NOTE
Defective product due to gases impairing the product’s functionality
Due to the risk of corrosion, avoid sulfur-containing gases (e.g. sulfur dioxide (SO
2
)
and hydrogen sulfide (H
2
S). The product is not resistant to these gases.
NOTE
Failure of the product due to overheating
In order to avoid overheating and ensure trouble-free operation of the product in
accordance with the minimum distances [specified in Section 6.1 “Installation
instructions], a circulation of the ambient air is required.
This is a product that complies with the limit values for interference of class A (industrial
environment), but not with the limit values of class B (residential areas and small businesses).
When using the product in residential areas or in small businesses, the operator must take measures to
avoid radio interference (also see DIN EN 55022).
10.1.5 Mechanical data
Tabelle 43:
Mechanical data Value
Size (HxDxW [mm]) 105 x 160
1)
x 101
Weight [g] 531
Attachment On a standard DIN rail according to DIN EN 60715
1) the installation depth depends on the selected plug/cable
Housing dimensions

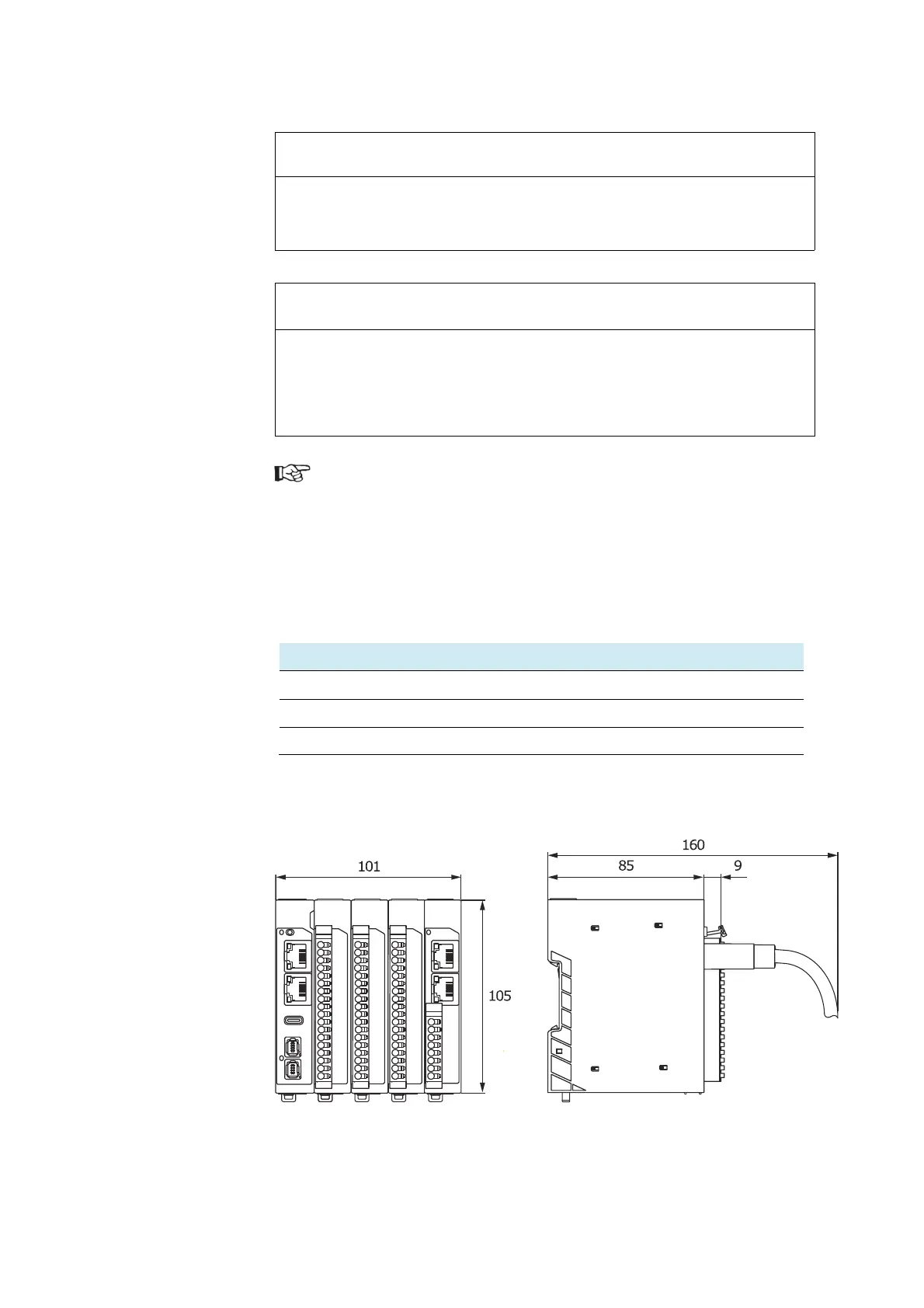

Fig. 15: Housing dimensions of SAFEX-C.15 and installation depth with max. plug and cable
usage
