58/83 ctrlX SAFETY | Device type SAFEX-C.15
R911405651, Bosch Rexroth AG, DOK-XSAFE*-SAFEX-C.1XC-IT03-EN-P, Edition 03
10.2 Device interfaces

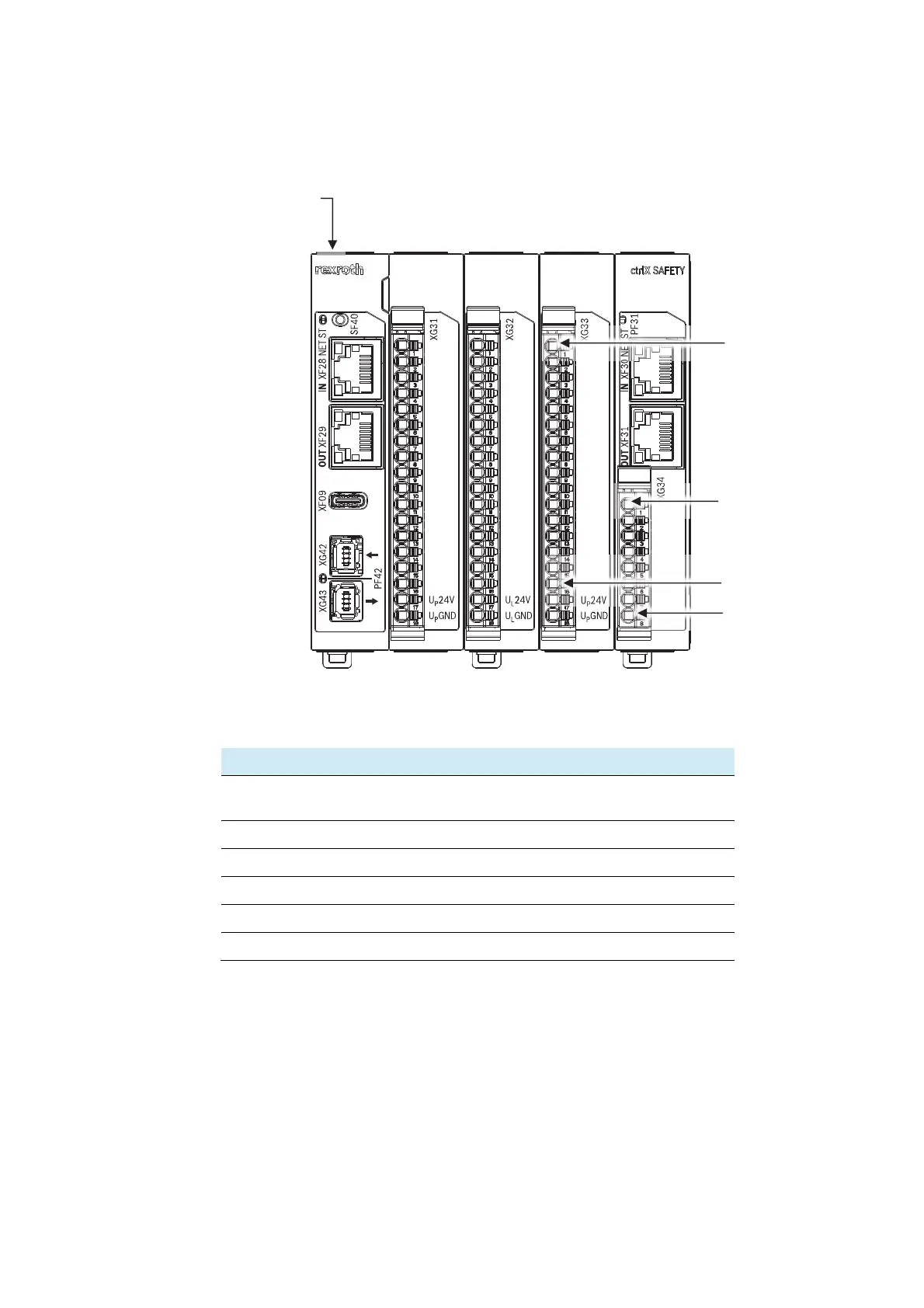

Fig. 16: Front view of SAFEX-C.15
Tabelle 44:
Interface Short description
XG31, XG32, XG33, XG34 Interface for voltage supply and digital inputs and
outputs
XF28 IN / XF29 OUT Ethernet 1 interface (primary)
XF30 IN / XF31 OUT Ethernet 2 interface (secondary)
XG42 / XG43 ctrlX SAFETY
link
master interface
XF09 USB-C interface
CF01 µSD memory card slot
μSD Memory
card slot
(CF01)
Pin 1
Pin 16
Pin 1
Pin 8
