Bosch Rexroth LTH - Current Control (X10), Option

56/60 Bosch Rexroth AG | Electric Drives and Controls LTH | 3 609 929 408/2.1
2 Power Unit LTH
2.10.6 Current Control (X10), Option

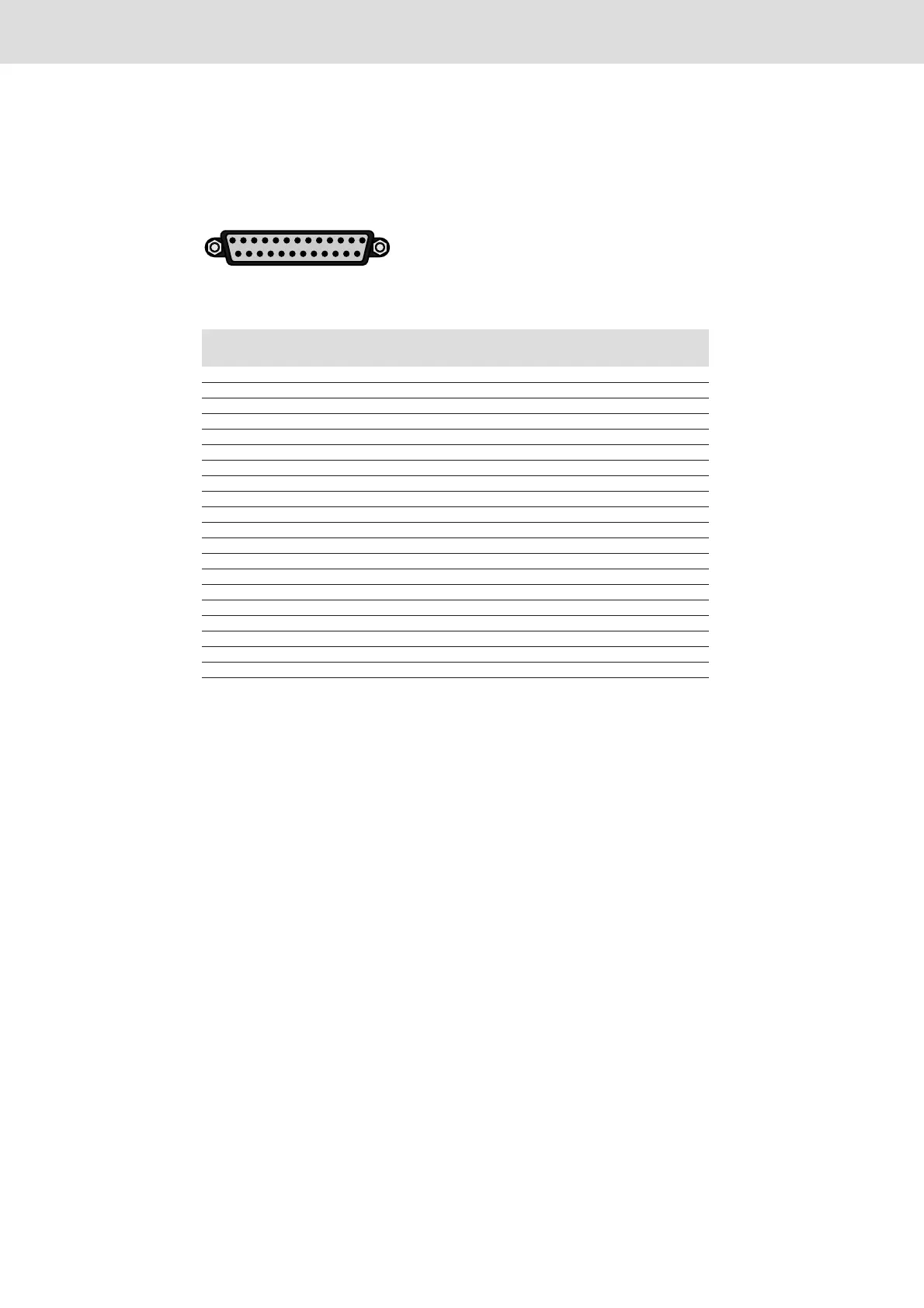

SUB-D connector, 25-pins, female
Fig. 16:
Pin-No. Signal Input/Output
(I/O)
Description/Function
1 PGND Shield
2 RXD (+) I Receive data (not inverted)
3 TXD (+) O Send data (not inverted)
4 CTS (+) I PM ready to receive (not inverted)
5 RTS (+) O ST ready to receive (not inverted)
6 - N.C.
7 GND Logic reference potential
8 - N.C.
9 - N.C.
10 - N.C.
11 +15V Supply voltage
12 -15V Supply voltage
13 - N.C.
14 - N.C.
15 RXD (-) I Receive data (inverted)
16 TXD (-) O Send data (inverted)
17 CTS (-) I PM ready to receive (inverted)
18 RTS (-) O ST ready to receive (inverted)
19-24 - N.C.
25 CAL I Calibration signal
Table 8:
113
1425
