83
ADDENDUM A - CSD Configuration Setup
8.0 CSD Project File Configuration Setup
8.1 Open ControlSpace
®
Designer
TM
4.0 or
Later
8.2 Expand the Signal Processors and
Control Centers drop-down menus by
clicking the + sign next to the name.

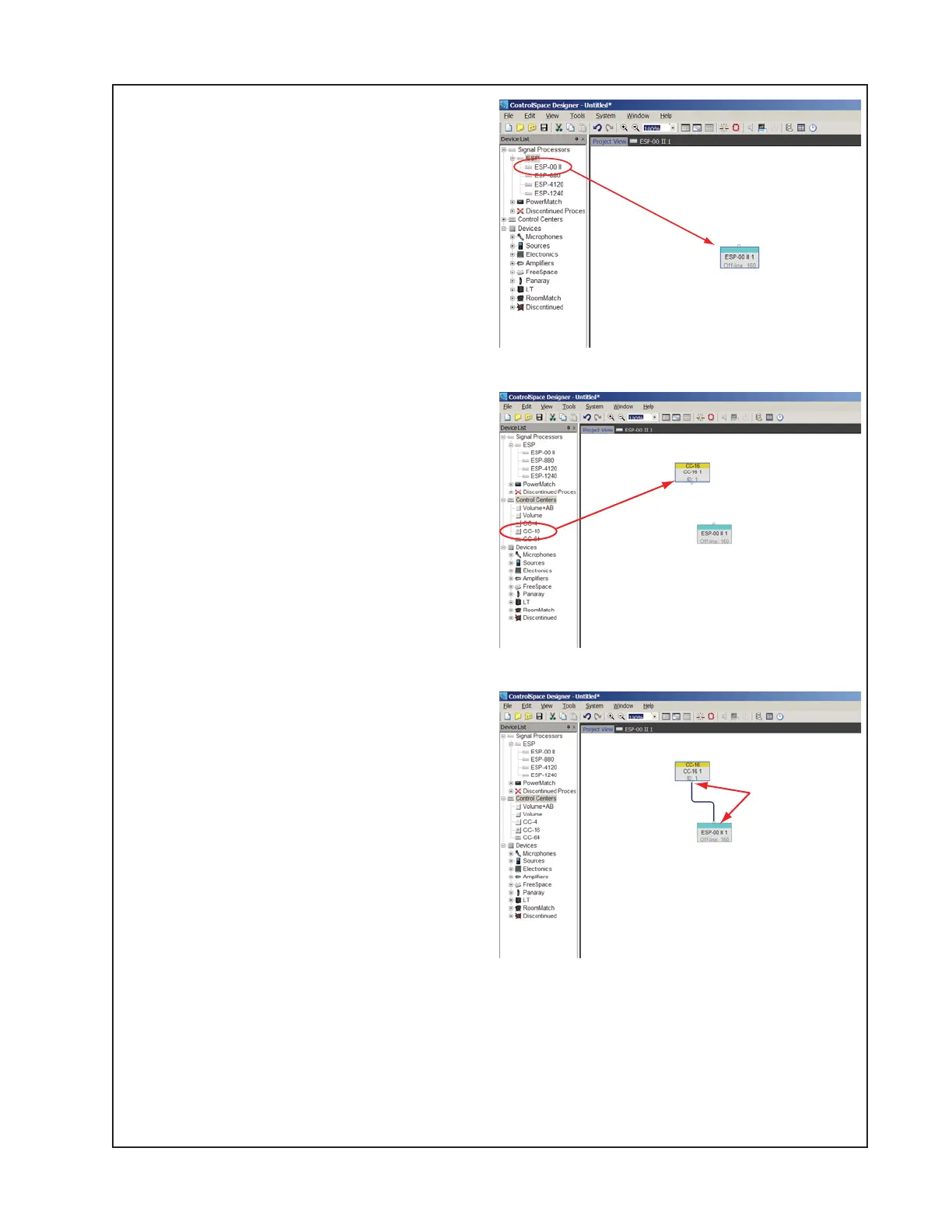

8.3 Create the New design file including
one ESP-00 II and one CC-16. Drag and
Drop the components as shown in Figures
A1 and A2.
8.4 Drag a wire between the CC16 and
ESP-00 II as shown in Figure A3.
Figure A2
Figure A1
Figure A3
Drag a wire from
here to here
To Next Page
