Multi-DM™ User Manual Section 5 - System Components Overview
BMC Document Number: DOC-0009 Rev. 5.2 Page 13
5.3.2 Multi Driver Electronics Rear Panel

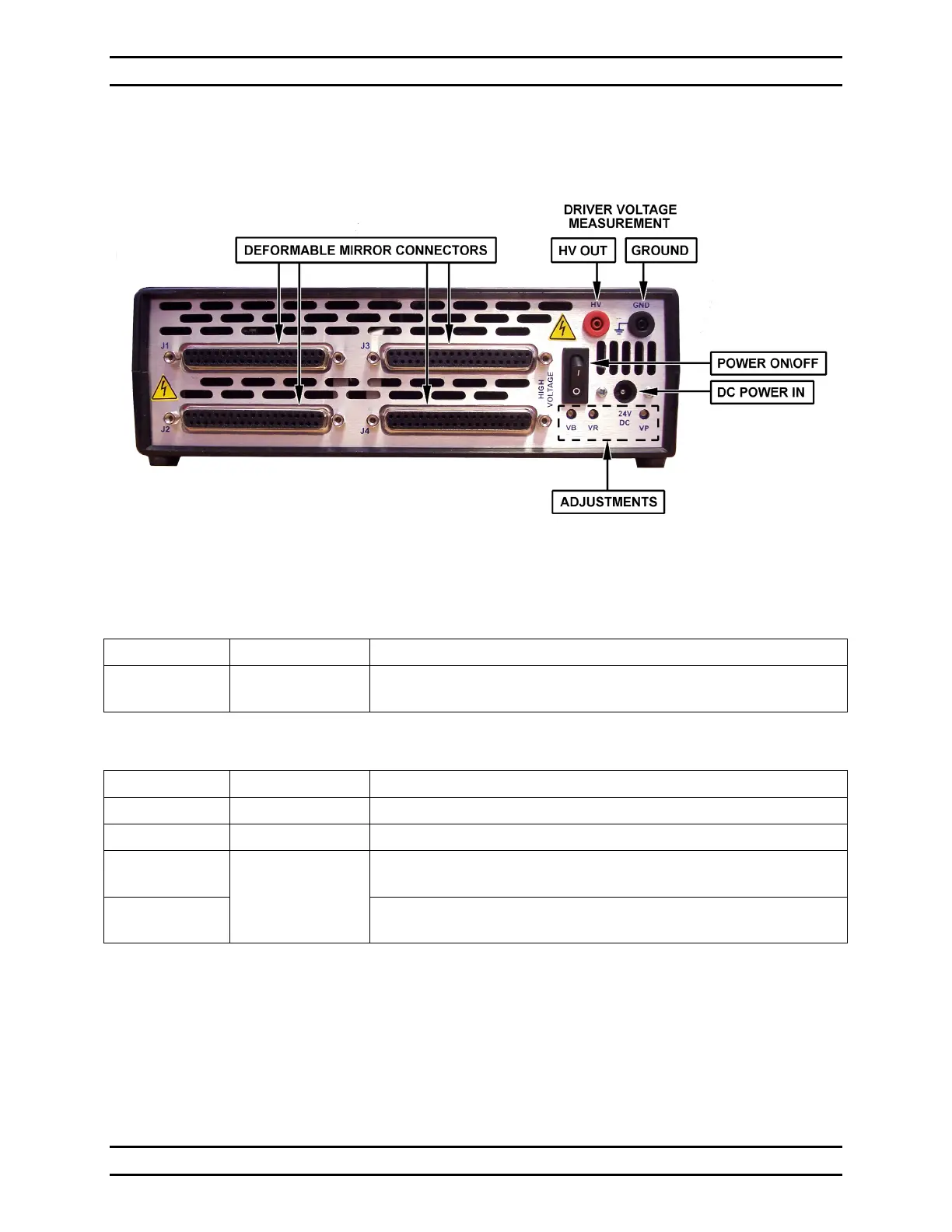

Figure 5 - Rear Panel of Multi Driver
Table 3 - Rear Panel Switches
Label
Type
Function
I O
Toggle
Press I to turn the Multi Driver on
Press O to turn the Multi Driver off
Table 4 - Rear Panel Connections
Label
Type
Function
J1-J4 DC-37 Female Outputs to the Multi-DM.
24VDC 6mm Coax 24VDC input from external power supply.
HV
2mm Safety
Sheathed Jack
High voltage output terminal.
Use to measure Driver maximum voltage.
GND Ground terminal.
Use to measure Driver maximum voltage.
