2.3.5. Options / cables

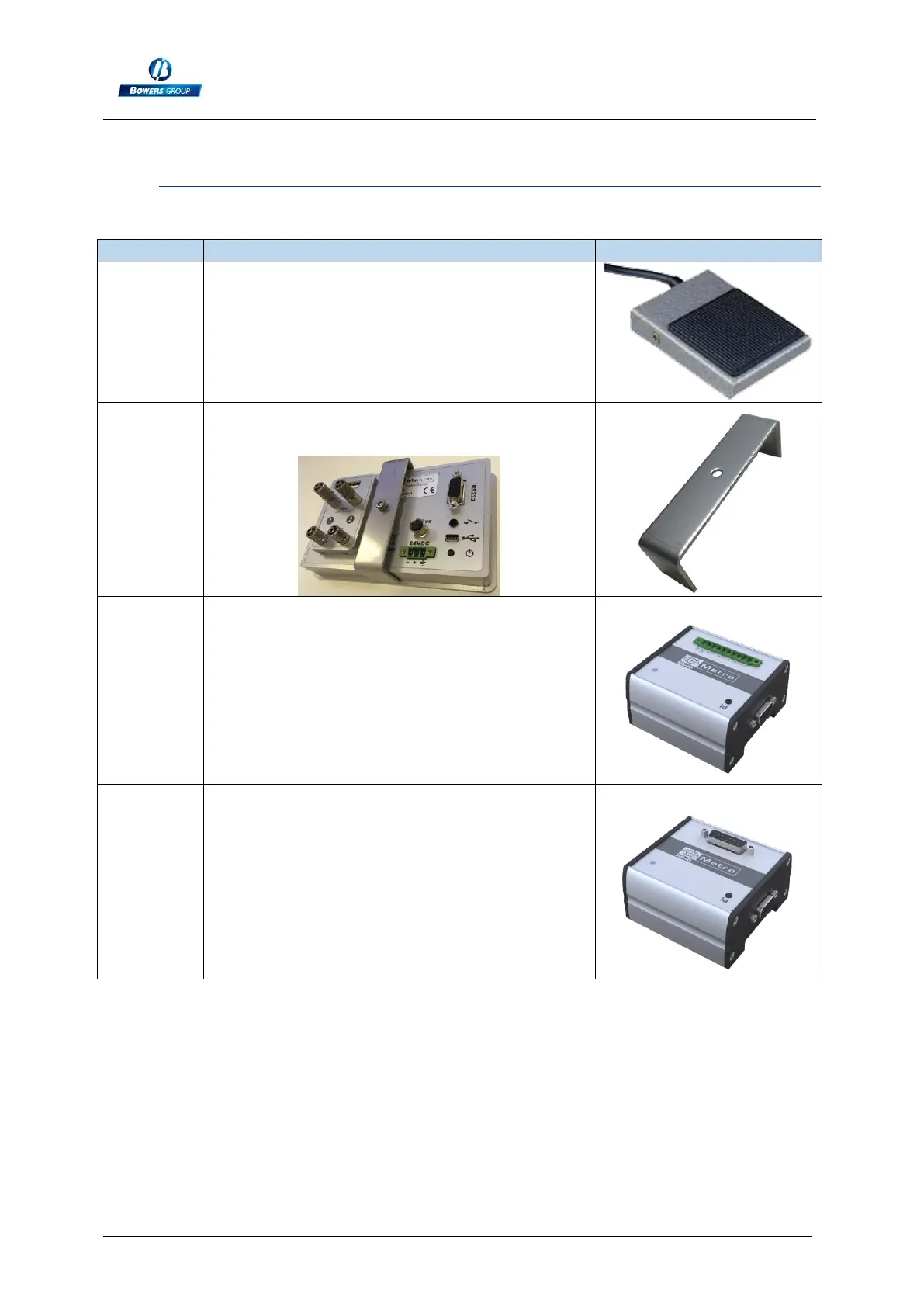

Footswitch :
This footswitch with a robust construction can be
configured in different ways: preset, measurement
transmission, start dynamic measurement etc...
Accessory for panel mounting.
To be installed instead of the stand.
This M-Bus module is fitted with 8 input/outputs
isolated with optocouplers allowing to get additional
functionalities, for example: output for Go/noGo, input
for preset or start dynamic measurement... The M-Bus
modules are mounted on an aluminum profile allowing
to mount them on a standard DIN rail.
Up to 4 modules can be mounted
The optional MB-RL module is
Fitted with 2 independent relays min and max, free of
potential that indicate the position of the measure
according to the part tolerances. The module is also
fitted with 6 inputs allowing
remote control display.
This MB-RL module is wired exactly like the #24136
optional board for Monocote displays. It allows then to
replace a Monocote by a M3 without changing the
machine wiring.
