M1 – M3 Display units
Page 61

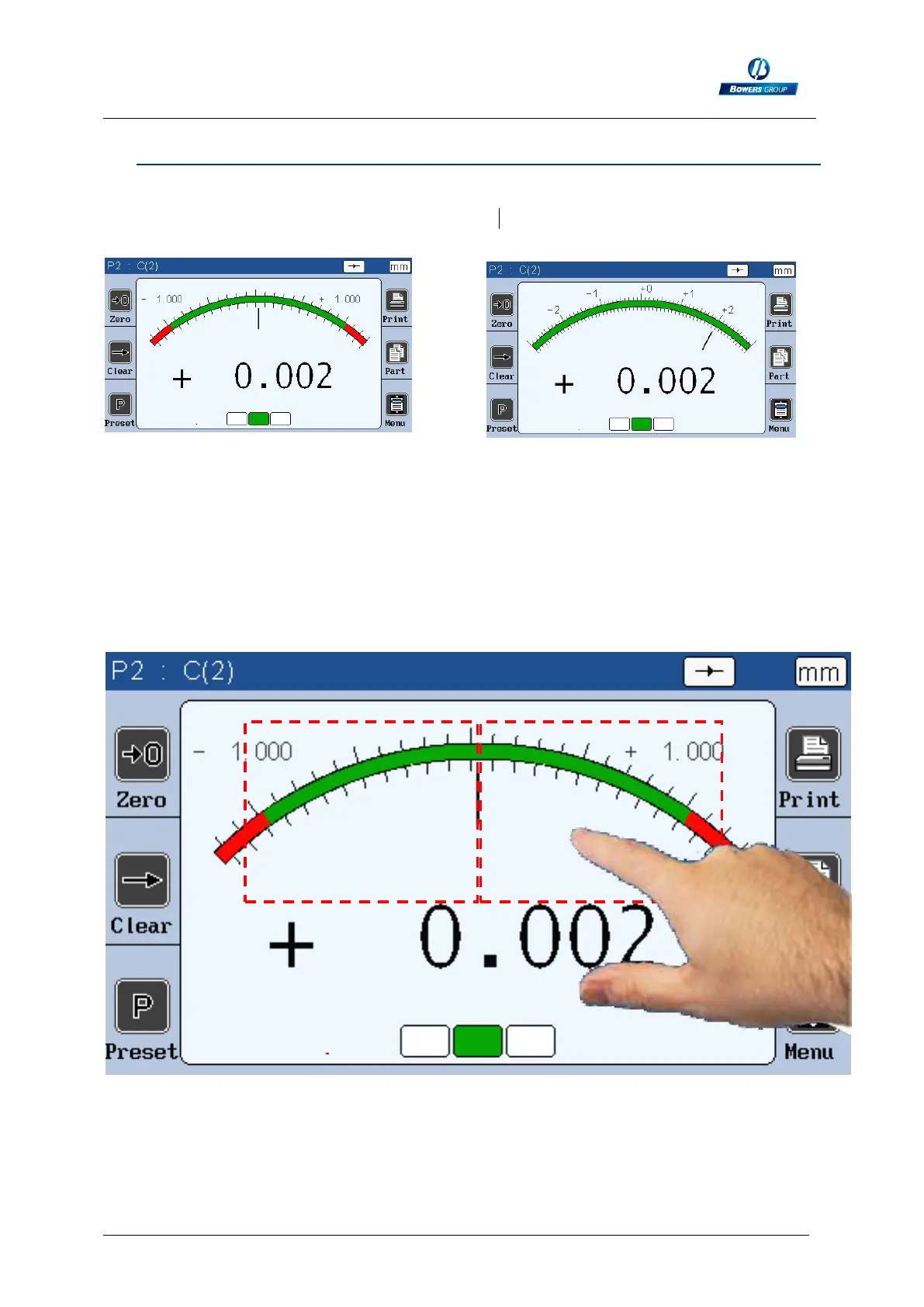

7.2. CHOICE OF THE NEEDLE INDICATOR STYLE
If the M3 is configured with the needle indicator (mode Galva, see chap. 7.2), it is
possible to change manually the type of scale.
Automatic Manual
The automatic needle scale adapts automatically with the part tolerances.
The manual needle has fixed scales and allows to use the +/- option (see chap 5.2)
You can change the scale type by touching the area as on the picture bellow during
2 seconds.
