Cabling with by-pass nozzle (integrated restrictor)
Some air gauges are delivered with a by-pass nozzle (or integrated restrictor). It
means that the restrictor is integrated inside the air gauge itself, and there is no need
to install it on the display. NO RESTRICTOR ON THE DISPLAY.
This configuration allows to have a faster the reaction time and makes the installation
easier by removing the need to choose the adapted restrictor.
If you order a turn key solution at Bowers, it will generally be delivered according to
this principle.

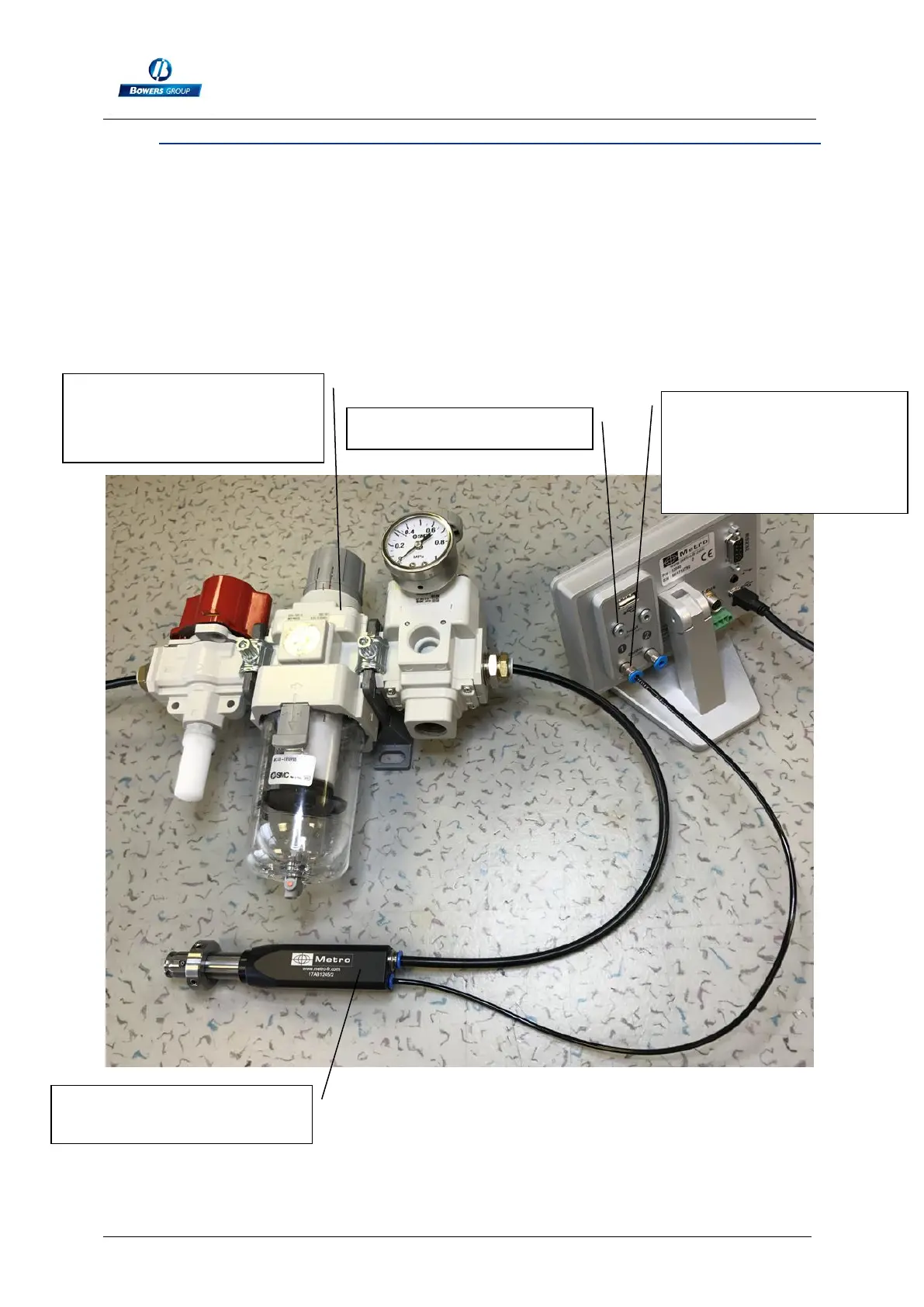

Air gauge with by-pass
nozzle (integrated restrictor)
Regulation unit
ref 55-MBV001 (delivers
3BAR/0.3MPa pressure)
Standard push-in
connector, M5 thread.
Generally, for tube
external diam 3mm (ref
CMP-PNE-014)
Please discuss with Bowers for applications
