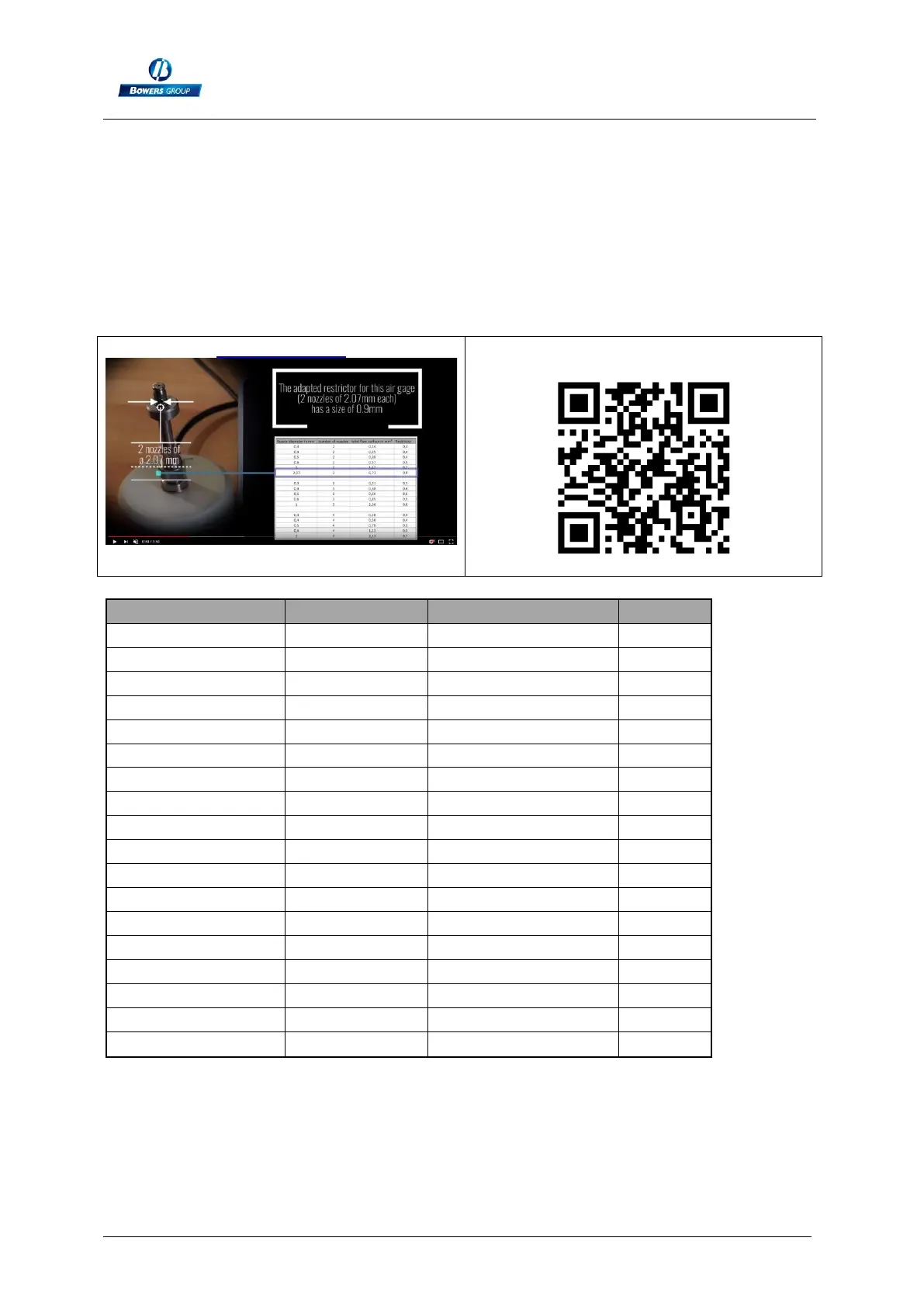

M1 M3 Display Units
Page 16
The following table shows some frequent cases to define which restrictor will be the
most applicable to your application.
If you order a turnkey solution at Bowers, we will deliver the display with the
applicable restrictor. But if you want to use the M1 / M3 display together with your
existing air gauge. Alternative restrictor may be required.
It is advised to contact Bowers for advices or confirmation around this subject.
Check this video for understanding the influence of the restrictor on the
linearity :
link to the video
Or scan the QR code :
Nozzle diameter in mm
number of nozzles
total flow surface in mm²
Restrictor
0,3
2
0,14
0,3
0,4
2
0,25
0,4
0,5
2
0,39
0,4
0,6
2
0,57
0,5
1
2
1,57
0,7
2,07
2
6,73
0,9
0,3
3
0,21
0,3
0,4
3
0,38
0,4
0,5
3
0,59
0,5
0,6
3
0,85
0,5
1
3
2,36
0,7
0,3
4
0,28
0,4
0,4
4
0,50
0,4
0,5
4
0,79
0,5
0,6
4
1,13
0,5
1
4
3,14
0,7
