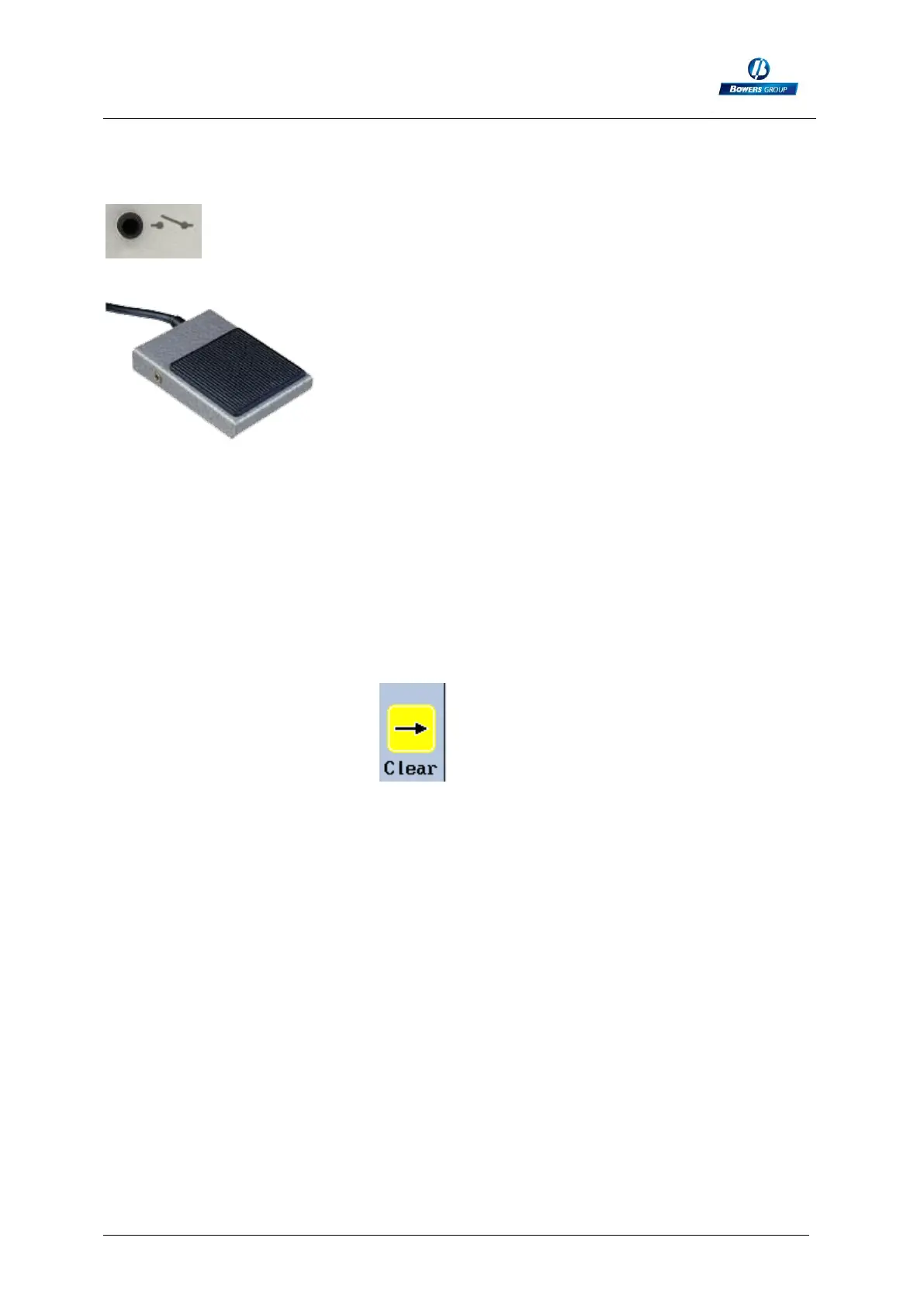

This connector is used to connect the footswitch ref 30-904-4102.
This is a JACK MONO 3.5mm (dry contact)
The footswitch can then be used for several functions: please refer yourself to
chapter 5.4 for further information.
- Transfer the measurement
- Preset
- Start a dynamic measurement
- Zero
- Change the displayed part reference
- Hold (freezes the display) In this case, the button “CLEAR” in the measuring
screen becomes yellow:
