Brewer Science Cee 200X - Writing a Spin Recipe; Entering Data

22
5.3.2 Writing a Spin Recipe

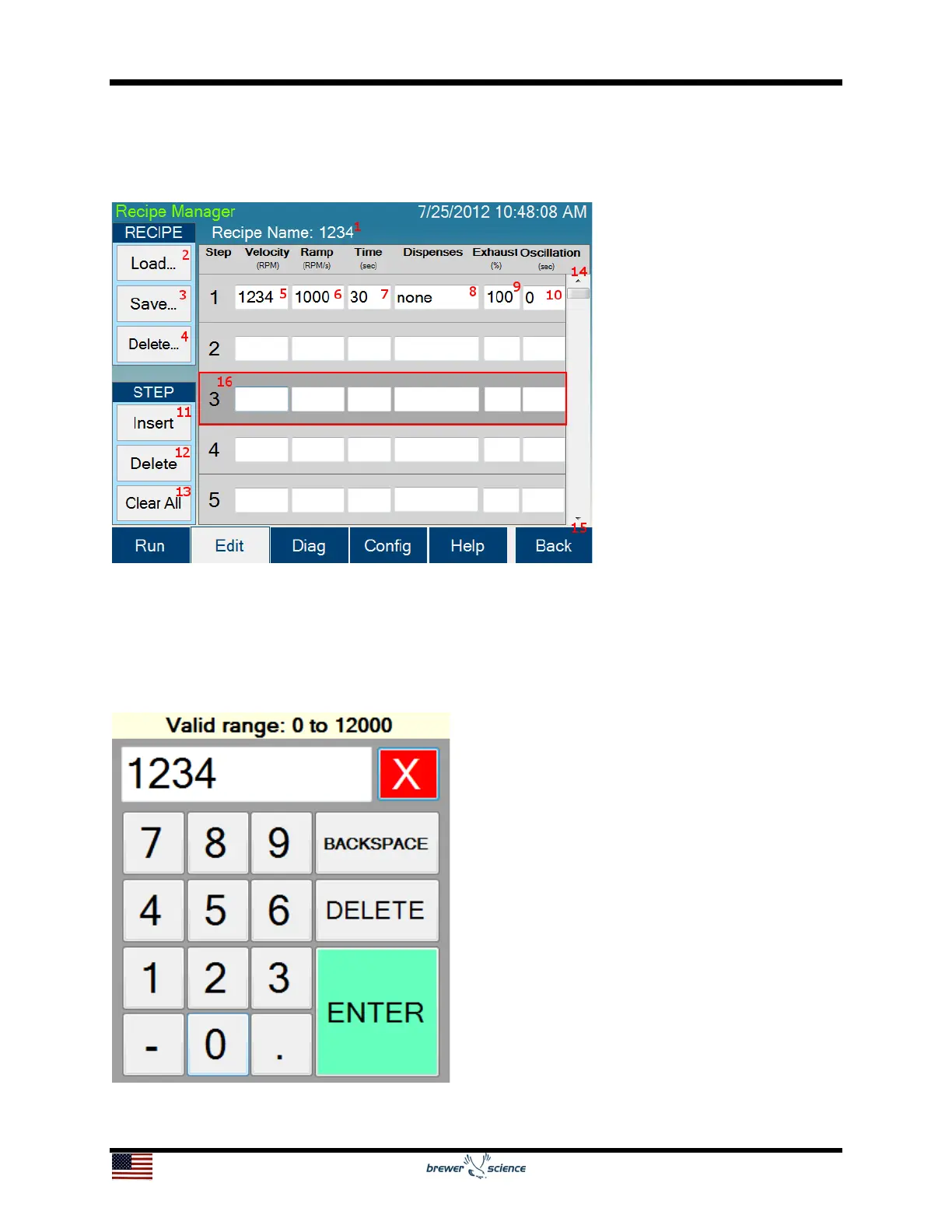

The Spin Recipe Edit screen, shown below, is where spin-coating recipes are entered.
5.3.3 Entering Data
By selecting the Velocity (5), Ramp (6), Time (7), Exhaust (9), or Oscillation (10) boxes,
a numeric pad will appear.
Using the numeric pad, the user can now enter the parameter for the selected step. The
number pad will indicate the valid range for the specific type of value at the top of the
