Timeout: The Timeout controls the period between BPDU
transmissions.
o Fast: The Fast will transmit LACP packets each second.
o Slow: The Slow will wait for 30 seconds before sending a LACP
packet.
Prio: The Prio(ity) controls the priority of the port. If the LACP partner
to form a larger group than is supported by this device then this
parameter will control which ports will be active and which ports will be
in a backup role. Lower number means greater priority.
Save Button: This button must be click to save the new settings
before moving to another page.
Reset Button: If configuration has been applied but has not been
saved, clicking this button will reset the page back to previous
settings.
Example of LACP Configuration:
Creates a 2Gbps bond
Ports 4 and 5 are bonded via LACP group using specific key 7000
Ports 7 & 8 are bonded via a separate LACP group using specific
key 5000
NOTE: When using LACP, the member ports cannot also be members
of a Static Aggregation group.

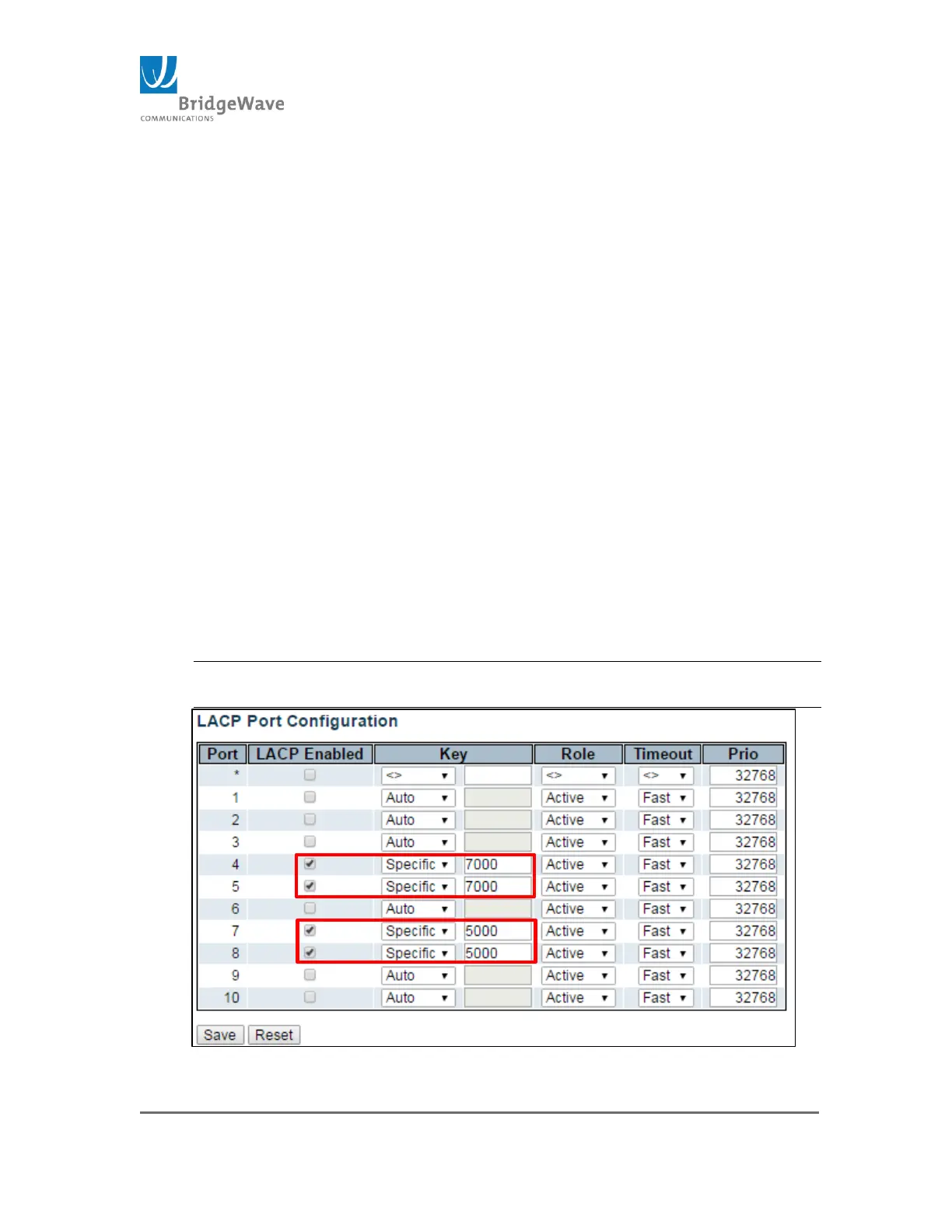

Figure 46: Example of LACP Configuration
