Test Ignition Module - Identification NO. 19200-87801
The following test will be made with the meter in the Ω position.

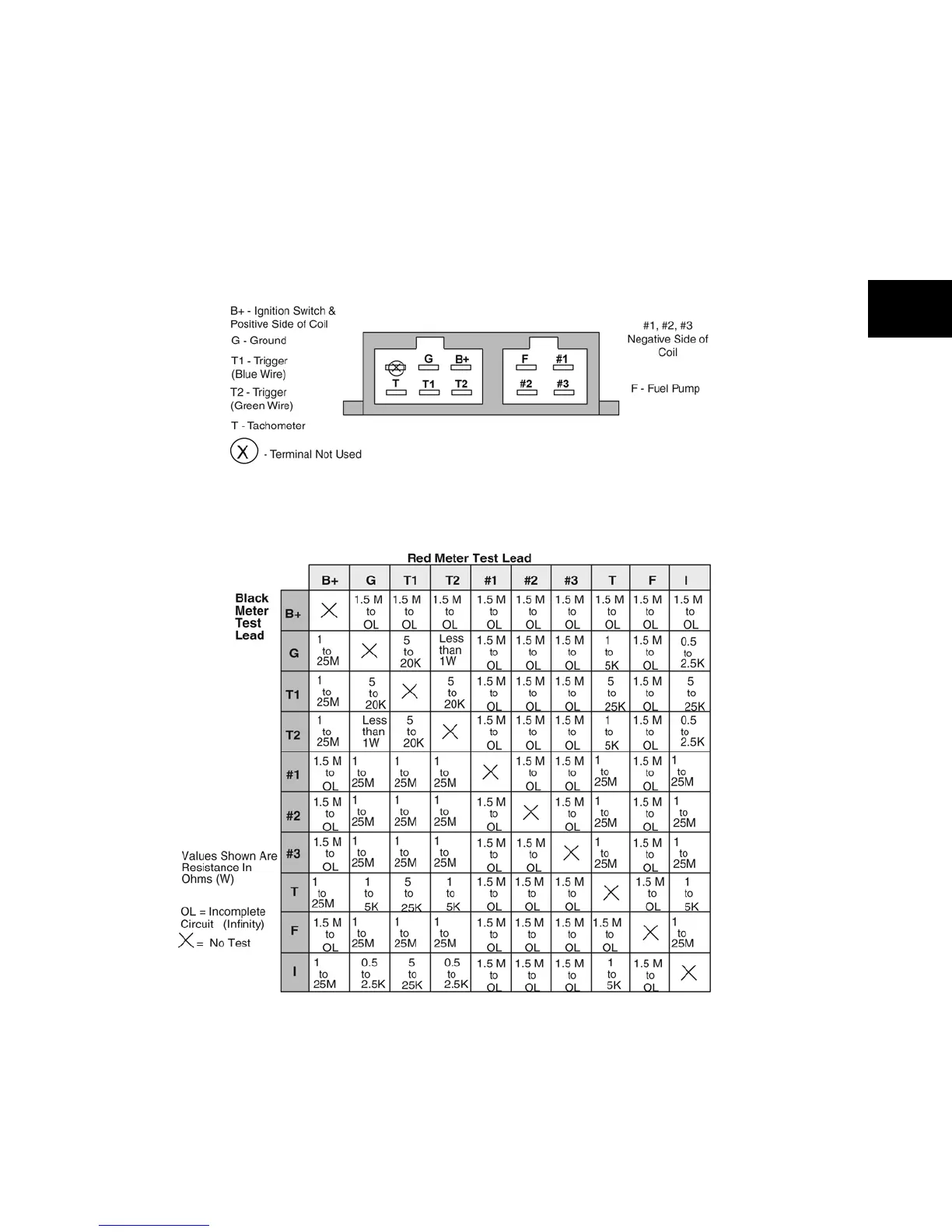

The ignition module test is performed by measuring the resistance (Ω) between the terminals shown in
Figure 5. Specifications are shown in the chart below.
Attach red meter test lead to the terminal shown at the top of the column. Attach the black test lead to the
terminal shown in the vertical column below and note reading. Then move the black test lead to the next
terminal below. Proceed until all the terminals in the vertical column have been tested. Now move the red
test lead to the terminal shown at the top of the next vertical column. Proceed until all terminals have been
tested.
Figure 5
