73
10

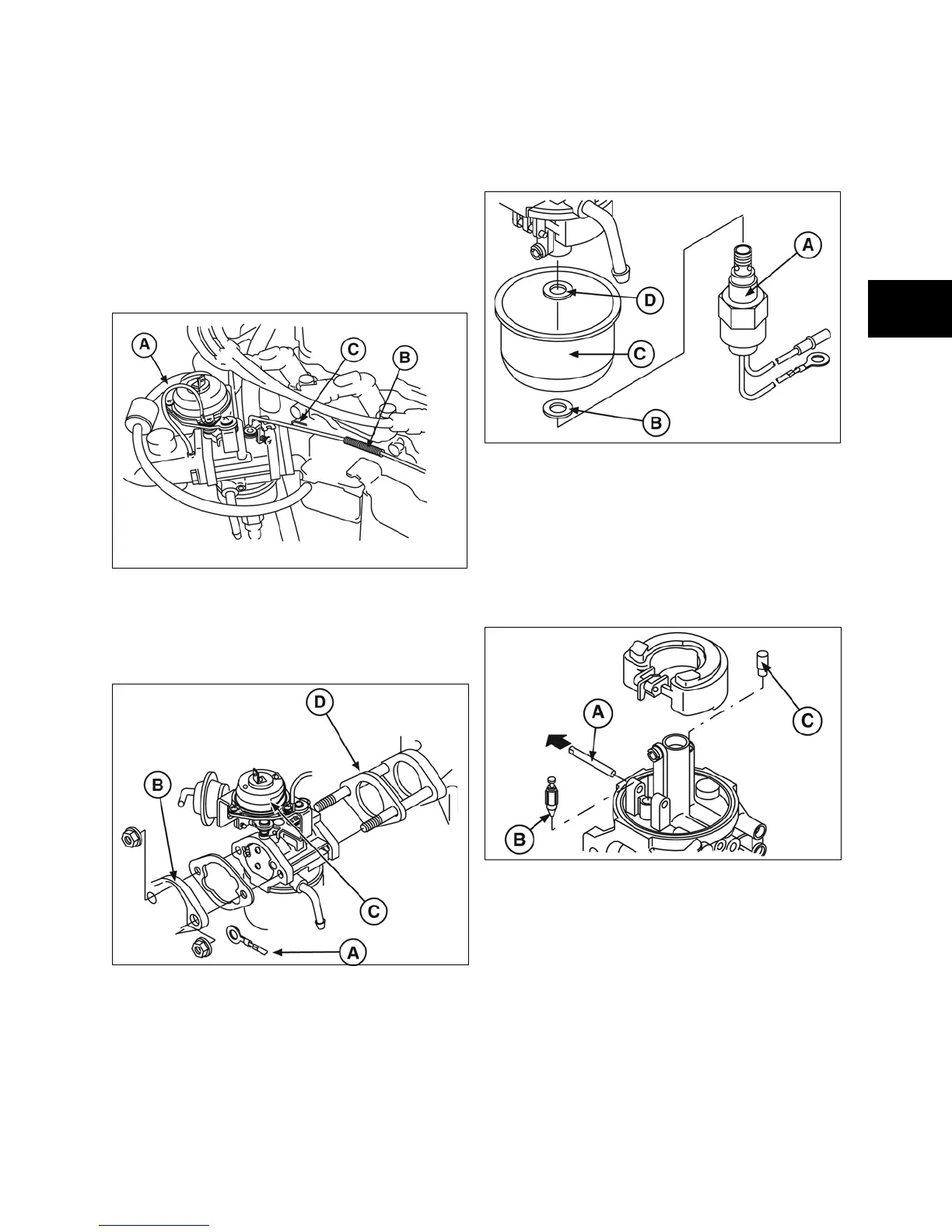

Automatic Choke Carburetor
Remove Carburetor
1. Disconnect fuel line and remove air cleaner
tube from carburetor air horn. Disconnect
vacuum line (A, Figure 26) from vacuum
choke break. Disconnect wires from fuel shut
off solenoid and automatic choke.
2. Unhook governor link spring (B) from throttle
lever and disconnect governor link (C).
Figure 26
3. Remove two nuts and ground wire
(A, Figure 27) from solenoid, air horn (B),
carburetor (C), and insulator (D). Discard
gaskets.
Figure 27
Disassemble Carburetor
1. Remove fuel shut off solenoid (A, Figure 28)
and gasket (B). Remove float bowl (C) and
bowl shim gasket (D).
Figure 28
NOTE: The float hinge pin (A, Figure 29) is swaged
in one side. When removing, drive hinge pin from
side opposite swage.
2. Drive out float hinge pin with a small punch.
Remove float and fuel inlet valve (B).
3. Remove idle passage plug (C).
Figure 29
4. Remove rubber float bowl gasket
(A, Figure 30).
