31
3

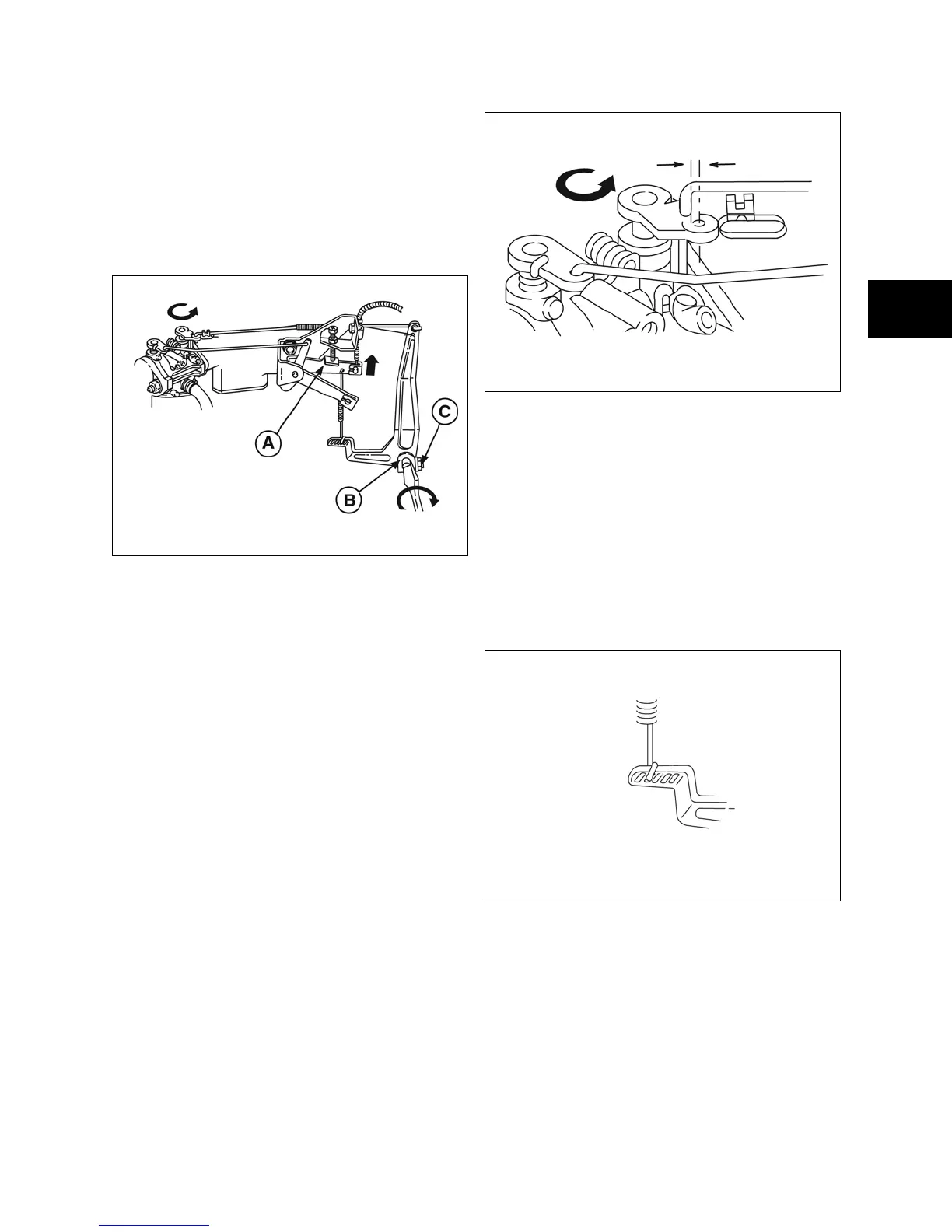

Adjust Governor
1. Move governor control lever (A, Figure 26)
up to end of travel and hold in this position
(throttle wide open).
2. Rotate governor shaft (B) clockwise to end of
travel.
3. Torque governor nut (C) to value listed in
Section 14 - Engine Specifications.
Figure 26
Troubleshooting
If engine hunts at top no load speed, check
governor adjustment as follows:
1. Stop engine.
2. Move equipment control to “FAST” position.
3. Disconnect governor link spring and link.
4. Rotate throttle wide open position.
NOTE: Position of governor link must be within 1
mm of center of hole in throttle (Figure 27).
Figure 27
• If dimension is greater than 1 mm, perform
governor adjustment.
• If engine continues to hunt at top no load
speed, decrease governor sensitivity by
moving governor spring to next hole on
governor lever (Figure 28).
NOTE: Moving spring away from governor shaft
pivot point decreases sensitivity. Moving spring
towards governor shaft pivot point increases
sensitivity.
Figure 28
