10
2
2

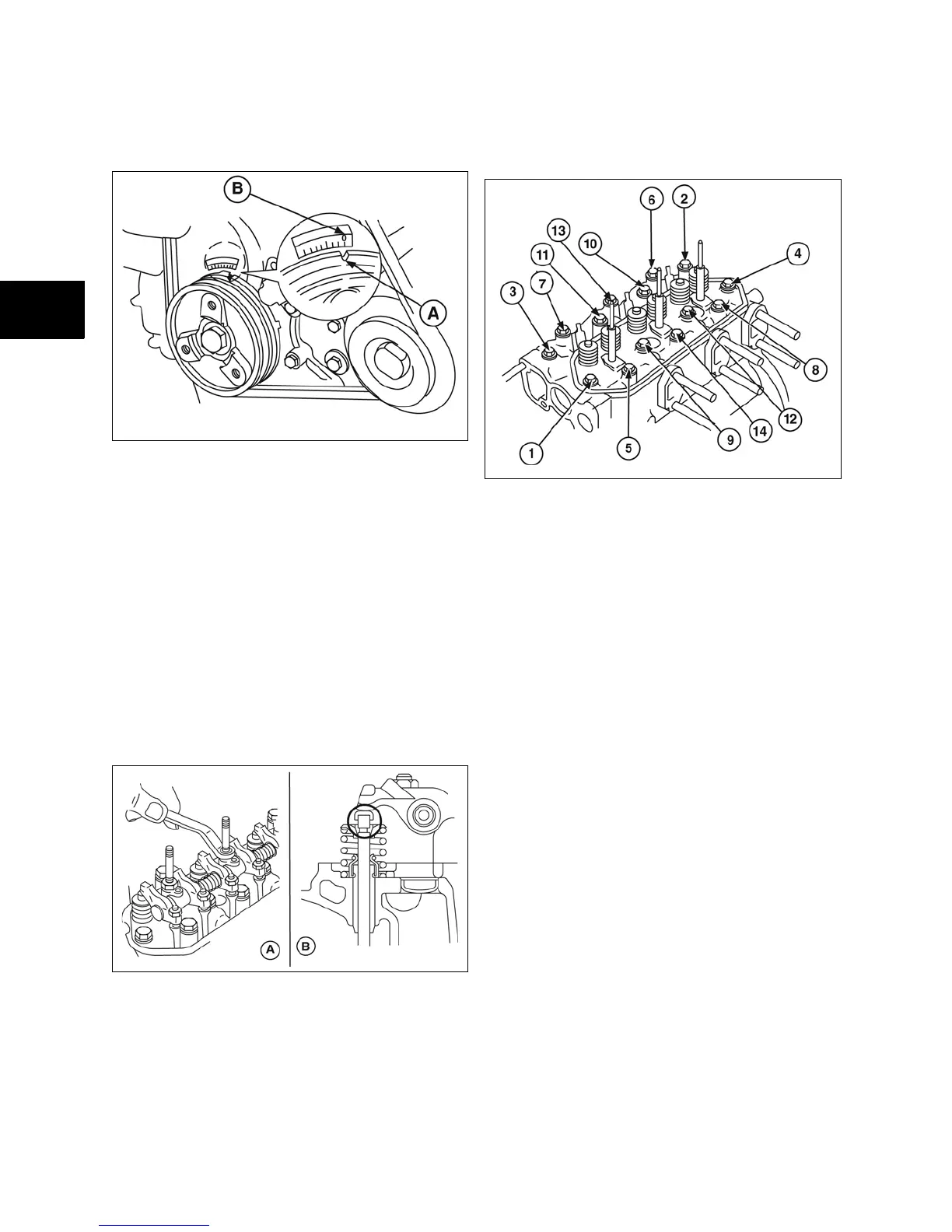

9. Rotate crankshaft pulley until timing mark on
pulley is aligned with reference point (A,
Figure 6) on timing cover (B).
Figure 6
• If intake and exhaust valves have
clearance, the Number 1 piston is at TDC
(compression stroke).
• If intake and exhaust valves do not have
clearance, turn crankshaft pulley one
complete revolution. Valves will then have
clearance.
10. Remove rocker arm assembly (A, Figure 7)
and push rods.
11. Remove valve stem caps (B).
NOTE: Mark push rods so that they may be
reassembled in their original position.
Figure 7
Disassemble Cylinder Head
1. Loosen cylinder head bolts in the order
shown (Figure 8).
Figure 8
