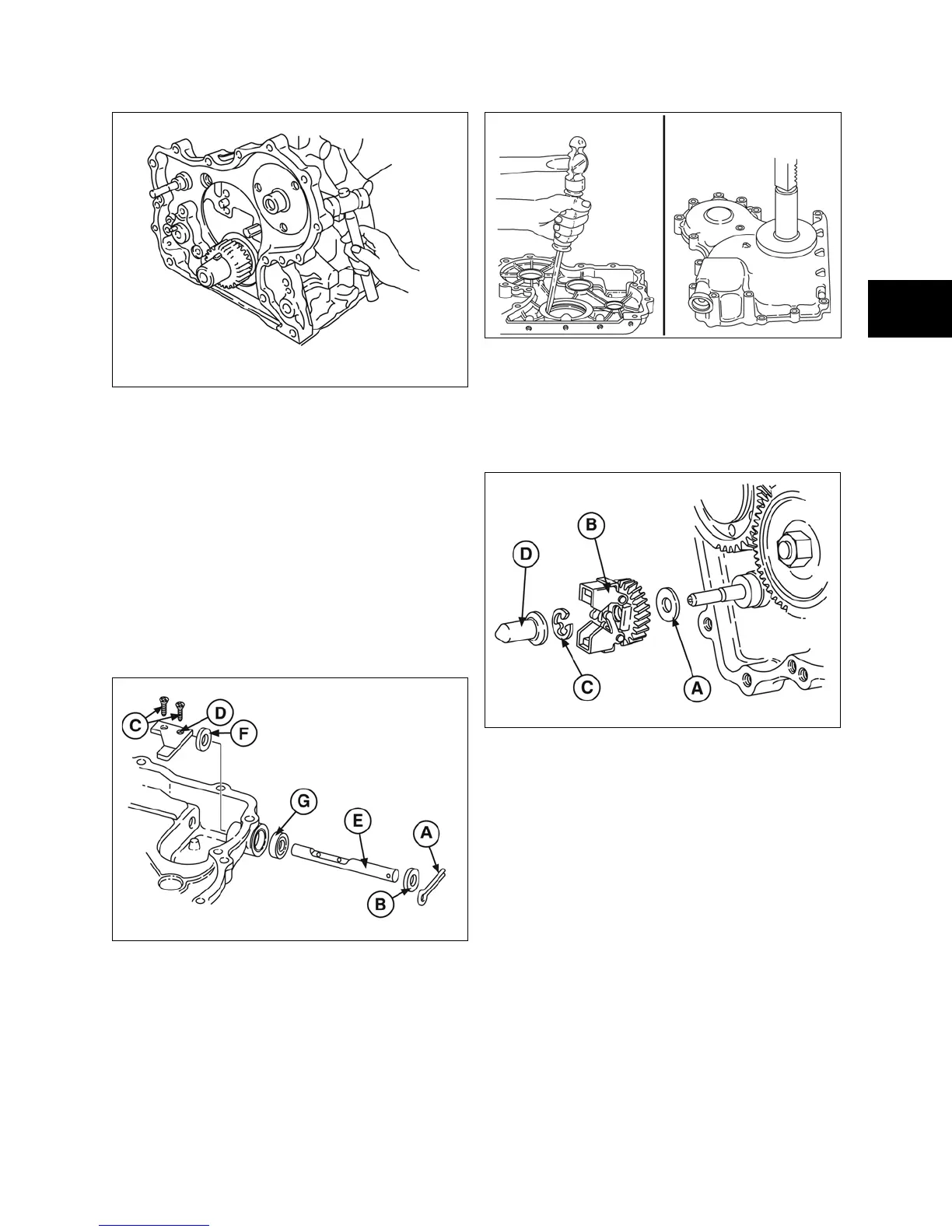

Figure 10
Disassemble Governor Shaft Assembly
1. Remove cotter pin (A, Figure 11) and washer
(B). Discard cotter pin.
2. Remove screws (C) and governor paddle (D)
using Torx® Driver #19445. Discard screws.
NOTE: Governor paddle screws are Torx® tamper
proof screws.
3. Remove shaft (E) and spacer (F).
4. Remove and discard oil seal (G).
Figure 11
Replace Timing Gear Cover Oil Seal
1. Drive out oil seal.
2. Use Seal Driver #19423 to install new oil seal
(Figure 12).
Figure 12
Assemble Governor Shaft Assembly
1. Install thrust washer (A, Figure 13) on shaft
followed by the governor gear (B), E-ring
(C), and governor cup (D).
Figure 13
NOTE: Lubricate governor shaft with engine oil
before installing.
2. Install new oil seal (A, Figure 14) with seal
lips in.
3. Install governor shaft (B) and spacer (C).
4. Install governor paddle (D) using new screws
(E). Use Torx® Driver #19445. Torque to
values listed in Section 14 - Engine
Specifications.
5. Install washer (F) and new cotter pin (G).
NOTE: Governor shaft must rotate freely.
